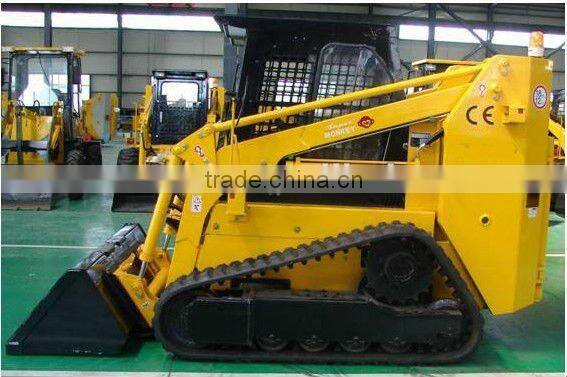

Skid steer loader TS801.Good quality,low price
2.Professional service,imported hydraulic parts
3.Rated load:1200kg
TS80
Specifications
Rated operatingcapacity(kg) 1200/1500
Tipping load(kg) 2400/3000
Bucket capacity(m3) 0.50/0.70
Operationg weight(kg) 4000/4280
Max. travel speed(km/h) 8/16
Hydraulic pump flow(L/min) 75
Fuel tank capacity(L) 70
Tires 12-16-15 NHS
Overall dimensions(mm) 3385*1850*2025
Dimensions
Height at maximum extension(mm) 2920
Length of undercarriage 1938
Width with bucket(mm) 1850
Ground clearance(mm) 200/205
Dump angle 40°
Track width 320
Engine
Maker/Model WEICHAI DEUTZ
Net power 80hp/2500rpm----100hp/2500rpm
Type :4 Cylinder in-line, Water cooled,4 stroke,Dieselengine
Displacement(L) 4.2
Standard
Open-type operator cab
Standard bucket
Hydraulic joystick controls
Auxiliary hydraulic couplers
Optional
close-type operator cab
Cab fitted with a heater as standard
Attachments
Backhoe,Breaker,Angle blade,Auger,Sweeper,Pallet fork,Combinition bucket,Mower,Asphalt cutter,and More
