Home > Products > Concrete machinery > truck mounted concrete mixer

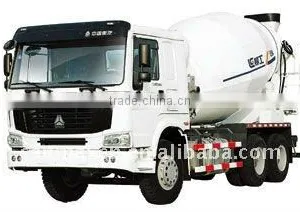

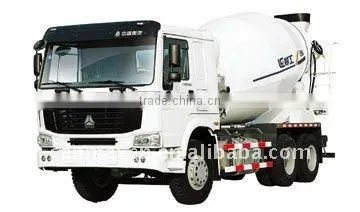

truck mounted concrete mixer
- Any port of China
- T/T
You May Like
Product Details
| Place of Origin | Shanghai, China | Brand Name | CANMAX | |
| Model Number | Hold YZH5251GJBDF mixer truck |
Product Description
Specifications
1.Different chasis for option.2.Qualified products and competitive price.
Hold YZH5251GJBDF mixer truck
Specification | YZH5251GJBDF | |
Notice batch | 212 | |
Dimensions | Long | 9000 |
Wide | 2500 | |
High | 3850 | |
Chassis Model | DFL5250GJBA | |
Engine Model | L340 30 | |
Rated Power (kw) | 250 | |
Emission stage | State III | |
Wheelbase (mm) | 3800 +1350 | |
Maximum speed (km / h) | 80 | |
Minimum turning diameter (m) | 18 | |
Transmission | 9 forward, mechanical manual | |
Drive Type | 6×4 6 × 4 | |
Steering | TAS85 hydraulic power | |
Brake in the form | Pneumatic double-loop | |
Tires | 11.00-20 | |
Total weight (kg) | 25000 | |
Vehicle weight (kg) | 12800 | |
Load weight (kg) | 12070 | |
Geometric volume (m 3) | 14.6 | |
Effective volume (m 3) | 9 | |
Stirring volume (m 3) | 5.2 * | |
Feed rate (m 3 / min) | more than 3 | |
Discharge rate (m 3 / min) | more than 2.7 | |
Residual rate (%) | less than0.5 | |
Mix drum rotation speed (r / min) | 0 ~ 18 | |
Mixing tube angle (°) | 13 | |
Water tank capacity (L) | 450 | |
Water supply | Pneumatic | |
Hydraulic pump | U.S. USA / imported parts | |
Hydraulic Motor | ||
Gearbox | ||
Hydraulic circuit | Closed loop | |
