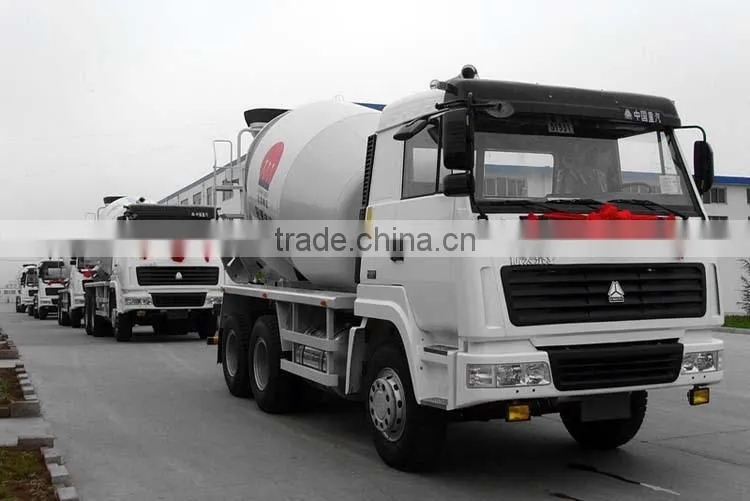

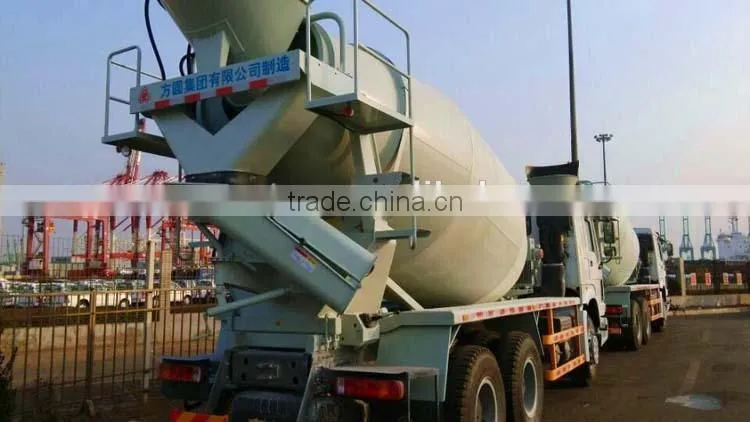

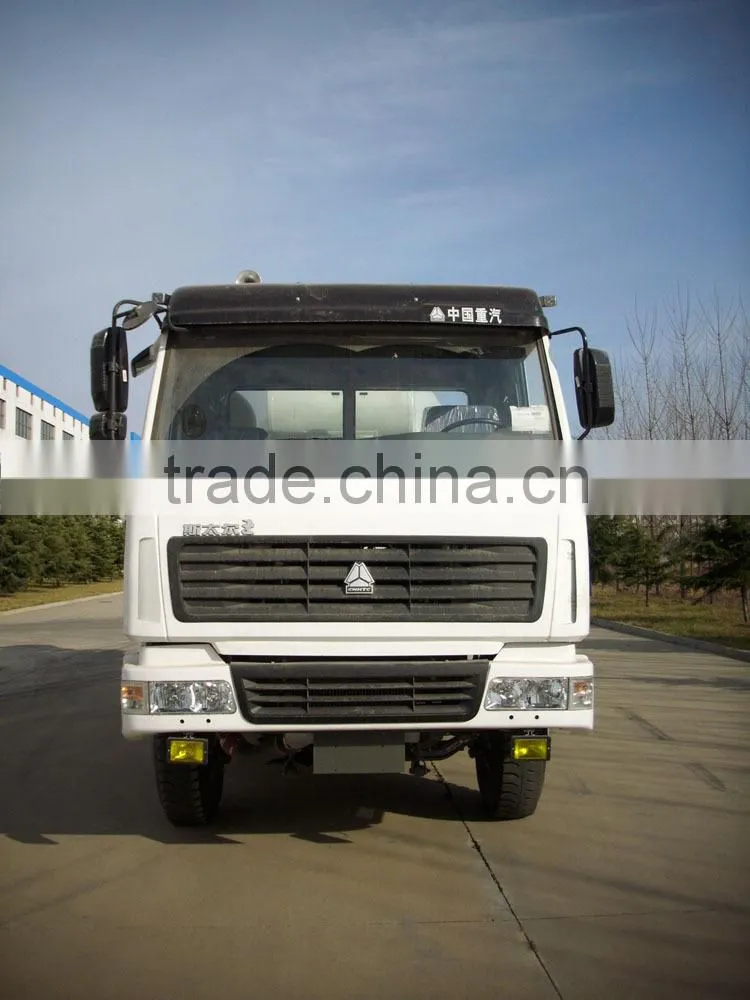

10m3 concrete truck mixer
Product Name |
Dongfeng 10m3 (Euro III) |
||
Model |
HDJ5254GJBDF |
||
Load weight (kg) |
11765 (11830) |
||
Gross vehicle weight (kg) |
25000 |
||
Dimensions |
Length mm |
9217 |
|
Overall width mm |
2500 |
||
Overall height mm |
3847 |
||
Mixing tube performance parameters |
Mixing tube geometry volume m ³ |
15.64 |
|
Effective volume m ³ mixing tube |
10 |
||
Fill Rate% |
64 |
||
Feed speed m ³ / min |
≥ 3 |
||
Discharging speed m ³ / min |
≥ 2 |
||
Residual rate% |
≤ 1.0 |
||
Slump mm |
50 ~ 210 |
||
Mixing drum speed (rpm) |
0 ~ 17 |
||
Mixing tube angle º |
13 º |
||
Drive system |
Gear / pump |
Imported parts |
|
Hydraulic circuit |
Closed loop |
||
Water supply system |
Water tank capacity L / water supply |
500 / Electric Water Pump |
|
Vehicle performance and parameters |
Wheelbase mm |
3650 +1350 |
|
Maximum speed km / h |
80 |
||
Minimum turning diameter m |
16.5 |
||
Clutch |
Diaphragm pull |
||
Transmission |
9 forward, mechanical manual |
||
Drive Type |
6 × 4 |
||
Steering |
Power Steering |
||
Brake |
Air pressure of double loop Pneumatic double-circuit Air pressure of double loop |
||
Tires |
11.00-20/11.00R20 |
||
Chassis |
DFL5250GJBA |
||
Engine parameters |
Model |
ISLE34030 ISLE32530 ISLE37530 (Cummins Cummins) |
|
Type |
Air-cooled diesel engine electronic control |
||
Number of cylinders and arrangement |
Vertical 6-cyl. Inline six-cylinder Vertical 6-cyl. |
||
Total displacement L / kW |
8.9/250 8.9/239 8.9/275 |
||
