Specifications
1. ZOOMLION 42M Truck-mounted Concrete Pump2. Max. pumping height 41.6m
3. Standard of the exhaust emission:EURO 3

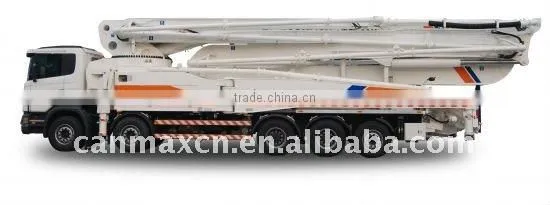

ZOOMLION 42M Truck-mounted Concrete Pump
Model |
ZLJ5330THB |
ZLJ5331THB |
|
|
Pumping system |
Max. theo. outputm3/h |
120 |
120 |
Max. output pressure of the concrete Mpa |
6.5 |
6.5 |
|
Rated working pressureMpa |
32 |
32 |
|
min-1 Pumping frequency |
22 |
22 |
|
Hopper capacityL |
550 |
550 |
|
Feeding heightmm |
1540 |
1540 |
|
Mode of the hydraulic system |
Closed/open |
Closed/open |
|
Mode of the distribution valve |
S valve |
S valve |
|
Cylinder diameter×strokemm |
130×2100 |
130×2100 |
|
Cylinder diameter×strokemm |
230×2100 |
230×2100 |
|
Cooling of the hydraulic oil |
Air-cooled |
Air-cooled |
|
Recommended collapsed slumpcm |
12~23 |
12~23 |
|
Max. dimension of the aggregatesmm |
40 |
40 |
|
booms |
Max. pumping heightm |
41.6 |
41.6 |
Max. pumping radiusm |
37.6 |
37.6 |
|
Max. pumping depthm |
29.5 |
29.5 |
|
Slewing angle |
365° |
365° |
|
Number of the booms section |
5 |
5 |
|
Length of each boommm |
8150/7220/7270/7480/7480 |
8150/7220/7270/7480/7480 |
|
Angle of unfolding the booms |
90°/180°/180°/240°/235° |
90°/180°/180°/240°/235° |
|
Diameter of the delivery pipemm |
125 |
125 |
|
Length of the end hosemm |
3000 |
3000 |
|
Chassis and whole vehicle |
Chassis model |
FM400 |
Actros 3341 |
Drive mode |
6×4 |
6×4 |
|
wheelbasemm |
4900+1370 |
4500+1350 |
|
Wheel gauge (front/rear)mm |
2019/1834 |
2034/1804 |
|
Modle of the tyre |
12.00R20 |
315/80R22.5 |
|
Modle of the engine |
D13 |
OM501LA.3/17 |
|
Max. power of the enginekW/(r/min) |
294/1400~1800 |
300/1800 |
|
Max. torque of the engineN.m/(r/min) |
2000/1050~1400 |
2000/1080 |
|
Displacement of the enginecc |
12800 |
11946 |
|
Type of the fuel |
Diesel |
Diesel |
|
Capacity of the fuel tank L |
410Aluminum |
400 |
|
Standard of the exhaust emission |
EURO3 |
EURO3 |
|
Max. speed of the whole vehiclekm/h |
85 |
85 |
|
Mass of the whole vehiclekg |
33000 |
32700 |
|
Overall dimension of the whole vehicle (length×width×height)mm |
11442×2500×4000 |
11720×2500×4000 |
|
others |
Type of lubrication |
Auto lubrication of energy-saving type |
Auto lubrication of energy-saving type |
Capacity of the hydraulic oil tank L |
650 |
650 |
|
Type of control |
manual+ remote control |
manual+ remote control |
|
Max. pressure of the water tankMpa |
4 |
4 |
|
Capacity of the water tankL |
450 |
450 |
|
Mode of cleaning the concrete pipes |
Water washing/dry cleaning |
Water washing/dry cleaning |
|
