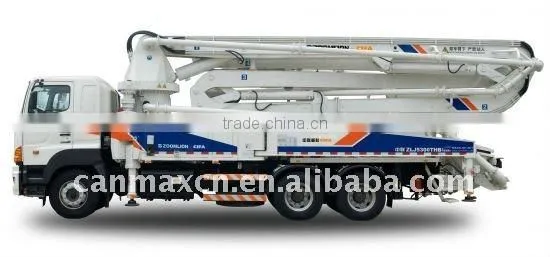

ZOOMLION 37M Truck-mounted Concrete Pump

Name: ZOOMLION 37M Truck-mounted Concrete Pump
Brand: ZOOMLION
SKU: 141324330
Availability: InStock

US$ 256,000 - 464,000 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Shanghai, China

Brand Name:

ZOOMLION

Shanghai Canmax Electronic And Mechanical Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Any port of China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shanghai, China

Brand Name ZOOMLION

Model Number 37M Truck-mounted Concrete Pump

Specifications

1. ZOOMLION 37M Truck-mounted Concrete Pump
2. High hopper capacity
3. Isuzu chasis

ZOOMLION 37M Truck-mounted Concrete Pump

model		ZLJ5281THB125-37	ZLJ5292/3THB125-37	ZLJ5294/5THB125-37
Pumping system	Max. theo. outputm³/h	120	120	120
	Max. output pressure of the concreteMpa	6.5	6.5	6.5
	Rated working pressureMpa	32	32	32
	min^-1 Pumping frequency	22	22	22
	Hopper capacityL	550	550	550
	Feeding heightmm	1540	1540	1540
	Mode of the hydraulic system	closed/open	closed/open	closed/open
	Mode of the distribution valve	S valve	S valve	S valve
	Cylinder diameter×strokemm	130×2100	130×2100	130×2100
	Cylinder diameter×strokemm	230×2100	230×2100	230×2100
	Cooling of the hydraulic oil	Air-cooled	Air-cooled	Air-cooled
	Recommended collapsed slumpcm	12~23	12~23	12~23
	Max. dimension of the aggregatesmm	40	40	40

Max. pumping heightm	36.6	36.6	36.6
Max. pumping radiusm	32.6	32.6	32.6
Max. pumping depthm	24.9	24.9	24.9
Slewing angle	365°	365°	365°
Number of the booms section	4	4	4
Length of each boommm	8650/7860/7980/8080	8650/7860/7980/8080	8650/7860/7980/8080
Angle of unfolding the booms	100°/180°/180°/270°	100°/180°/180°/270°	100°/180°/180°/270°
Diameter of the delivery pipemm	125	125	125
Length of the end hosemm	3000	3000	3000
Chassis and whole vehicle	Chassis model	CYZ51Q	Actros 3340/3341	FM 400/JHW5330F49B4E
	Drive mode	6×4	6×4	6×4
	wheelbasemm	4595+1310	4500+1350	4900+1370
	Wheel gauge (front/rear)mm	2065/1850	2034/1804	2019/1834
	Modle of the tyre	295/80R22.5	315/80R22.5	12.00R20
	Modle of the engine	6WF1A	OM501LA	D13
	Max. power of the enginekW/(r/min)	265/1800	290/1800 or 300/1800	294/1400~1800
	Max. torque of the engineN.m/(r/min)	1422/1100	1850/1080 or 2000/1080	2000/1050~1400
	Displacement of the enginecc	14256	11946	12800
	Type of the fuel	diesel	diesel	diesel
	Capacity of the fuel tankL	380 aluminum	400	410 aluminum
	Standard of the exhaust emission	EURO3	EURO2/ EURO3	EURO3
	Max. speed of the whole vehiclekm/h	85	85	≥80
	Mass of the whole vehiclekg	28190	28830	28850
	Overall dimension of the whole vehicle (length×width×height)mm	11650×2500×3870	11690×2500×3800	11910×2500×3845
