Specifications
1. ZOOMLION 52M Truck-mounted Concrete Pump2. Max. pumping height: 51.2m
3. Max. pumping depth :35.8m
4. Isuzu Chasis

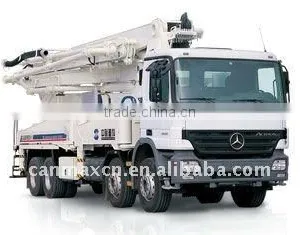

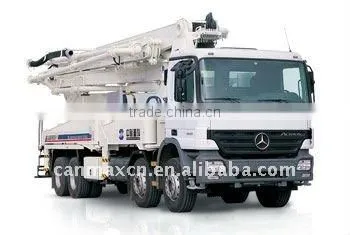

ZOOMLION 52M Truck-mounted Concrete Pump
model |
ZLJ5433THB |
|
|
Pumping system |
Max. theo. output m3/h |
165/120 |
Max. output pressure of the concreteMpa |
12/7.5 |
|
Rated working pressureMpa |
32 |
|
min-1 Pumping frequency |
25/16 |
|
Hopper capacityL |
560 |
|
Feeding heightmm |
1540 |
|
Mode of the hydraulic system |
closed |
|
Mode of the distribution valve |
S valve |
|
Cylinder diameter×strokemm |
160×100×2100 |
|
Cylinder diameter×strokemm |
260×2100 |
|
Cooling of the hydraulic oil |
Air-cooled |
|
Recommended collapsed slump cm |
12~23 |
|
Max. dimension of the aggregates mm |
40 |
|
booms |
Max. pumping heightm |
51.2 |
Max. pumping radiusm |
46.2 |
|
Max. pumping depthm |
35.8 |
|
Slewing angle |
365° |
|
Number of the booms section |
5 |
|
Length of each boommm |
11110/8820/8690/9300/9280 |
|
Angle of unfolding the booms |
90°/180°/180°/245°/250° |
|
Diameter of the delivery pipemm |
125 |
|
Length of the end hosemm |
3000 |
|
Chassis and whole vehicle |
Chassis model |
Actros 4141 |
Drive mode |
8×4 |
|
wheelbasemm |
1700+4600+1350 |
|
Wheel gauge (front/rear)mm |
2034/1804 |
|
Modle of the tyre |
315/80R22.5 |
|
Modle of the engine |
OM501LA |
|
Max. power of the enginekW/(r/min) |
300/1800 |
|
Max. torque of the engineN.m/(r/min) |
2000/1080 |
|
Displacement of the enginecc |
11946 |
|
Type of the fuel |
diesel |
|
Capacity of the fuel tankL |
400 |
|
Standard of the exhaust emission |
EURO3 |
|
Max. speed of the whole vehiclekm/h |
85 |
|
Mass of the whole vehiclekg |
43652 |
|
Overall dimension of the whole vehicle (length×width×height)mm |
13373×2500×3995 |
|
others |
Type of lubrication |
Auto lubrication of energy-saving type |
Capacity of the hydraulic oil tankL |
800 |
|
Type of control |
manual+ remote control |
|
Max. pressure of the water tankMpa |
4 |
|
Capacity of the water tankL |
400 |
|
Mode of cleaning the concrete pipes |
Water washing/ dry cleaning |
|
