Specifications
HZS90 Concrete Batching Plant:ductivity: 90 m3/h
ncrete mixer:JS1500
ncrete batching plant:PLD2400
|

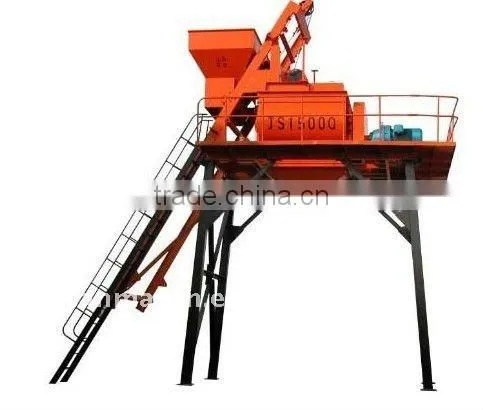

HZS90 Concrete Batching Plant
Model |
HZS90 | |
| Model of mixer | JS1500 | |
| Productivity m3/h | 90 | |
| Capability of discharge m³ | 1.5 | |
| Power of motor kW | 30×2 | |
| Aggregate thickness mm | 40/60 | |
| Weighing system | Form of sand and gravel |
Type of single or accumulative |
| Scope of measuring kg | 50~4000 | |
| Precision of measuring | ±2% | |
| Form of power material | Type of single or accumulative |
|
| Scope of measuring kg | 5~1000 | |
| Precision of measuring | ±1% | |
| Form of additive and water | Type of single or accumulative |
|
| Scope of measuring kg | 1~500 | |
| Precision of measuring | ±1% | |
| Model of water supply system of water pump | IS80-65-125 | |
| Power of motor kW | 5.5 | |
| Model of additive supply system of pump | FB40-32-20×2 | |
| Power of motor kW | 0.75 | |
| Model of air circuit system of air compressor | W-1.0/7-S×2 | |
| Power of motor kW | 7.5 | |
| The total capability of sand storehousem³ | 20×3 | |
| Cement silo t | 100×3 | |
| Electric control system | Manual, automatic 200kinds of concrete match ratio |
|
| The total power of installation kW | 200 | |
| The quality of the complete machine t | ~65 | |
| Over dimensions (L×W×H) mm | 5900×4000×11500 | |
HZS90 concrete mixing plant is used for the middle-sized and large side construction hudraulic works,electric power , highway,port,dock,bridge,urban,commercial concrete center and places where concrete is largele needed.
And it is composed of material supply batching system,mixing eletrical control and steel structure.It is ideal concrete equipment for building project,building project,building ground and precast produce factory.
1) It adopts knokdown structure and blocking.It is combine mode.
2) It has good mixing quality and high efficiency.
3) It is measuring nicety and high produce efficiency.
4) The forced water supply system spray equably and has washing fuction for the mixing system.
5) It adopts the ectrial weigher to measure all the aggregate cement water liquid additive.
