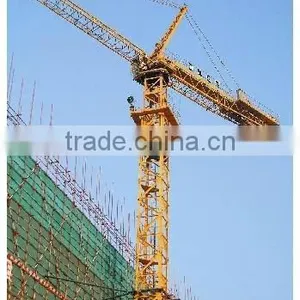

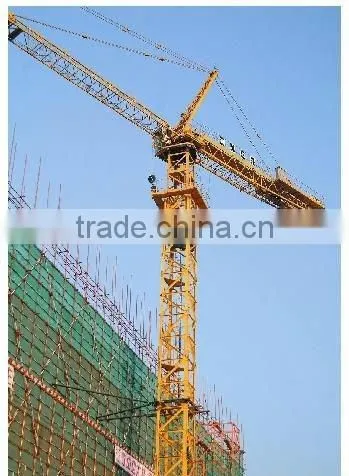

QTZ63(TC5012) Tower Crane

US$ 60,000 - 70,000 MOQ: 1 Unit

Key Specifications

Condition:

New

Max. Lifting Load:

Place of Origin:

Jiangsu, China

Shanghai Canmax Electronic And Mechanical Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

any port of China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Max. Lifting Load 6t

Place of Origin Jiangsu, China

Brand Name ZXM

Model Number QTZ63(TC5012)

Specifications

QTZ63(TC5012) tower crane
1.Max height:160m max load:6t
2.Free heitht:41m jib length:50m

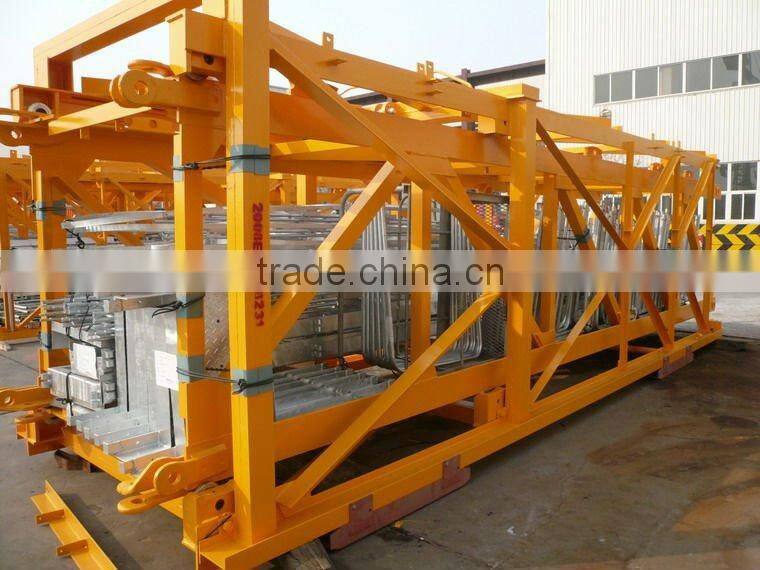

3.Mast section:1.8*1.8*3(m)

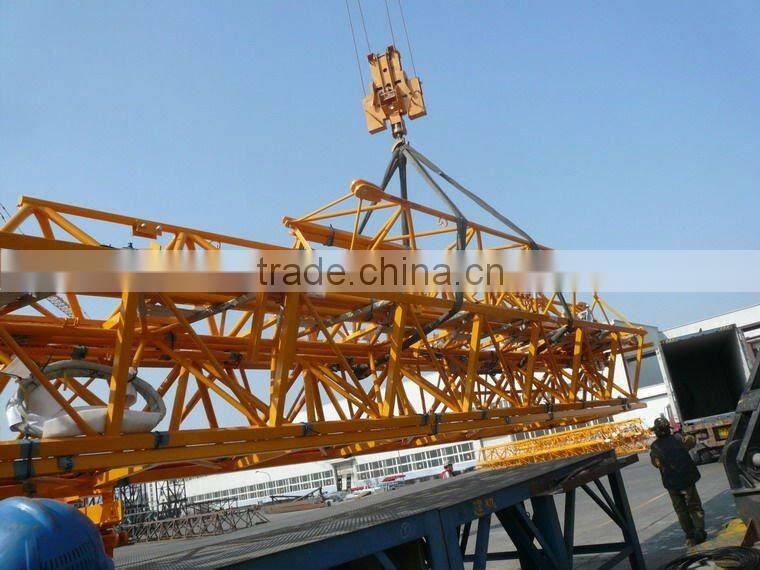

QTZ63(TC5012) tower crane

No.	Name of parameter		Unit	Value
1	Rated lifting moment			630
2	Max rated lifting weighgt		t	6
3	Max working range/rated lifting weight			50/1.2
4	Min working range		m	2.5
5	Allowable max range in max lifting weight		m	13.7
6	Hoisting velocity	Independent	m	40
		Attached	m	140
7	Hoisting mechanism (planet reducer)	Hoisting velocity / Relevent max lifting weight	m/min	twice rate		quad rate
				m /min	t	m /min	t
				6.6	3	3.3	6
				22.8	3	11.4	6
				39.3	3	19.7	6
				55.5	1.5	27.8	3
				80	1.5	40	3
		Lowest steady descenting speed	m /min	3.3
		Model of motor		YZTD200L 24/8/4		YZTD180L 8/4
		power	kW	4/15/15		11/15
		Swing speed	r/min	195/670/1385		700/1400
8	Slewing mechanism	Slewing velocity	r/min	0.7
		Model of motor		YZR132M2-4
		Power	kW	5.5
		Swing speed	r/min	1385
9	Range- changing mechanism	Range-changing velocity	m/min	28/42
		Model of motor		YDTC250
		Power	kW	3/4
10	Rising mechanism	Rated rising speed	m/min	0.5
		Rated working pressure	MPa	16
		Model of motor		Y132S—4
		Power	kW	5.5
		Swing speed	m/min	1400
11	boom length/relevent counterweight		m/t	50/8.8
12	Weight of the whole crane		t	37.6
14	Total power(rising motor not inclouded)		kW	39.5
15	Mast secton dimension(length×wide×height)		m	1.8×1.8×3.0
16	Boom section dimension		m	1.373×1.15
