Help Center140hp Wheel Tractor KAT1404
US$ 6,000 - 70,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Wheel Tractor
By wheel:
4WD
Payment & Shipping
Payment Methods:
Port of Shipment:
any port in China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Type
Wheel Tractor
By wheel
4WD
Usage
Farm Tractor
Brand Name
CANMAX
Model Number
KAT1404
Place of Origin
Jiangsu, China
Specifications
140hp wheel tractor KAT14041.Good quality, low price.
2.Professional service.
3.Drive type:4*4.

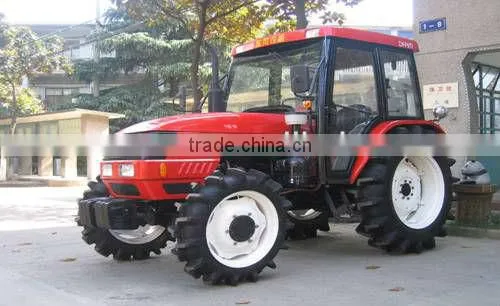

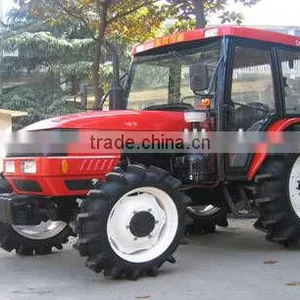

140hp wheel tractor KAT1404
Item |
Unit |
KAT1404(Shangchai Engine) |
||
|---|---|---|---|---|
| Net engine power | kW(HP) | 103(140) | ||
| Drive type | 4x4(4-wheel drive) | |||
|
Dimension Length/Width (delivery tread)/Height (Cab top) |
mm | 5410/2305/3030 | ||
| Wheel base | mm | 2790 | ||
| Front wheel tread | mm | 1846-2148 | ||
| Rear wheel tread | mm | 1838-2142 | ||
| Min. clearance | mm | 450 | ||
| Min. turning radius | mm | 6600 | ||
| Min. operation weight | kg | 5960 | ||
| Front counter-weight≤ | kg | 400 | ||
| Rated traction | kN | 33 | ||
| Power output axle | Type | Rear, independent | ||
| Standard rpm | r/min | 540/1000 | ||
| Max. lifting force | kN | 31 | ||
| Forward | Low | Gear number | 7 | |
| Speed | km/h | 2-17 | ||
| High | Gear number | 7 | ||
| Speed | km/h | 3-30 | ||
| Reverse | Gear number | 7 | ||
| Speed | 2-20 | |||
| Tyre specification | Front wheel | 14.9-26R1 | ||
| Rear wheel | 18.4-38R1 | |||
| Diesel | Rated power/ rpm | 103/2100 | ||
|
Fuel consumption rate of rated condition |
≤230 | |||
Item |
Unit |
KAT1404(Weichai Engine) |
||
|---|---|---|---|---|
| Net engine power | kW(HP) | 105(140) | ||
| Drive type | 4x4(4-wheel drive) | |||
|
Dimension Length/Width (delivery tread)/Height (Cab top) |
mm | 5650/2305/3030 | ||
| Wheel base | mm | 2870 | ||
| Front wheel tread | mm | 1846-2148 | ||
| Rear wheel tread | mm | 1838-2142 | ||
| Min. clearance | mm | 450 | ||
| Min. turning radius | mm | 6900 | ||
| Min. operation weight | kg | 6220 | ||
| Front counter-weight≤ | kg | 400 | ||
| Rated traction | kN | 33 | ||
| Power output axle | Type | Rear, independent | ||
| Standard rpm | r/min | 540/1000 | ||
| Max. lifting force | kN | 31 | ||
| Forward | Low | Gear number | 7 | |
| Speed | km/h | 2-18 | ||
| High | Gear number | 7 | ||
| Speed | km/h | 3-32 | ||
| Reverse | Gear number | 7 | ||
| Speed | 2-21 | |||
| Tyre specification | Front wheel | 14.9-26R1 | ||
| Rear wheel | 18.4-38R1 | |||
| Diesel | Rated power/ rpm | 105/2200 | ||
|
Fuel consumption rate of rated condition |
≤225 | |||
