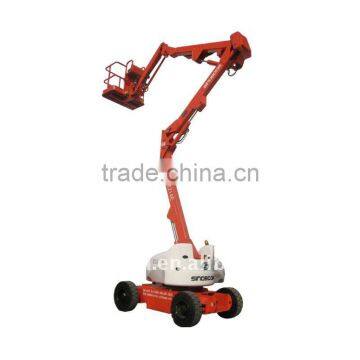

14m Articulated Boom Self-propelled Aerial Work Platform

Name: 14m Articulated Boom Self-propelled Aerial Work Platform
Brand: SINOBOOM
SKU: 141323748
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Hunan, China

Brand Name:

SINOBOOM

Model Number:

GTZZ14E

Shanghai Canmax Electronic And Mechanical Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

any port of China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Hunan, China

Brand Name SINOBOOM

Model Number GTZZ14E

Specifications

14m Articulated boom Self-propelled aerial work platform
1.Platform height 13.7m
2.Lift capacity 227kg
3.Weight 6400kg

14m Articulated boom Self-propelled aerial work platform

Item	Measurement	Item	Measurement
Dimensions		Productivity
Overall length(stowed)	5.54M	Platform height max.	13.7M
Overall width(stowed)	1.75M	Working height max.	15.7M
Overall height(stowed)	1.995M	Horizontal reach max.	7.4M
Ground clearance	0.2M	Turntable rotation	355°
Wheelbase	2M	Platform rotation	160°
Overall weight	6400Kg	Platform Load capacity	227Kg
Platform Size (LWH)	1.520.771.22M	Grade ability	30%
Platform levelling	auto	Turning radius(outside)	3.23M
Tire specification	250-15	Turning radius(inside)	0.7M
Tire type	Solid	Turntable tailswing	0
Power
Hydraulic tank vol.	35 L	Driving Speed (stowed)	5.2km/h
Hydraulic system vol. (inc. the tank)	60L	Driving Speed (extended)	0.8km/h
Control voltage	48 V	Max allowable wind force	12.5m/s
Motive Power	Driving motor	Max allowable slope	3.5°
Drive & steer model	2WD, 2WS	Max allowable side force	400N
