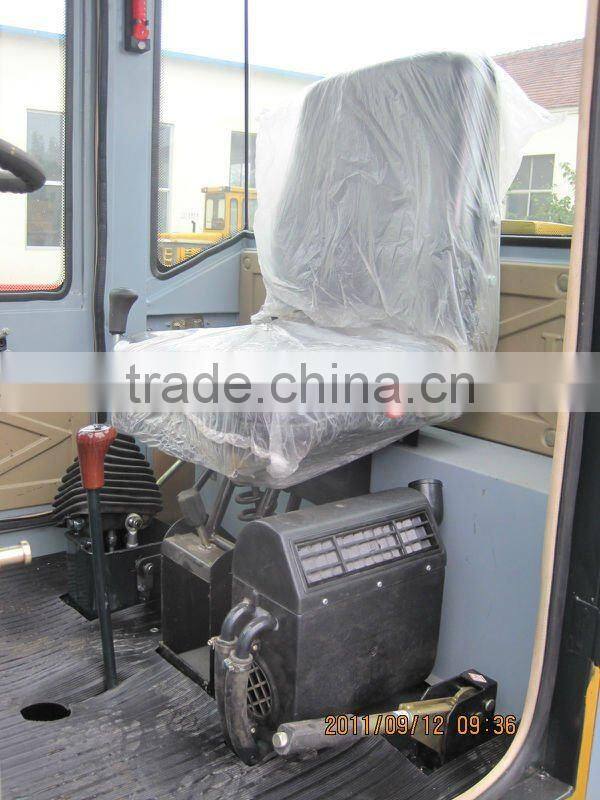

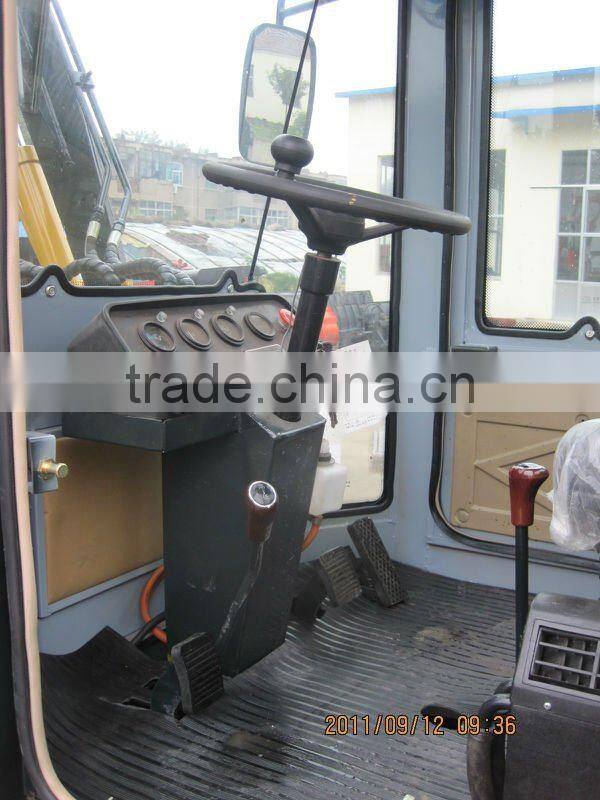

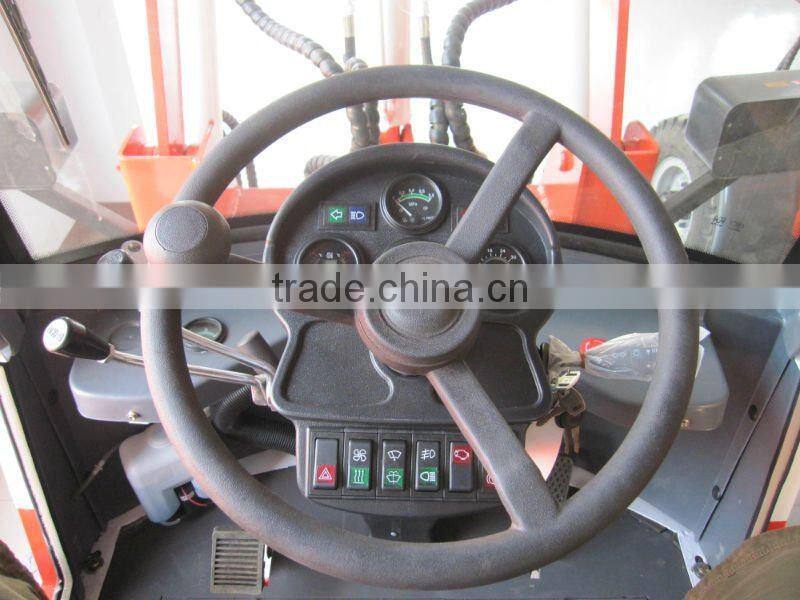

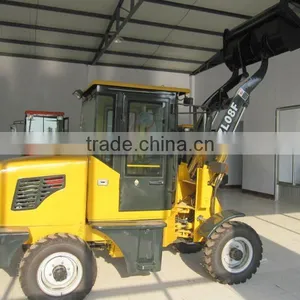

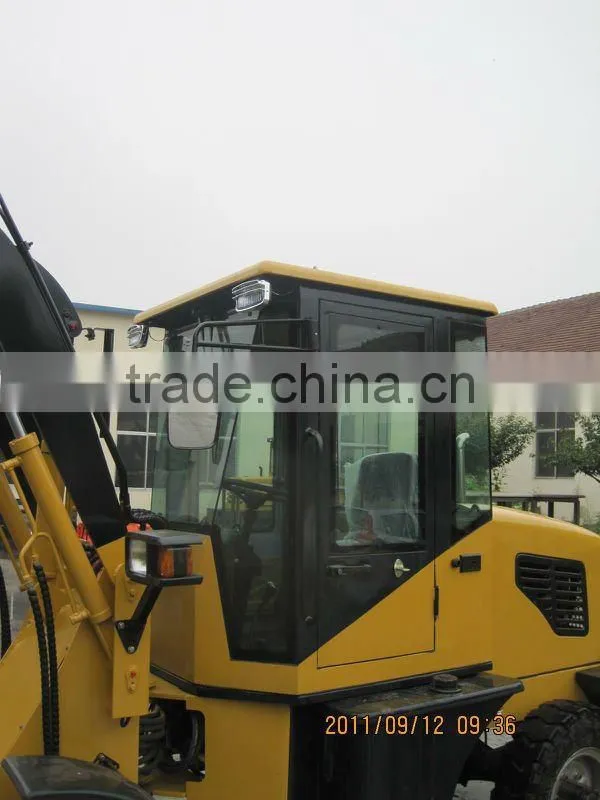

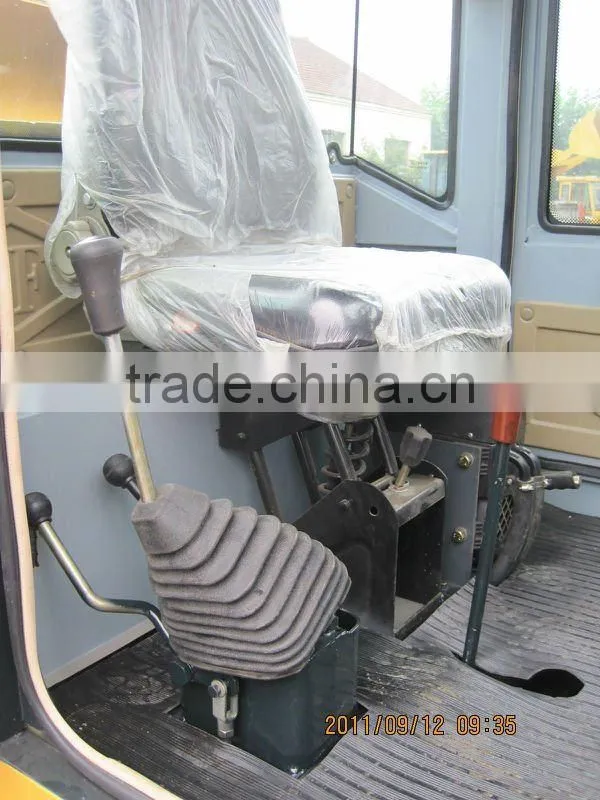

ZL08F Wheel Loader With CE

Specifications

1.0 Engine details:

(1) Model: Changcai L24

(2) Engine type: In-line arrangement, water-cooled, one-cycle diesel Engine

(3) Rated Power: 17KW (23.12 H.P.)

(4) Rated Speed: 2200 r/min (rpm)

(5) Fuel Consumption ratio in standard working condition: 269g/kw.h

2.0 Steering System

(1) Cycloid full hydraulic steering system: BZZ-80

(2) System Pressure: 10MPa

3.0 Bucket

(1) Bucket Capacity: 0.4 m3

(2) Bucket width: 1300mm

(3) Bucket type: Heavy-duty bolt on teeth

(4) Max. Breakout Force: 28KN

(5) Rated Load: 800kg

(6) Operating Weight: 2350kg

4.0 Overall Dimensions

(1) Overall Length (Bucket on ground position): 4700mm

(2) Overall Height

(a) Ground to Cab Top: 2350mm

(b) Ground to exhaust pipe: It is below from the top of cabin

(3) Overall Width: 1600mm

5.0 Operating Specifications

(1) Drive Means: Four-wheel drive

(2) Min Turning Radius: 4600mm

(3) Driving System: mechanical

(4) Dumping Height: 2300mm

(5) Dumping Reach at max height: 750mm

(6) Min the ground distance: 240mm

(7) Time of raise: 4sec.

(8) Hydraulic cycle time: 9sec.

6.0 Brake System

(1) Service Brake: Four Wheel Hydraulic spread-shoed brake

(2) Parking Brake: Hand operated

7.0 Tyre

(1) Model: 8.25-16 (2) Width: 20cm (3) Diameter: 80cm

8.0 Wheelbase: 2170mm

9.0. Track: 1285mm
