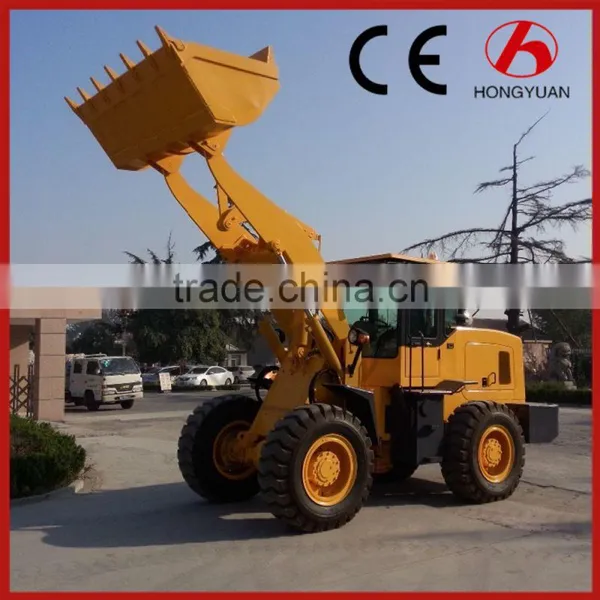

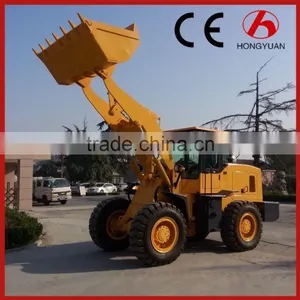

THE TECHNICAL PARAMETERS OF ZL30F CE CERTIFICATE MINI WHEEL LOADER | |||
Item |
Specifications |
Item |
Specifications |
Rated loading weight |
3000kg |
Engine type |
In-line arrangement, water cooled, six-cycle diesel engine |
Rated bucket capacity |
1.7m3 |
Engine starting mode |
Electric |
Track base |
1800mm |
Rated power/Rated speed |
92KW/2200rpm |
Wheel base |
2760mm |
Brake mode |
Four-wheel hydraulic spread-shoed brake |
Min. turning radius(outside of rear wheels) |
5700mm |
Warranty |
12 months after received the goods |
Dump height fully raised |
3020/3250mm |
Color |
According to the requirements of customers |
Reach fully raised |
1200mm |
Tyre type |
17.5-25 |
|
Lifting time+Lowering time +Unloading time |
11S |
Shipping port |
Qingdao port, China |
|
Max. Bucket breakout, lift cylinder |
138KN |
Packing details |
Nude package, 1Unit/40's HQ with disassembled cabin |
Driving mode |
Four-wheel full hydraulic drive |
Delivery time |
30 days after confirm the order |
Operating weight |
9500kg |
Supply ability |
100 units per month |
Overall dimensions(LxWxH) |
7050x2430x3120mm |
||
Engine model |
DEUTZ WP6G125E22 |
||
