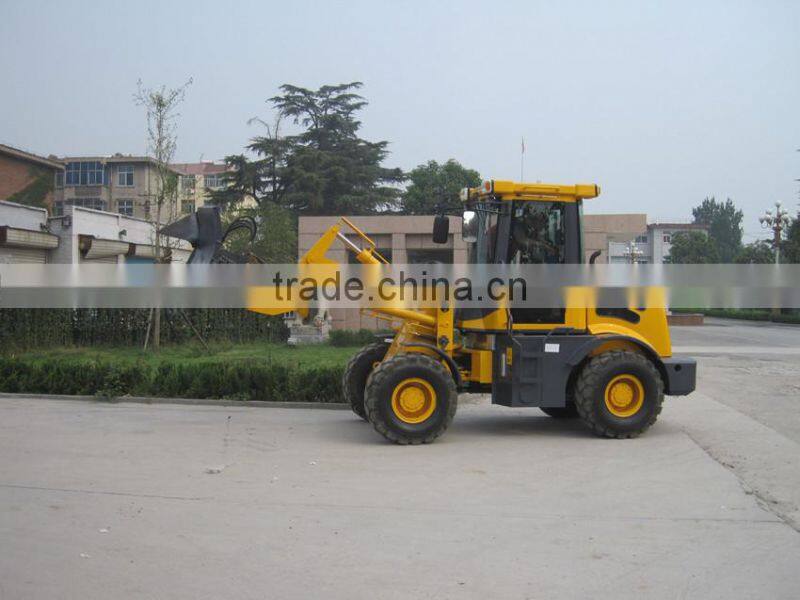

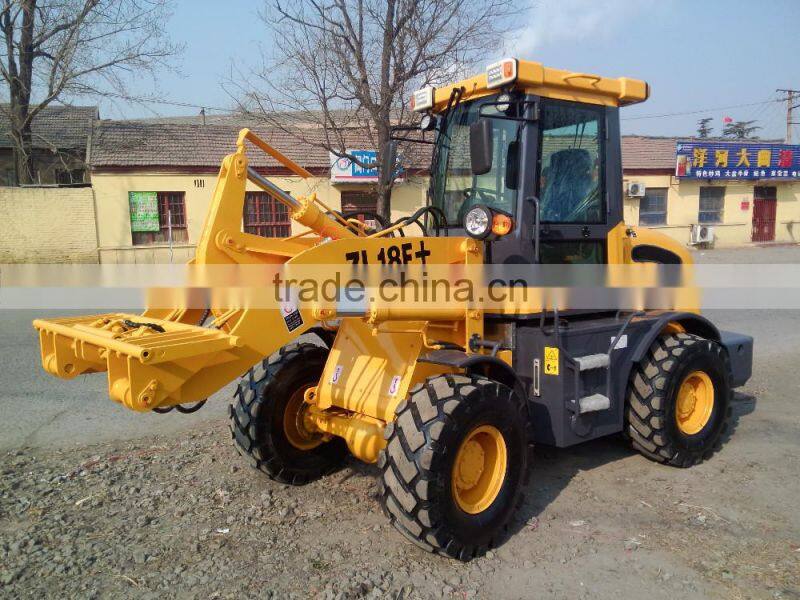

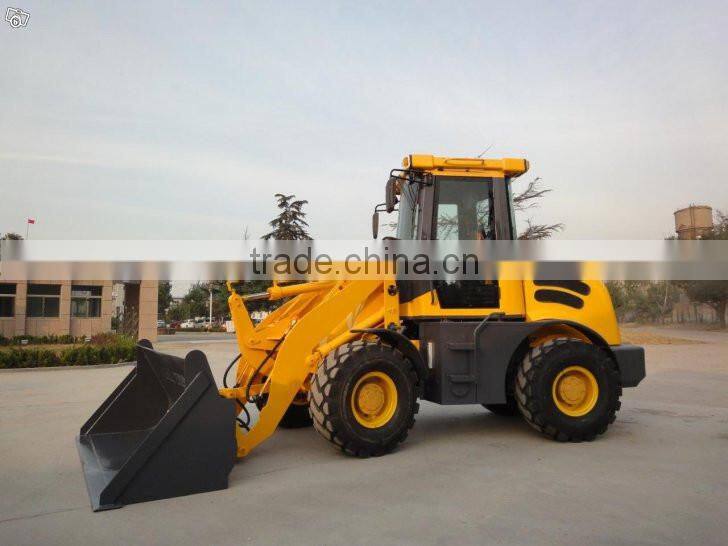

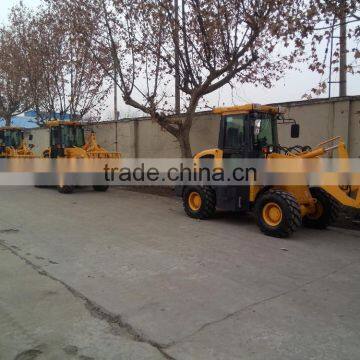

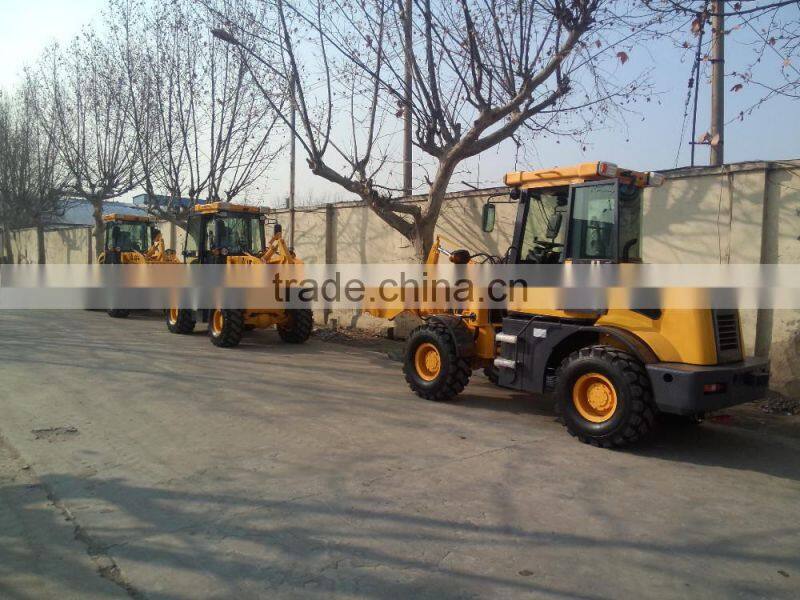

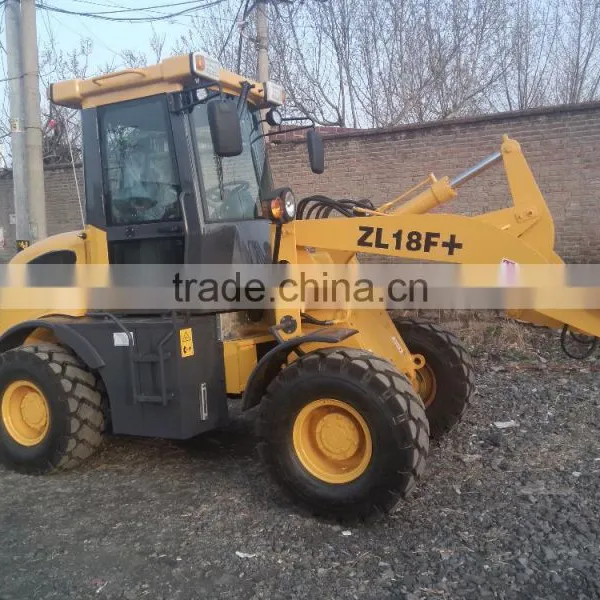

ZL18F mini wheel loader with CE
1. Engine: XINCHAI 498(EURO III)
2. Hub Reduction Drive Axle
3. Multi-function
4. Tipping cabin
Specifications of ZL18F mini wheel loader with CE
THE TECHNICAL PARAMETERS OF ZL18F CE CERTIFICATE MINI WHEEL LOADER | |||
Item |
Specifications |
Item |
Specifications |
Rated loading weight |
1800kg |
Overall dimensions(LxWxH) |
5050x2100x2650mm |
Rated bucket capacity |
0.8m3 |
Engine model |
XINCHAI 498BT(EURO III) |
Bucket width |
1750mm |
Engine type |
In-line arrangement, water cooled, four-cycle diesel engine |
Track base |
1500mm |
Engine starting mode |
Electric |
Wheel base |
2100mm |
Rated power/Rated speed |
36.8KW/2500rpm |
|
Min. turning radius(outside of rear wheels) |
4500mm |
Brake mode |
Four-wheel hydraulic spread -shoed brake |
Min. Ground clearance |
260mm |
Warranty |
12 months after received the goods |
Dump height fully raised |
2700mm |
Color |
According to the requirements of customers |
Max. Tilt angle |
300 |
Tyre type |
20.5/70-16 |
|
Max. Bucket breakout, lift cylinder |
36.8KN |
Shipping port |
Qingdao port, China |
Maximum Speed |
21km/h |
Packing details |
Nude package, 1Unit/20's GP with disassembled cabin, 3Units/40's HQ |
Driving mode |
Four-wheel full hydraulic drive |
Delivery time |
15 days after confirm the order |
|
Transmission gear box form |
2 gear hydraulic variable speed changes |
Supply ability |
100 units per month |
Operating weight |
4200kg |
||
Major features
1.Using direct injection diesel engine as power, with easy startup and low oil consumption
2.Using special drive axle, with strong ability to overcome obstacle
3.Chassis uses hinged structure, with small turning radius and flexible turning, which applies to the operation in narrow space
4.This machine uses hydraulic operation, with simple structure, convenient operation, good performance and reliable quality
5.Widely applying to the construction of agricultural engineering and small and medium building such as road, coal mine, brickyard, urban construction, kiln factory, stone material factory, prefabricated cement parts factory, etc.
6.Hydraulic mechanical transmission, can make full use of engine power
7.Using four wheel drive, low wide-based off-road tires
8.A single pipeline hydraulic brake system up for wheel brake shoe
We major export to Europe market from 2010, include Germany, Sweden, Finland, Poland, Norway, Hungary, Austria, Belgium, Netherlands, Estonia, Moldova, Turkey, Iraq, Libya, Uganda, Russia, Japan, Malaysia, Australia, Canada, Brazil, Argentina, Uruguay etc. we have many more than 40 coutries Customers. If possible, we hope you can be our agent of some models in one country or some counties in Europe or other regions.
The general warranty for new products is one year from the customer reveived the machines, don't include the shipping periods. We will pack some Spare parts for free, we afford to the charges of new spare parts and the express within one year. Now, we are planning to build some spare parts warehouse in Europe. We also can send the repair worker to abroad for the after service if the customers need.
Nude packing, One 20 feet GP container can pack one unit with some accessories, but need to disassemble the cabin.
One 40 feet HC container can pack three units with some accessories.
1.What’s the MOQ?
Min.Order Quantity:1 unit;
2.What’s your delivery time?
Within 15 days after receipt of deposit.
3.Can I print my own logo?
Yes,we offer OEM service and we provide one-on-one designing assistance.
4.Can I take a sample for quality check?
Yes,you could buy 1 unit to test quality.
5.Where have your products been sold to?
Our product have been exported all over the world.
6.What’s your annual production capacity?
Around 2000 units.
7.Are you a manufacturer?
A:we are a professional manufacturer specializing in manufacturing loader and located in No. 852, Longshan
road, Qingzhou, Shandong, China (Mainland).we enjoy great reputation among our customers not only for
competitive price and qualified product but also for excellent service.
8.What dose your factory do regarding quality control?
Quality is priority!
Firstly,we have CE,EPA,ROPS,FOPS,TUV,SGS,etc. certificate for all production process,we have standard rules.
Secondly,we have quality control team,two parts,one is in the factory to control producing ,the other is as third
party,inspect the goods for our customers,once everything is ok,our logistics department can book the vessel,
then ship it.
Thirdly,we have all detailed records for nonconformity products, then we will make summary according to these
records,avoid it happen again.
Finally,we do observe the relevant codes of conduct &laws from government in environment human rights and
other aspects like no children labor,no prisoners labor and so on.
Thanks for your times and welcome to contact us: We promise to solve every problem from you within 24 hours.
Established in 2005, Qingzhou Hongyuan Vehicles Co., Ltd is a professional manufacturer and exporter of
wheel loaders. We are located in Qingzhou City, Shandong Province, with convenient transportation access.All
of our products comply with international quality standards and are greatly appreciated in a variety of different
markets throughout the world. We have over 100 employees to reach an annual sales e that exceeds
USD10,000,000, and we are currently exporting 100% of our product worldwide.We also have approved Real CE
Certificate through Germany TUV company.
Our well-equipped facilities and excellent quality control throughout all stages of production enable us to
guarantee total customer satisfaction. We have successfully studied and developed ZL06,ZL08,ZL10,ZL12,ZL15,
ZL16,ZL18,ZL20,ZL30,ZL50,HY610, HY910, etc. Series mini loader and medium size wheel loader with more
than 30 kinds of Accessories. We also developed Telescopic loader, Backhoe loader, Off-road forklift, Sugarcane
loader, Site Dumper, etc. As a result of our high quality products and outstanding customer service, we have
exported to Germany, Sweden, Finland, Poland, Norway, Hungary, Austria, Belgium, Netherlands, Estonia,
Moldova, Turkey, Iraq, Libya, Uganda, Russia, Japan, Korea, Malaysia, Indonesia, Vietnam, Cambodia, Australia,
Canada, USA, Brazil, Argentina, Uruguay etc.
If you are interested in any of our products or would like to discuss a customer order, please feel free to
contact us. We are looking forward to forming successful business relationships with new clients around the
world in the future.
