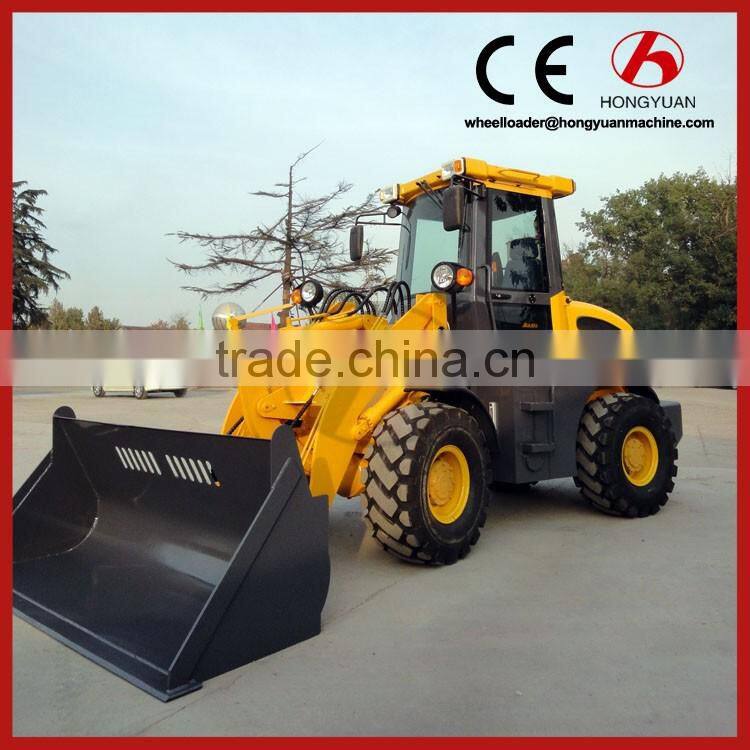

2016 factory direct sale wheel loader price
1. Engine: XINCHAI 498(EURO III)
2. Hub Reduction Drive Axle
3. Multi-function
4. Tipping cabin
Specifications of ZL16F mini wheel loader with CE. LED work light
THE TECHNICAL PARAMETERS OF ZL16F CE CERTIFICATE MINI WHEEL LOADER | |||
Item |
Specifications |
Item |
Specifications |
Rated loading weight |
1600kg |
Overall dimensions(LxWxH) |
5300x1800x2750mm |
Rated bucket capacity |
0.8m3 |
Engine model |
XINCHAI 498BT(EURO III) |
Bucket width |
1750mm |
Engine type |
In-line arrangement, water cooled, four-cycle diesel engine |
Track base |
1500mm |
Engine starting mode |
Electric |
Wheel base |
2100mm |
Rated power/Rated speed |
36.8KW/2500rpm |
|
Min. turning radius (outside of rear wheels) |
4500mm |
Brake mode |
Four-wheel hydraulic spread-shoed brake |
Min. Ground clearance |
260mm |
Warranty |
12 months after received the goods |
Dump height fully raised |
2700mm |
Color |
According to the requirements of customers |
Max. Tilt angle |
300 |
Tyre type |
20.5/70-16 |
|
Max. Bucket breakout, lift cylinder |
36.8KN |
Shipping port |
Qingdao port, China |
Maximum Speed |
21km/h |
Packing details |
Nude package, 1Unit/20's GP with disassembled cabin, 3Units/40's HQ |
Driving mode |
Four-wheel full hydraulic drive |
Delivery time |
15 days after confirm the order |
|
Transmission gear box form |
2 gear hydraulic variable speed changes |
Optional tyres |
315/80R22.5 |
Operating weight |
4150kg |
||
Major features:
Front/Rear Axle
Planetary transmission is equipped with a compact structure and big torque.
Friction sheet and antiskid transmission ensure strong cross-country and climbing capacity.
Cab
With new steel frame, the cab features wider view field, reliable safety and low noise.
Spacious cab is provided with instruments and control devices in reasonable arrangement for convenient operation.
Noise-absorbing, thermal insulation, and high class decoration materials are used for internal decoration.
The low vibration suspending seat is designed specially for the operators and improves human feeling.
The air conditioner is optional.
Humper
Supporting device for lifting operation to prevent sudden falling and ensure safety and reliability.
Welding Structure
New-style articulated front/rear frames, small turning radius, good through and climbing capacity. Good carrying capacity and
stability.
Hydraulic System
The variable plug pump motor is adopted in the traveling system which leads to simple operation, stable traveling and reliable
performance.
The high-pressure gear pump is adopted in the working system which leads to quick lifting speed and high efficiency.
All the hydraulic parts are well-known brands in China, with perfect and reliable performance.
Wide Thread Steel Radial Tyre
Excellent cutting proof and wearproof performance, wide antiskid groove, good heat dispersion and self-washing performance,
big adhesive to ground, and nice traction.
Widely applied for mining, earth-moving, loading and digging operation.
Electric System
The cable and jacket are made of anti-flaming material.
High-grade battery and electric parts are applied to ensure more reliable and stable system.
Established in 2005, Qingzhou Hongyuan Vehicles Co., Ltd is a professional manufacturer and exporter of
wheel loaders. We are located in Qingzhou City, Shandong Province, with convenient transportation access.All
of our products comply with international quality standards and are greatly appreciated in a variety of different
markets throughout the world. We have over 100 employees to reach an annual sales e that exceeds
USD10,000,000, and we are currently exporting 100% of our product worldwide.We also have approved Real CE
Certificate through Germany TUV company.
Our well-equipped facilities and excellent quality control throughout all stages of production enable us to
guarantee total customer satisfaction. We have successfully studied and developed ZL06,ZL08,ZL10,ZL12,ZL15,
ZL16,ZL18,ZL20,ZL30,ZL50,HY610, HY910, etc. Series mini loader and medium size wheel loader with more
than 30 kinds of Accessories. We also developed Telescopic loader, Backhoe loader, Off-road forklift, Sugarcane
loader, Site Dumper, etc. As a result of our high quality products and outstanding customer service, we have
exported to Germany, Sweden, Finland, Poland, Norway, Hungary, Austria, Belgium, Netherlands, Estonia,
Moldova, Turkey, Iraq, Libya, Uganda, Russia, Japan, Korea, Malaysia, Indonesia, Vietnam, Cambodia, Australia,
Canada, USA, Brazil, Argentina, Uruguay etc.
If you are interested in any of our products or would like to discuss a customer order, please feel free to
contact us. We are looking forward to forming successful business relationships with new clients around the
world in the future.
