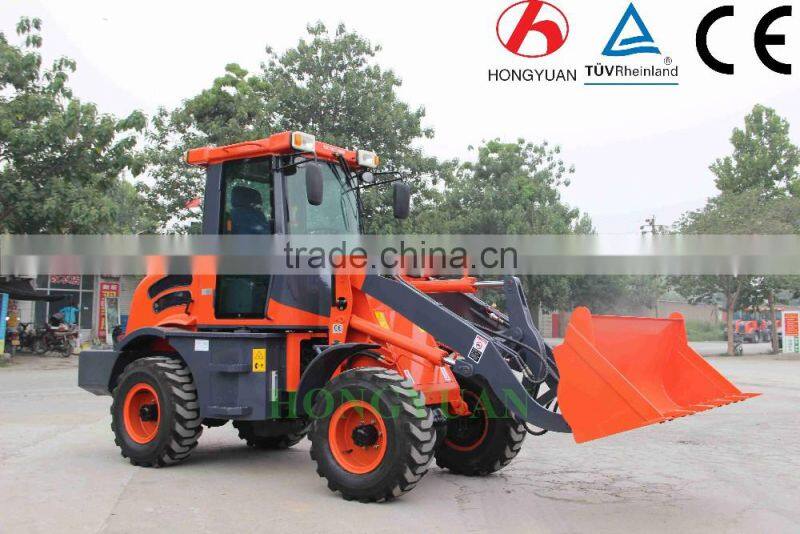

ZL15F Mini Wheel Loader With CE Farm Use /Qucik Hitch

Standard:

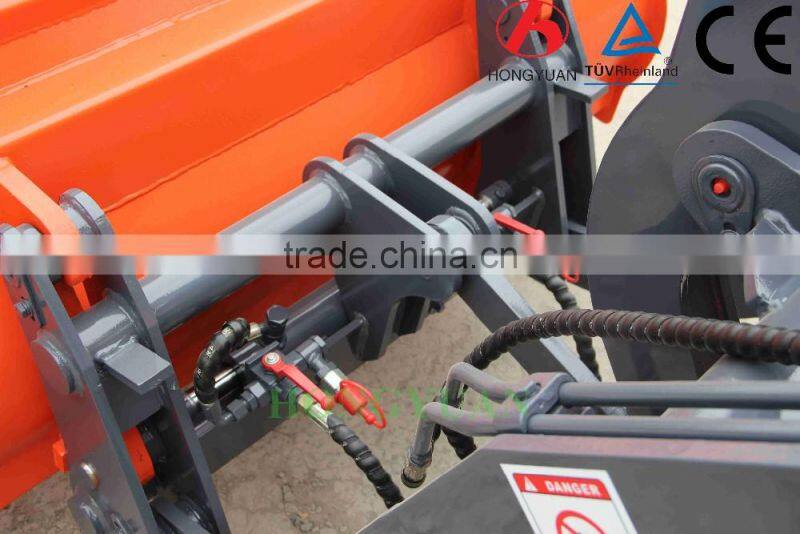

Standard Bucket.Euro iii Engine.LED Work Light.Quick Hitch.Varta Anti-free Battery.Hydraulic Joystick.CE/TUV Certificate.220V Engine Preheater.Video For Backward.Luxury Cabin.E-mark Seat.Adjustable Steering Wheel.Lock For Lifting And Steering Cylinder.Tipping Cabin.Floating Function.Easy-damaged Spare Parts.

Optional equipments:

Electric Joystick.14-17.5 Tire.31.5x15-15 Tire.E4 Lamp.Extra Hydraulic Line.

Specifications of ZL15F wheel loader

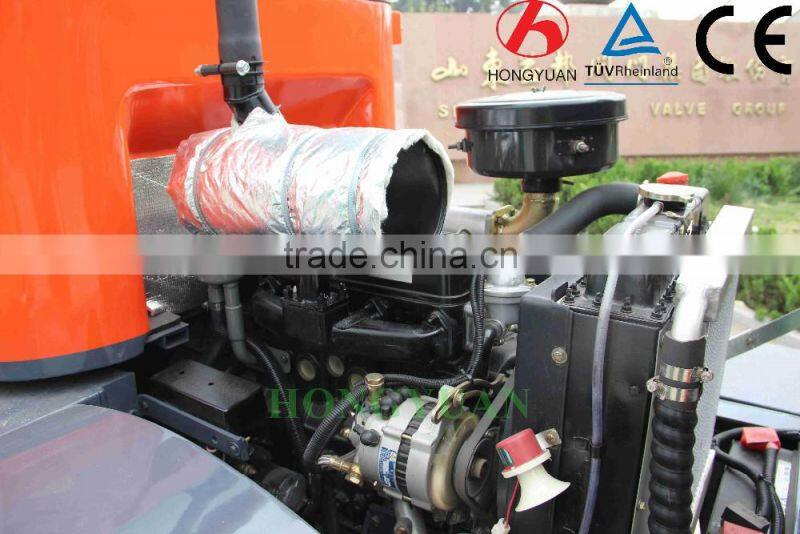

1.0 Engine Details

(1) Model: Xinchai 498BT(EURO III)

(2) Engine type: In-line arrangement, water-cooled, four-cycle diesel Engine

(3) Rated Power: 37KW

(4) Rated Speed: 2200 r/min (rpm)

(5) Fuel Consumption ratio in standard working condition: 230g/kw.h

2.0 Transmission System

(1) Type: Fixed-spindle Power shift

(2) Shift gear control oil pressure: 1.2~1.5MPa

(3) Rated input speed: 2500 (rpm)

3.0 Bucket

(1) Bucket Capacity: 0.7 m3

(2) Bucket width: 1750mm

(3) Bucket type: Heavy-duty bolt on teeth

(4) Max. Breakout Force: 36.8KN

(5) Rated Load: 1500kg

(6) Operating Weight: 3500kg

4.0 Overall Dimensions

(1) Overall Length (Bucket on ground position): 5200mm

(2) Overall Height

(a) Ground to Cab Top: 2670mm

(b) Dumping Height: 2650mm

(c) Min. Base to the Ground: 260mm

(3) Overall Width: 1730mm

5.0 Operating Specifications

(1) Steering System: Articulated Frame with hydraulic power steering

(2) Min Turning Radius: 4500mm

(3) Driving System: Hydraulic converter

6.0 Brake System

(1) Service Brake: Four Wheel Hydraulic spread-shoed brake

(2) Parking Brake: Hand operated

7.0 Tyre

(1) Model:12-16.5

8.0 Wheelbase: 2100mm

9.0 Track: 1500mm

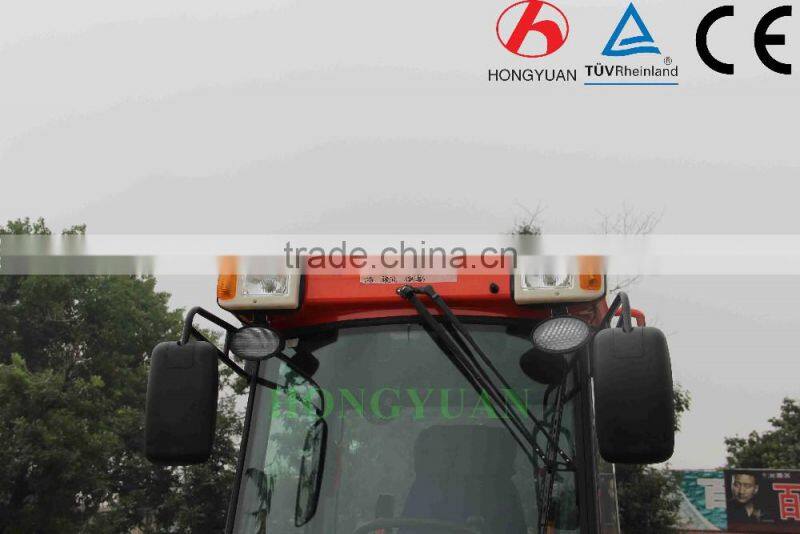

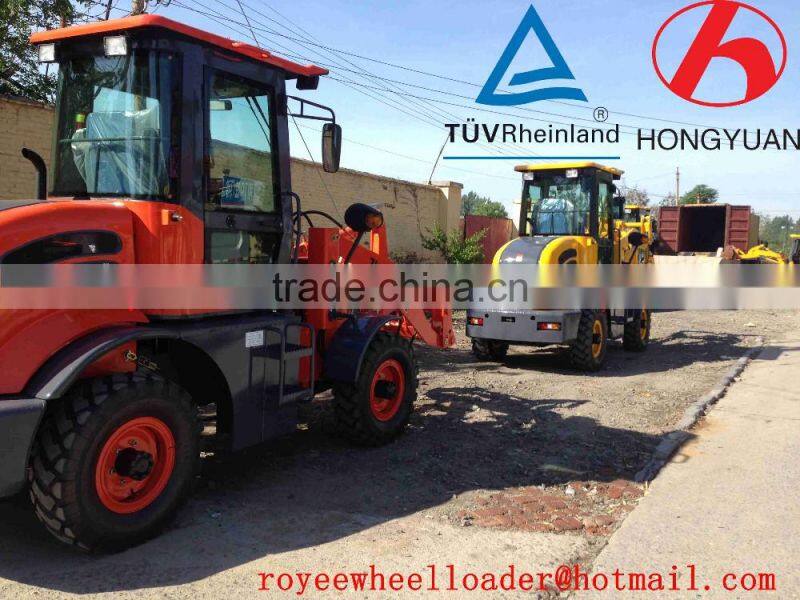

Detail Photoes

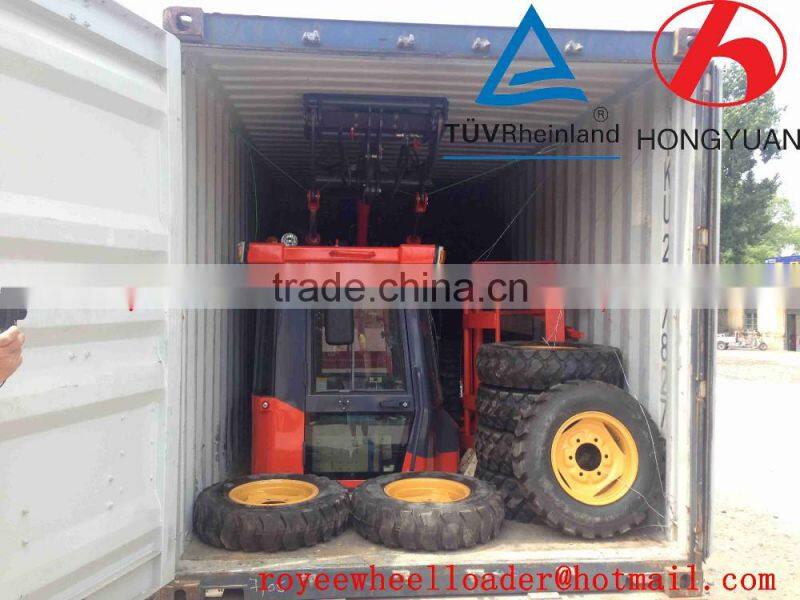

Nude package, 1Unit/20's GP with disassembled cabin, 3Units/40's HQ.

Pack with triangle wood and 10mm steel wing rope.

Leadtime 15 Days after 30% T/T deposit .

FOB or CIF we accept.

Detailed pictures and vedio for loadig container .

Shipping docs will be offered once loading the conatiner.

Pre-Sales Service

1. Inquiry and consulting support.

2.Sample testing support.

3. View our Factory.

After-Sales Service

1. Training how to instal the machine, training how to use the machine.

2 Engineers available to service machinery overseas.

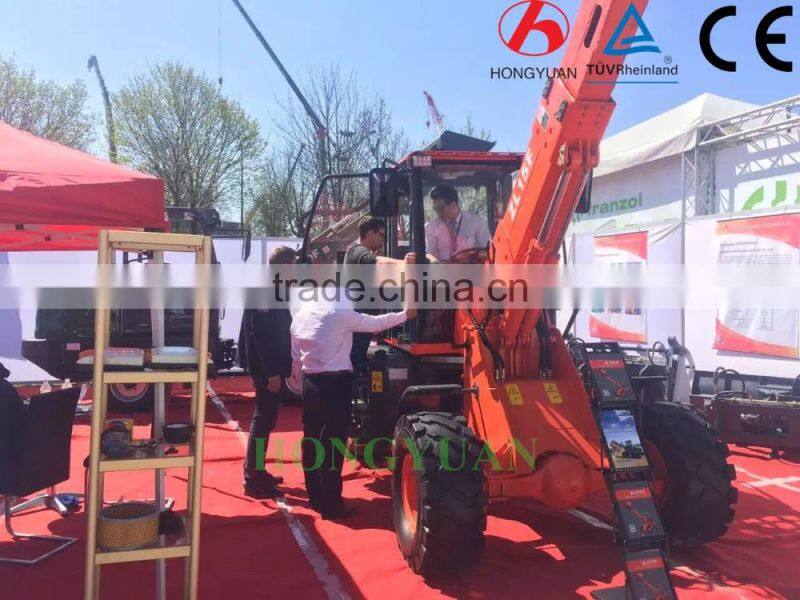

Exhibition 2016

Qingzhou HongYuan Vehicles Co.Ltd has more than 10 years experience for wheel loader,cross forklift,sugarcane loader,dump and other machine.Offer OEM service for domestic trading company and oversea company,our machines have exported to more than 30 countries over the wold.Like Germany,Sweden,Finland,France,Poland,England,Australia,South Africa ,Brazil and so on.

We have own brand"HONGYUAN"

1.Are you factory?

Yes,we are manufacturer for wheel loader ,sugarcane loader,dump,cross forklift with more than 10 years history and have rich OEM experience for domestic trading company and oversea company ,especially Europe market,all of our machines are produced under customers' professional suggestion.

2.What is the payment terms?

We accept T/T and LC payment ,usually 30% payment for deposit and balance upon the copy B/L.We will send customer detailed photoes and vedios for loading container and shipping advice for shipment.

3.What is the warranty for your machines?

We offer 1 year warranty after receiving the mchine .And free spare parts will be added for every machine.

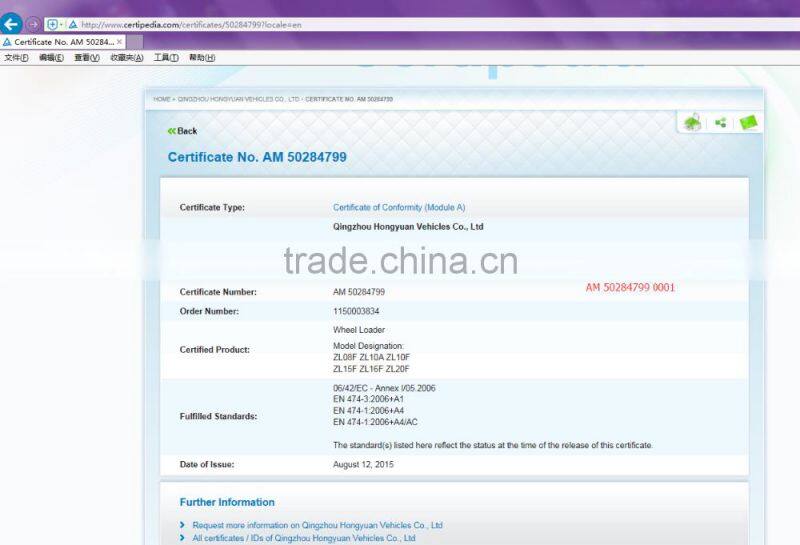

4.Do you have CE for your machine?

All of our machines have passed CE certificate,and they earn high reputation among our europe customers.

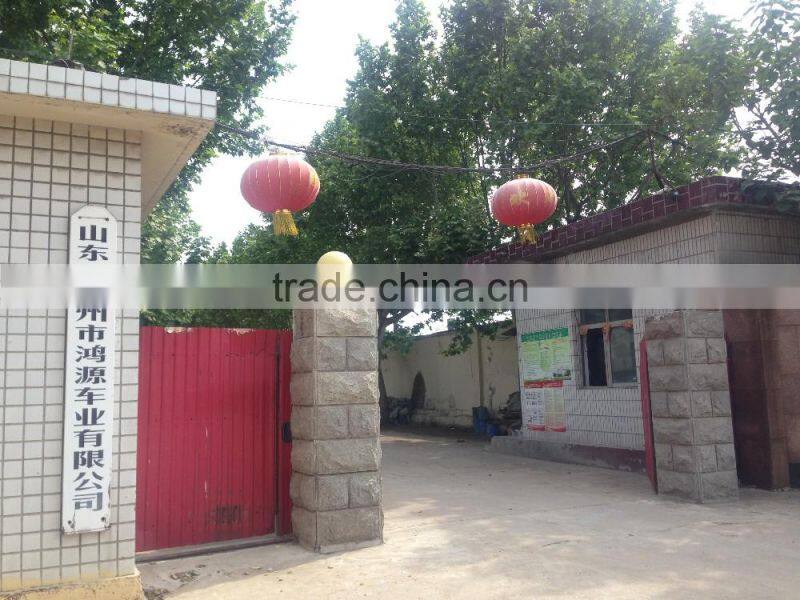

5.Where is your factory?

Our factory located in Qingzhou City,Shandong Province,China.Welcome for your visit.
