ZL10B Wheel Loader Small Engine Loader Mini Construction Equipment for Sale
- Qingdao
- T/T
You May Like
-
Agricultural 1.0 Ton Small Wheel Loader Price With 2m3 Bucket
-
China Small Construction Machine Mini Front End Loader for Sale
-
Agricultural 1 Ton Loader / Mini Wheel Loader With CE/1 Ton Loader
-
Agricultural 1.0 Ton Small Wheel Loader/mining Articulated Loader
-
2016 Cheap Price Wheel Loader /small Tractor Front End Loader
-
Mini Chinese Micro Loader Small Wheel Loader for Sale
Product Details
Condition | New | Brand Name | HY | |
Model Number | ZL10B mini wheel loader | Place of Origin | Shandong, China | |
Type | Mini Loader | Moving Type | Wheel Loader | |
Dimension(Long * Breadth * High) | 4750*2700*1720mm | Rated Load | 1000kg | |
Certification | CE ISO | Warranty | 12 Months | |
After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

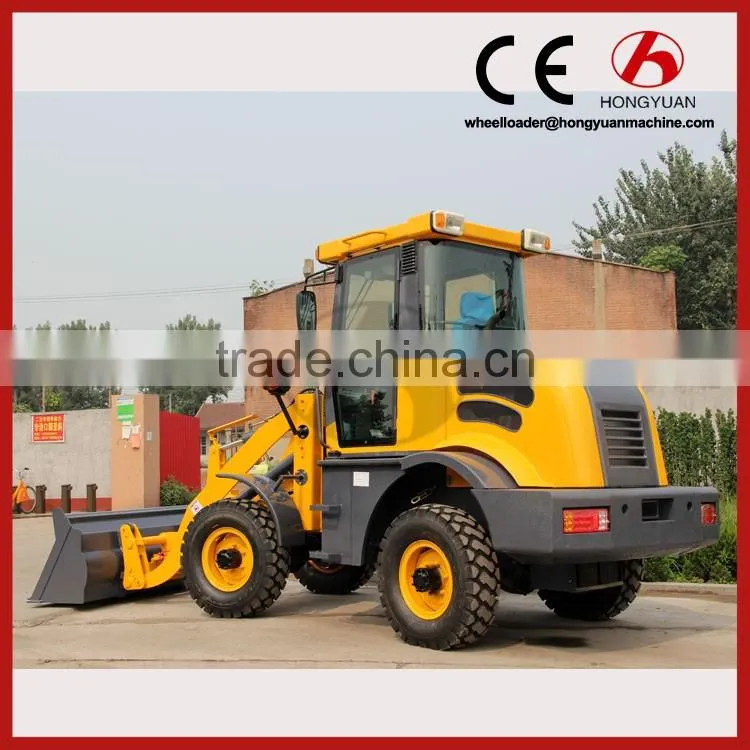

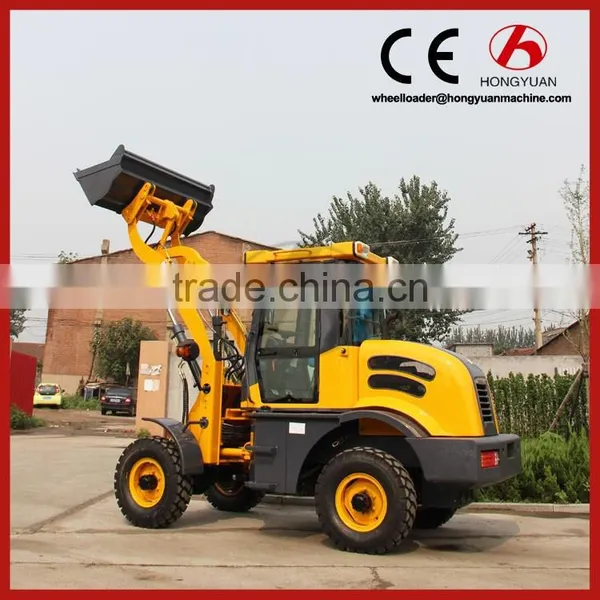

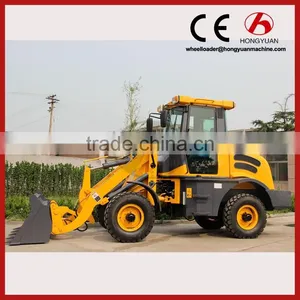

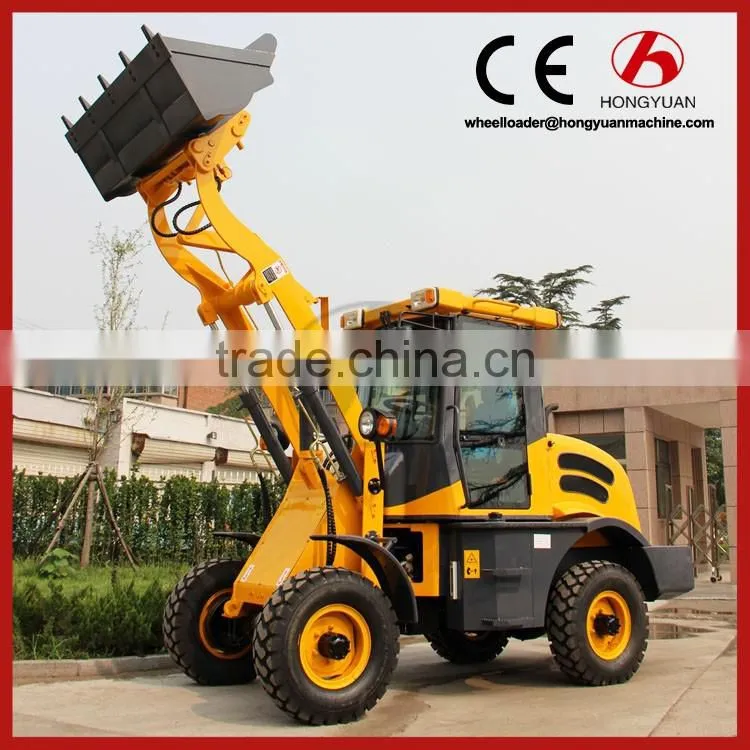

ZL10B Wheel loader small engine loader mini construction equipment for sale
THE TECHNICAL PARAMETERS OF ZL10B CE CERTIFICATE MINI WHEEL LOADER | |||||
Bucket Capacity (m3) | 0.7m³ | Operating Weight (kg) | 2950kg | ||
Bucket width(mm) | 1600 | Brake mode | Four-wheel hydraulic spead-shoed brake | ||
Rated Load (kg) | 1000kg | Driving mode | Four-wheel drive | ||
Max. Breakout Force (KN) | 32 | Overall Dimensions (mm) | L:4750xW:1600xH:2570 | ||
Forward Speed 1st (km/h) | 0-12 | Full Bucket Lifting Time (s) | 4.5s | ||
Forward Speed 2nd (km/h) | 0-24 | Total Hydraulic Cycle Time (s) | 9s | ||
Reverse Speed (km/h) | 0-24 | Tread Width (mm) | 220 | ||
Max. Dumping Height (mm) | 2450 | Wheel Base (mm) | 2020 | ||
Max. Dumping Reach (mm) | 1050 | Min. Clearance Over Ground (mm) | 220 | ||
Min. Turning Radius (mm) | 4200 | MAX.tilt angel(°) | 30 | ||
Diesel Engine | Brand | Changchai ZN485Q engine | Steering Sy stem | Working Pressure (MPa) | 10MPa |
Type | In-line arrangement,water cooled,four-cycle diesel engine | Max. Steering Angle (°) | 30 | ||
Rated Output (kw) | 26kw | Working Hydraulic System | Pressure Of Tire (MPa) | 2.5-3.5 | |
Rated Speed (rpm) | 2200rpm | Working Pump Type | Gear pump | ||
Engine starting mode | Electric | Working Pressure (MPa) | 16MPa | ||
Transmission | Type | Fixed-spindle Power shift | Transaxle & Tire | Rear Axle Oscillation | Center oscillation |
Rated Input Speed (rpm) | 2200 | Oscillating Angle Of Rear Axle (°) | 13 |
Established in 2005, Qingzhou Hongyuan Vehicles Co., Ltd is a professional manufacturer and exporter of
wheel loaders. We are located in Qingzhou City, Shandong Province, with convenient transportation access.All
of our products comply with international quality standards and are greatly appreciated in a variety of different
markets throughout the world. We have over 100 employees to reach an annual sales e that exceeds
USD10,000,000, and we are currently exporting 100% of our product worldwide.We also have approved Real CE
Certificate through Germany TUV company.
Our well equipped facilities and excellent quality control throughout all stages of production enable us to
guarantee total customer satisfaction. We have successfully studied and developed ZL06,ZL08,ZL10,ZL12,ZL15,
ZL16,ZL18,ZL20,ZL30,ZL50,HY610, HY910, etc. Series mini loader and medium size wheel loader with more
than 30 kinds of Accessories. We also developed Telescopic loader, Backhoe loader, Off-road forklift, Sugarcane
loader, Site Dumper, etc. As a result of our high quality products and outstanding customer service, we have
exported to Germany, Sweden, Finland, Poland, Norway, Hungary, Austria, Belgium, Netherlands, Estonia,
Moldova, Turkey, Iraq, Libya, Uganda, Russia, Japan, Korea, Malaysia, Indonesia, Vietnam, Cambodia, Australia,
Canada, USA, Brazil, Argentina, Uruguay etc.
If you are interested in any of our products or would like to discuss a customer order, please feel free to
contact us. We are looking forward to forming successful business relationships with new clients around the
world in the future.
