ZL10B Wheel Loader with CE

Standard:

Standard Bucket.4 Cylinder Engine.CE/TUV Certificate.220V Engine Preheater.Luxury Cabin.E-mark Seat.Adjustable Steering Wheel.Lock For Lifting And Steering Cylinder.Hydraulic Check System.Tipping Cabin.Mechanical Joystick.Easy-damaged Spare Parts.

Optional Equipments:

LED Work Light.Quick Hitch.Extra Hydraulic Line..Video For Backward.

Varta Anti-free Battery.Quick Hitch.

1.0 Engine Details

(1) Model: Changcai ZN485Q

(2) Engine type: In-line arrangement, water-cooled, four-cycle diesel Engine

(3) Rated Power: 26KW (35.36 H.P.)

(4) Rated Speed: 2200 r/min (rpm)

(5) Fuel Consumption ratio in standard working condition: 269g/kw.h

2.0 Steering System

(1) Cycloid full hydraulic steering system: BZZ-125

(2) System Pressure: 10MPa

(3) Steering Cylinder: Φ76x Φ63x180

3.0 Bucket

(1) Bucket Capacity: 0.7m3

(2) Bucket width: 1400mm

(3) Bucket type: Heavy-duty bolt on teeth

(4) Max. Breakout Force: 32KN

(5) Rated Load: 1000kg

(6) Operating Weight: 3300kg

4.0 Overall Dimensions

(1) Overall Length (Bucket on ground position): 4900mm

(2) Overall Height

(a) Ground to Cab Top: 2600mm

(b) Ground to exhaust pipe: It is below from the top of cabin

(c) Dumping Height: 2545mm

(3) Overall Width: 1685mm

5.0 Operating Specifications

(1) Drive Means: Four-wheel drive

(2) Min Turning Radius: 4200mm

(3) Driving System: mechanical

(4) Dumping Height: 2545mm

(5) Min Base to the ground: 240mm

(6) Time of raise: 3.05sec.

(7) Hydraulic cycle time: 9sec.

6.0 Brake System

(1) Service Brake: Four Wheel Hydraulic spread-shoed brake

(2) Parking Brake: Hand operated

7.0 Tyre

(1) Model: 8.25-16  (2) Width: 20cm  (3) Diameter: 80cm

8.0 Wheelbase: 2040mm

9.0 Track: 1320mm

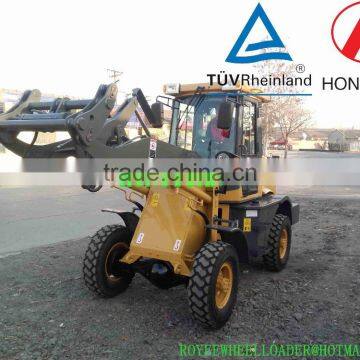

 Detailed Pictures for ZL10B Wheel Loader :

Nude package,2 unit in 20ft container,4 unit in 40HQ container.Pack with triangle wood and 10mm steel wing rope.

Leadtime 15 Days after 30% T/T deposit .FOB or CIF we accept.Detailed pictures and vedio for loadig container .Shipping docs will be offered once loading the conatiner.

Pre-Sales Service

1. Inquiry and consulting support.

2.Sample testing support.

3. View our Factory.

After-Sales Service

1. Training how to instal the machine, training how to use the machine.

2 Engineers available to service machinery overseas.

Exhibition 2016

Qingzhou HongYuan Vehicles Co.Ltd has more than 10 years experience for wheel loader,cross forklift,sugarcane loader,dump and other machine.Offer OEM service for domestic trading company and oversea company,our machines have exported to more than 30 countries over the wold.Like Germany,Sweden,Finland,France,Poland,England,Australia,South Africa ,Brazil and so on.

We have own brand"HONGYUAN"

 1.Are you factory?

Yes,we are manufacturer for wheel loader ,sugarcane loader,dump,cross forklift with more than 10 years history and have rich OEM experience for domestic trading company and oversea company ,especially Europe market,all of our machines are produced under customers' professional suggestion.

2.What is the payment terms?

We accept T/T and LC payment ,usually 30% payment for deposit and balance upon the copy B/L.We will send customer detailed photoes and vedios for loading container and shipping advice for shipment.

3.What is the warranty for your machines?

We offer 1 year warranty after receiving the mchine .And free spare parts will be added for every machine.

4.Do you have CE for your machine?

All of our machines have passed CE certificate,and they earn high reputation among our europe customers.

5.Where is your factory?

Our factory located in Qingzhou City,Shandong Province,China.Welcome for your visit.
