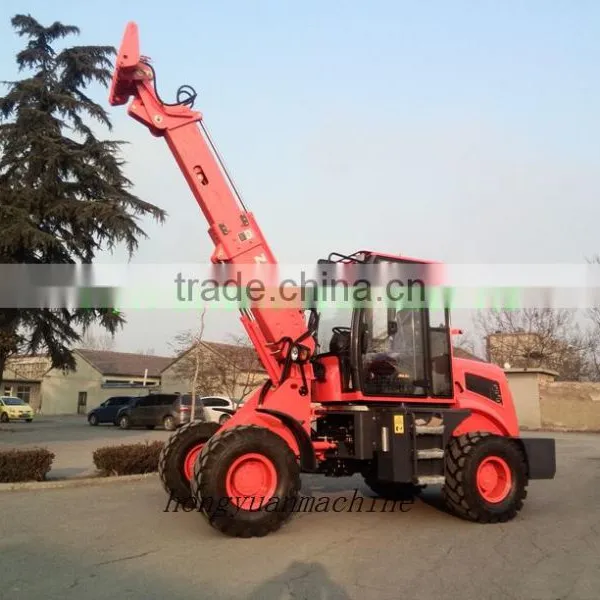

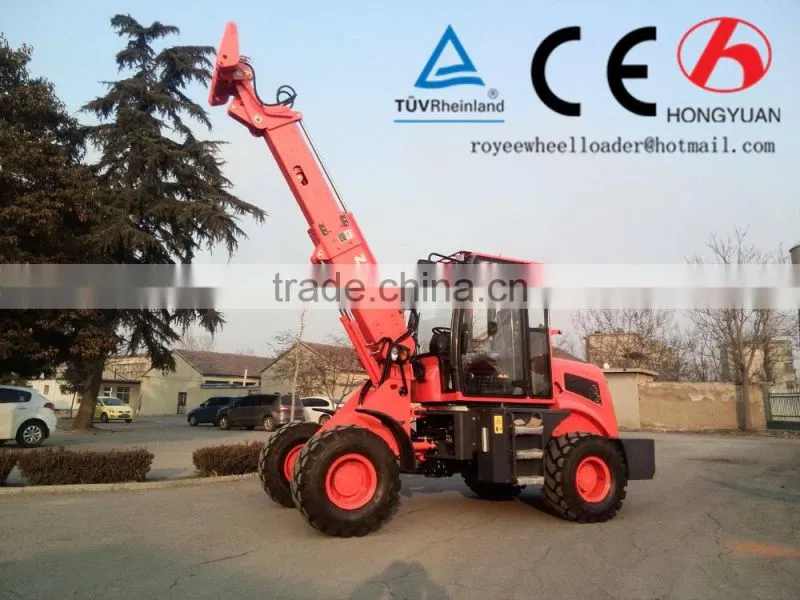

HY Telescopic Wheel Loader ,Real Manufacturer product!
1 .Main advantage :
(1)Boom max lifting height reach 4.1m ,increase the working scope.
(2) Good articulated structure and axle transmission design improve the pass ability.
(3) Quick coupling system, joystick and buttons makes the operating easy and convenient.
2. Standard configuration:
Standard Bucket .Euro iii Engine.Wheel Reduction Axle.LED Work Light.Quick Hitch.Varta Anti-free Battery.Hydraulic Joystick.CE/TUV Certificate.220v Engine Preheater. Video For Backward.Luxury Cabin.E-mark seat.Adjustable Steering Wheel.Lock for Lifting and Steering Cylinder.Tipping Cabin.Floating Function.Easy-damaged Spare Parts.
3.Specification of ZL15F Telescopic loader
1.0 Engine Details
(1)Engine model:Euro III Xinchai 498BPT
(2)Engine power:36.8KW(50.05HP)
(3)Rated speed:2200r/p.min
(4)Engine cooling way:Water cooling
(5)Fuel consumption ratio:230g/kw.h(standard working condition)
(6)Engine type:In-line arrangement,4 cycle diesel Engine
2.0 Bucket
(1)Bucket Capacity:0.7m3
(2)Bucket width:1700mm
(3)Bucket type:Heavy-duty bolt on teeth
(4)Rated Load:1500kg including attachment
3.0 Overall Dimensions
(1)Overall length:5780mm
(2)Overall Height:2730mm
(3)Overall Width:1970mm
(4)Max.lifting Height:4100mm
4.0 Type
(1)Model:20.5-16,12ply
(2)Width:307mm
(3)Diameter:831mm
5.0 Brake System
(1)Service Brake:Four Wheel disc brake
(2)Parking Brake:Hand operated
6.0
(1)Transmission System: Hydraulic converter+drive shaft+axles
(2)Wheelbase:2400mm
(3)Track:1345mm
(4)Rated Loading Weight:1500kg(Include the bucket)
(5)Operating Weight:4500kg
(6)System Pressure:16Mpa
(7)Hydraulic output:96L/min
(8)Max.Height to the pin:4200mm
(9)Braking Type:Air braking
(10)Axle:with hub reducer

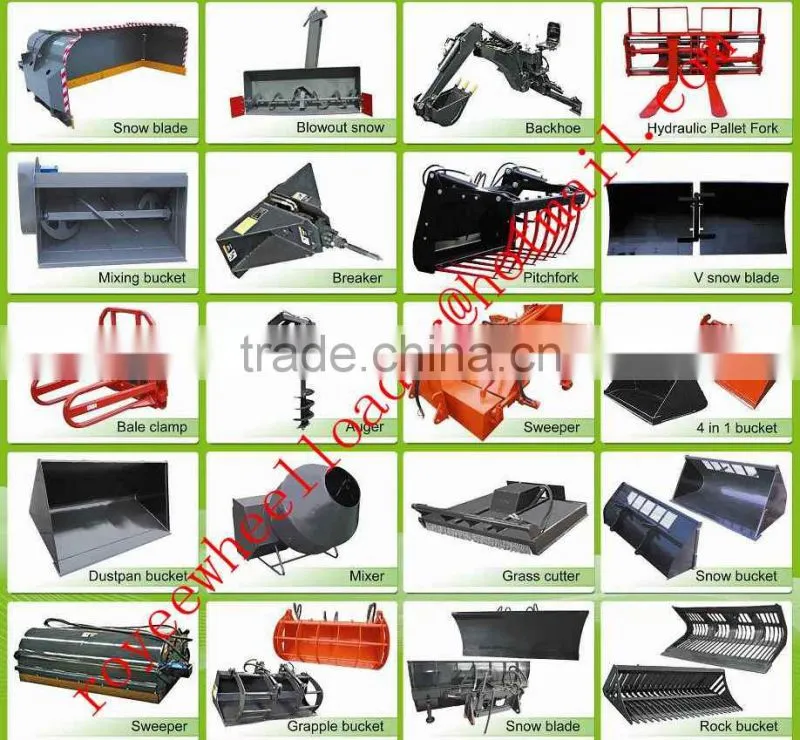

4.Additional accessories:

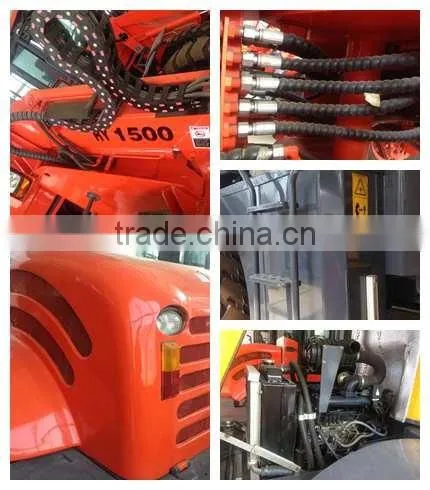

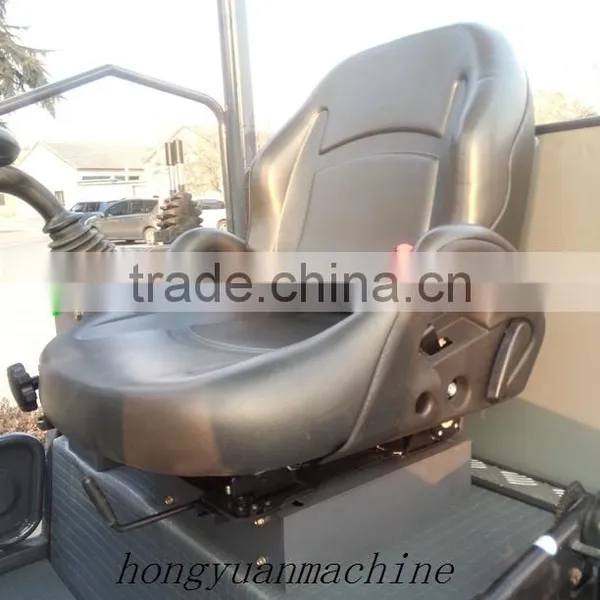

5.Details for the Telescopic loader:
6.Payment and shipping :
.Delivery time:usually 15 days after deposit.
·Payment term: T/T 30% in advance ,balance upon copy B/L.
·Packing: 1 unit in 20ft container,2 units in 40HQ container.packed with triangle wood and 10mm wire fixed.
·Warranty time:one year from receiving the machine.
·Minimum order quantity:1 unit.
The information above just for you reference ,if you want to know more about our products and have questions about them ,please contact me 24h freely ,I am delighted to serve you . Moreover , welcome to visit our factory in china.
