Telescopic Wheel Loader HY2500 Hydraulic Torque Converter Loader
US$ 13,270 - 13,270
MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
HONGYUAN
Model Number:
HY2500
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port or any Port in China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2tons Telescopic Wheel Loader With ceUS$ 12,800 - 13,000MOQ: 1 Unit -
2015 Hot Sale 800kg Wheel Loader Jc908 Front Telescopic Wheel Loader for SaleUS$ 12,800 - 13,000MOQ: 1 Unit
-
New Technology Mini Wheel Loader Telescopic for SaleUS$ 12,800 - 13,000MOQ: 1 Unit
-
China Supplier Low Price 2 Ton Loader Telescopic Handler for SaleUS$ 12,800 - 13,000MOQ: 1 Unit
-
China Supplier Front Telescopic Wheel Loader Wholesale With ceUS$ 12,800 - 13,000MOQ: 1 Unit
Condition
New
Brand Name
HONGYUAN
Model Number
HY2500
Place of Origin
Shandong, China
Type
Front Loader
Moving Type
Wheel Loader
Dimension(Long * Breadth * High)
5800*2150*2750mm
Rated Load
2500kg
Certification
CE ISO TUV
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas
Product Description
HongYuan Telescopic Wheel Loader ,Real Manufacturer Product!
Performance
1. Rated Load 2000 kg-2500kg
2. Total Weight 5230 kg
3. Rated Bucket Capacity 1.0 m3
4. Bucket Width 2150mm
5. Max. Breakout Force 60 KN
6. Max. Gradeability 30°
7. Max. Dumping Height (fully raised height to the pin) 4500 mm
8. Raising Time < 5.0s
9. Overall Dimensions (L x W x H) 5800*2150*2750 mm
10. Min. Turning Radius 4950 mm
Engine
2. Total Weight 5230 kg
3. Rated Bucket Capacity 1.0 m3
4. Bucket Width 2150mm
5. Max. Breakout Force 60 KN
6. Max. Gradeability 30°
7. Max. Dumping Height (fully raised height to the pin) 4500 mm
8. Raising Time < 5.0s
9. Overall Dimensions (L x W x H) 5800*2150*2750 mm
10. Min. Turning Radius 4950 mm
Engine
11. Model DONGFANGHONG YT4B2-24
12. Type Four-cylinder, Inline, Water-cooled, Four-stroke Diesel Engine
13. Rated Power 60 kW
14. Rated Speed 2400 rpm
15. Min. Fuel Consumption Ratio ≤ 251.6 g/kW·h
Transmission System
12. Type Four-cylinder, Inline, Water-cooled, Four-stroke Diesel Engine
13. Rated Power 60 kW
14. Rated Speed 2400 rpm
15. Min. Fuel Consumption Ratio ≤ 251.6 g/kW·h
Transmission System
16. Hydraulic Torque Converter ZL280 Integrated Hydraulic Torque Converter
17. Gear Shift 1 Forward, 1 Reverse, 1 High Speed, 1 Low Speed
18. Max. Speed 25 km/h
Drive Axle
17. Gear Shift 1 Forward, 1 Reverse, 1 High Speed, 1 Low Speed
18. Max. Speed 25 km/h
Drive Axle
19. Model of Axle ZL20 Hub Reduction Axle (big)
20. Wheel Tread 1500 mm
21. Wheel Base 2350 mm
Drive
20. Wheel Tread 1500 mm
21. Wheel Base 2350 mm
Drive
22. Mode 4-wheel Drive
Brake System
Brake System
23. Service Brake Foot Pedal Vacuum Booster, Air Over Hydraulic Caliper Disc Brake on 4 Wheels
24. Parking Brake Hand Lever Flexible Shaft Controlled Disc Brake
Tyre
24. Parking Brake Hand Lever Flexible Shaft Controlled Disc Brake
Tyre
25. Type Specification 16/70-20-16PR
26. Front Tyre Pressure 0.40 Mpa
27. Rear Tyre Pressure 0.35 Mpa
26. Front Tyre Pressure 0.40 Mpa
27. Rear Tyre Pressure 0.35 Mpa
Main Features

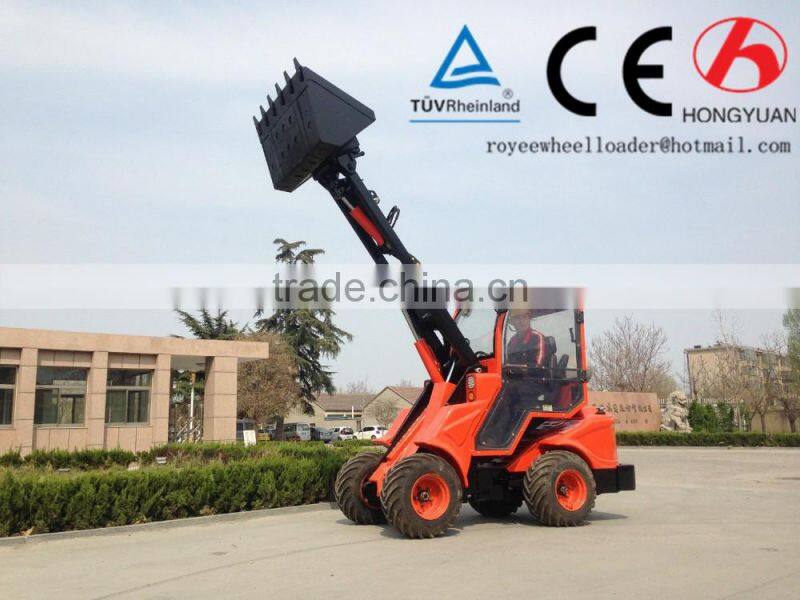

(1)Boom max lifting height reach 4.5m ,increase the working scope.
(2) Good articulated structure and axle transmission design improve the pass ability.

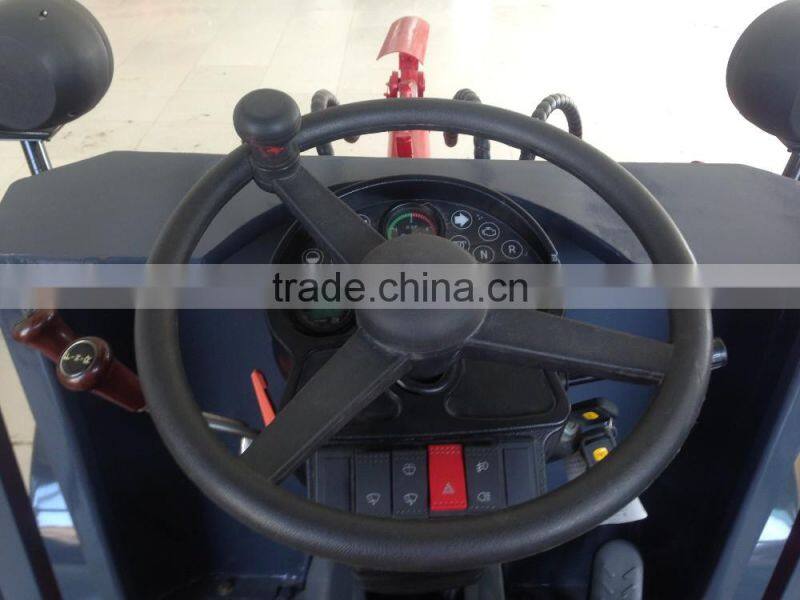

(3) Quick coupling system, joystick and buttons makes the operating easy and convenient.

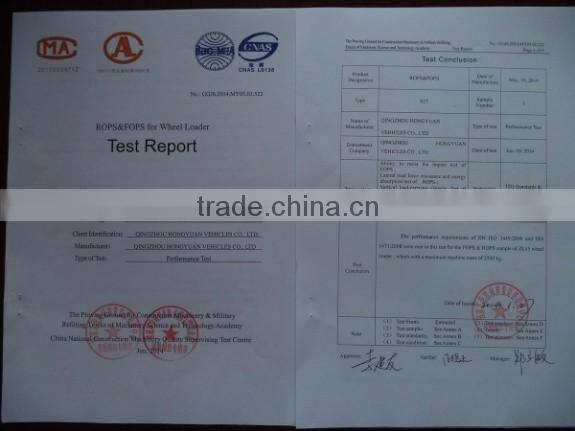

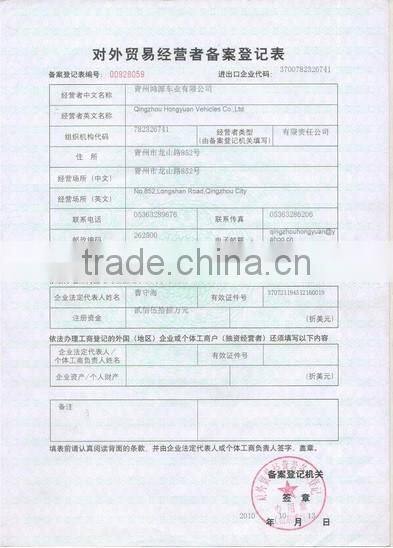

Certifications

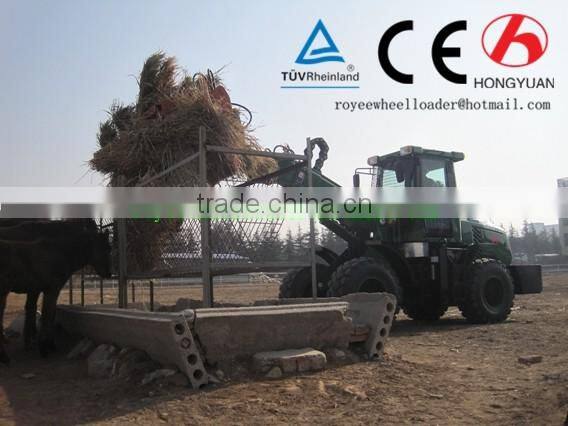

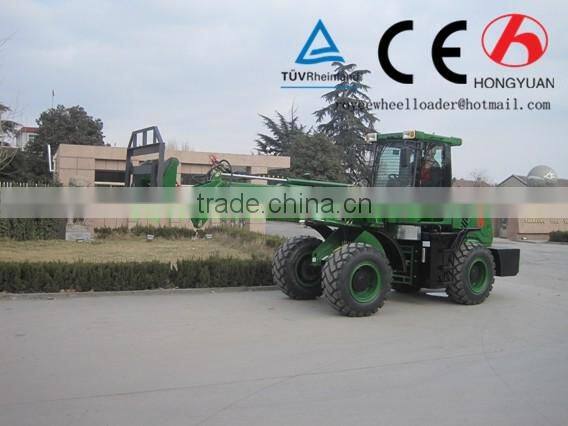

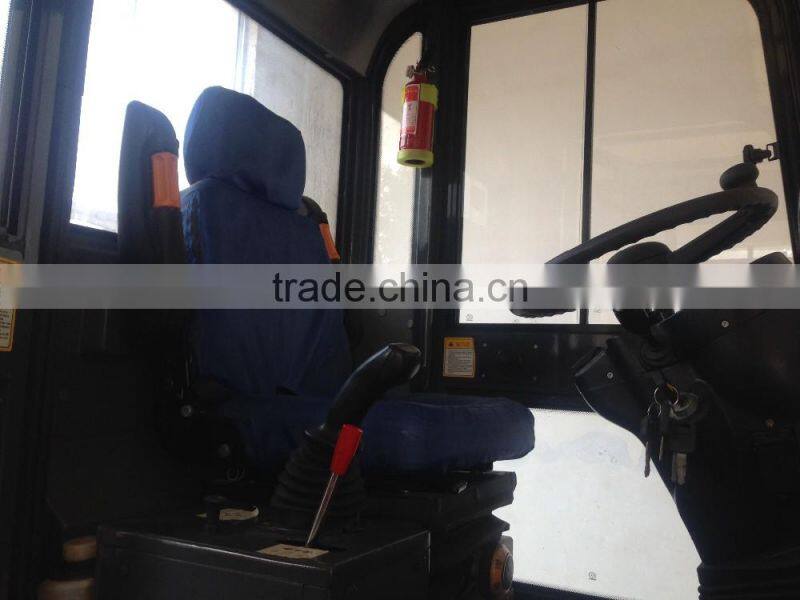

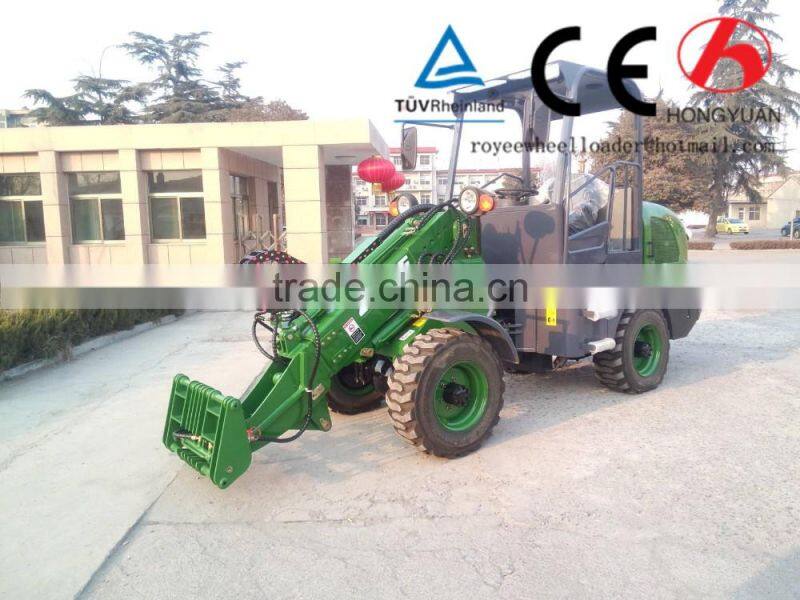

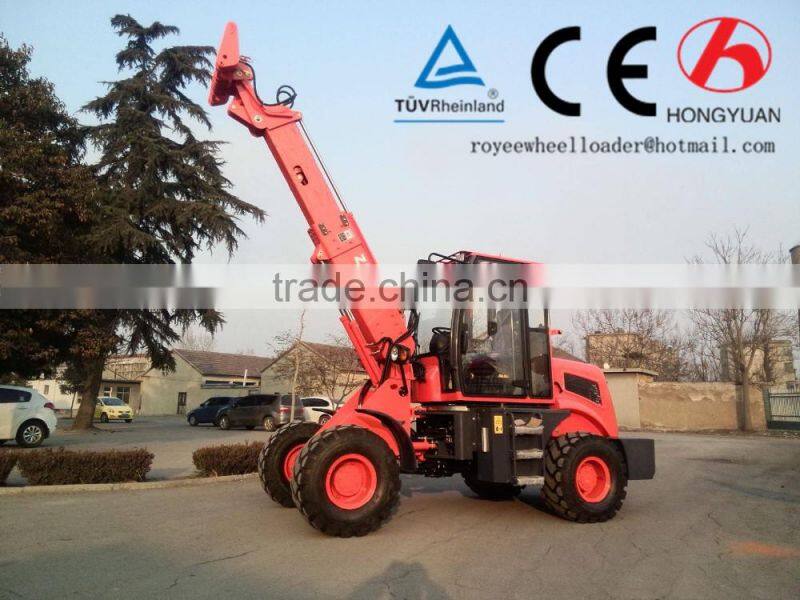

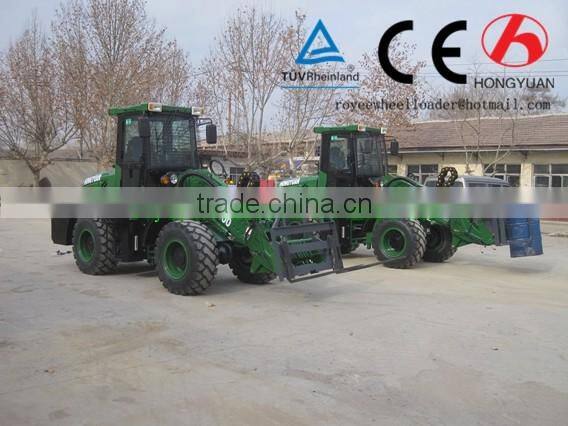

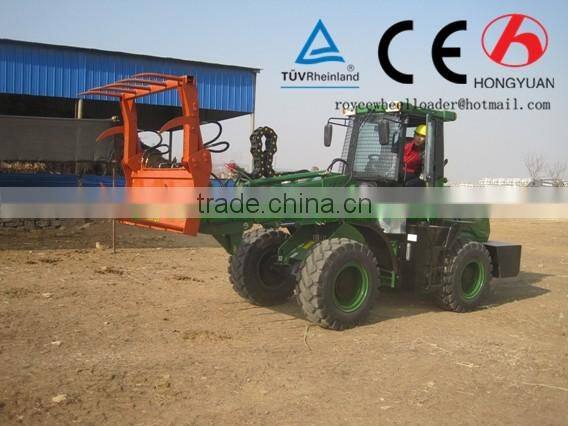

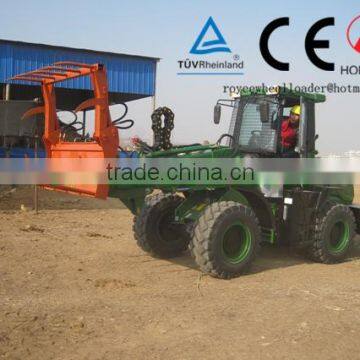

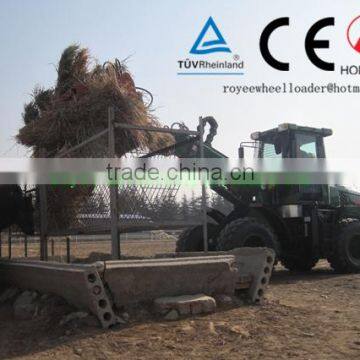

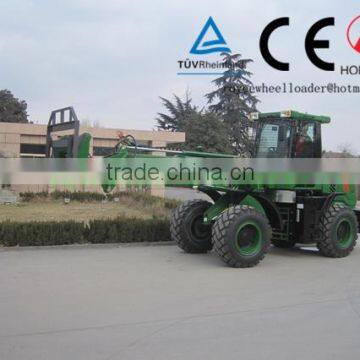

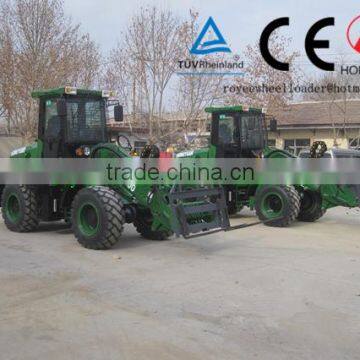

Photoes in Detail
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.

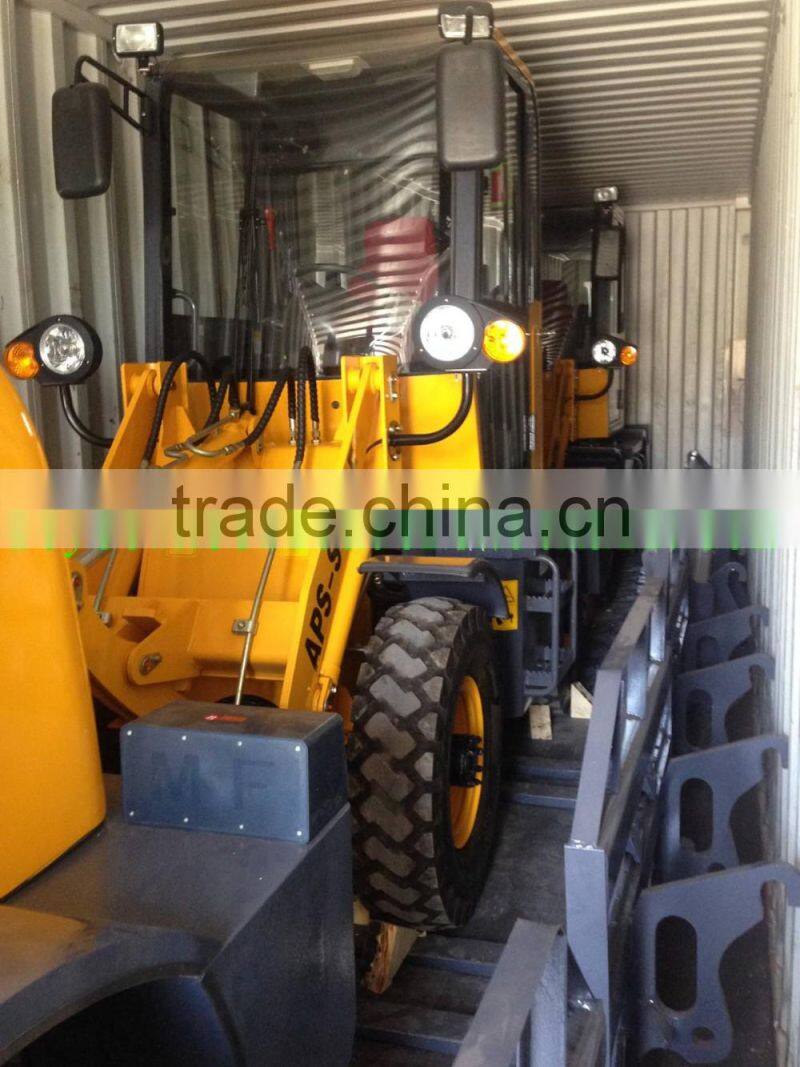

Packing & Delivery
