6 Ton Front Site Dumper 4WD China Manufacturer

6 Ton Front Site Dumper 4WD China Manufacturer thumbnail-1
6 Ton Front Site Dumper 4WD China Manufacturer thumbnail-2
6 Ton Front Site Dumper 4WD China Manufacturer thumbnail-3
6 Ton Front Site Dumper 4WD China Manufacturer photo-1
6 Ton Front Site Dumper 4WD China Manufacturer photo-2
6 Ton Front Site Dumper 4WD China Manufacturer photo-3
US$ 12,000 - 13,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
HONGYUAN
Model Number:
DP60
Contact Supplier Request Quote Chat Now
Qingzhou Hongyuan Vehicles Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Brand Name HONGYUAN
Model Number DP60
Place of Origin Shandong, China
Type Other
Moving Type Wheel Loader
Dimension(Long * Breadth * High) 5000*2200*3100mm
Rated Load 6000kg
Certification CE ISO TUV
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

Manufacturer :Qingzhou Hongyuan Vehicles Co.,Ltd.

Qingzhou,Shandong,China.

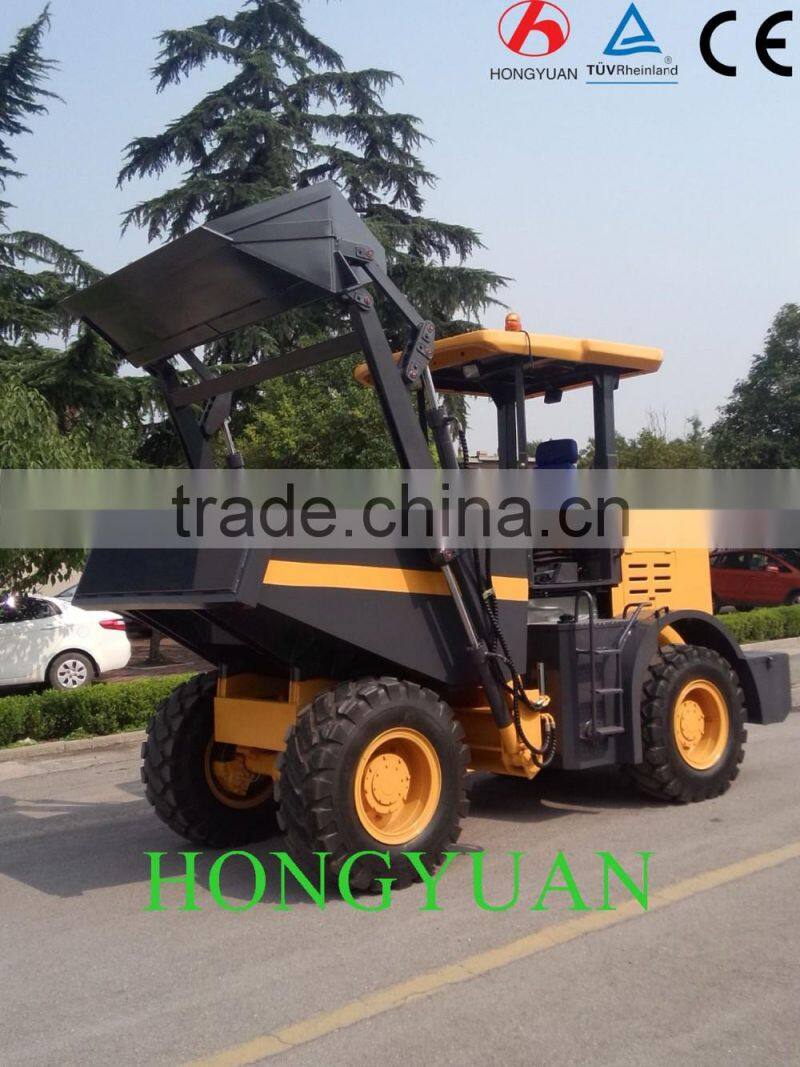

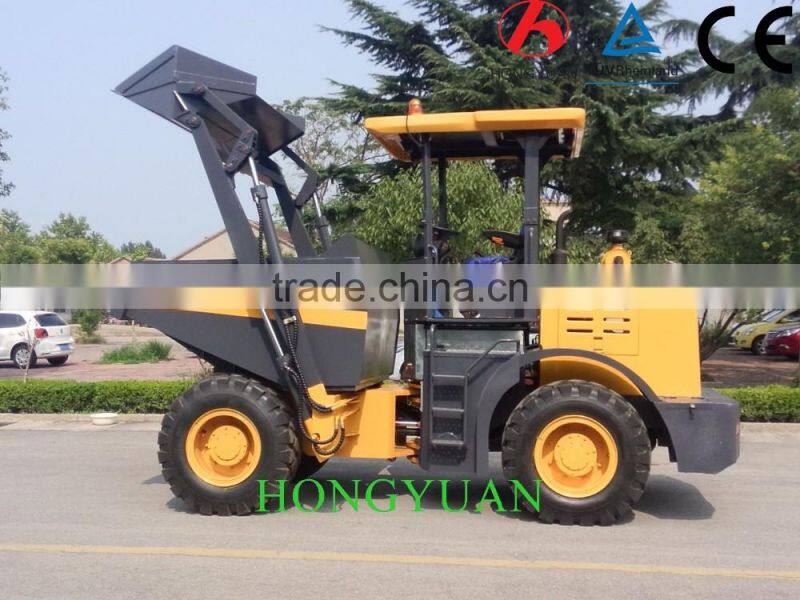

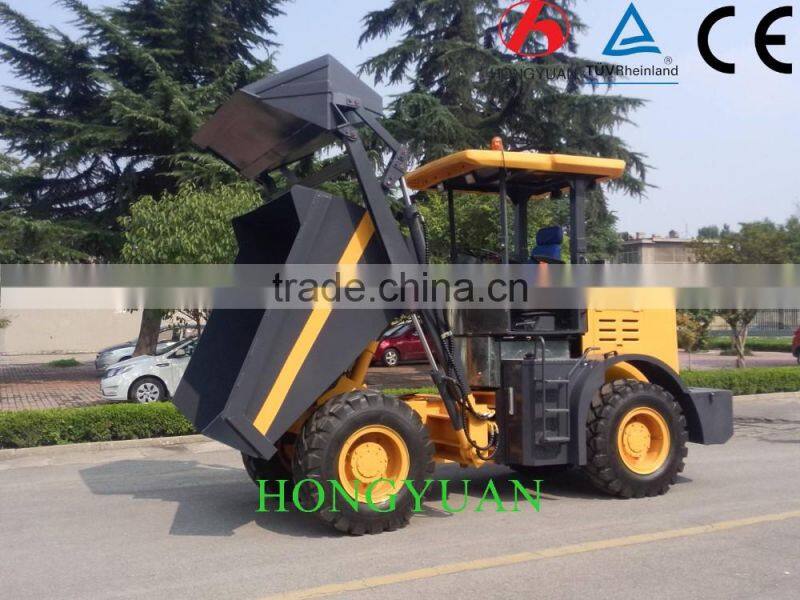

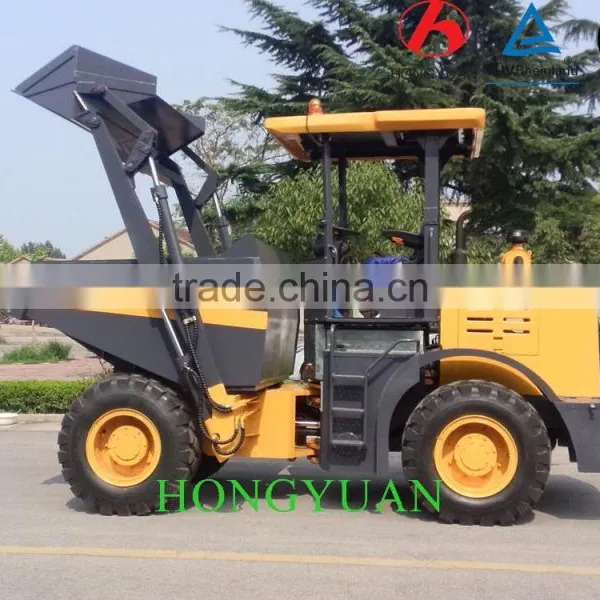

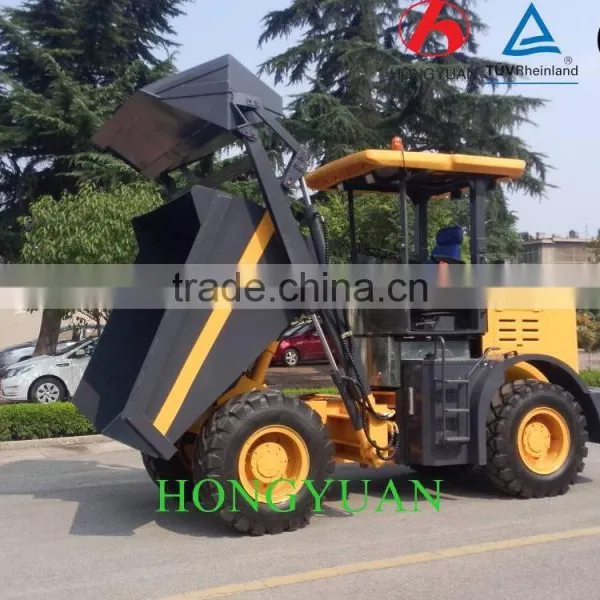

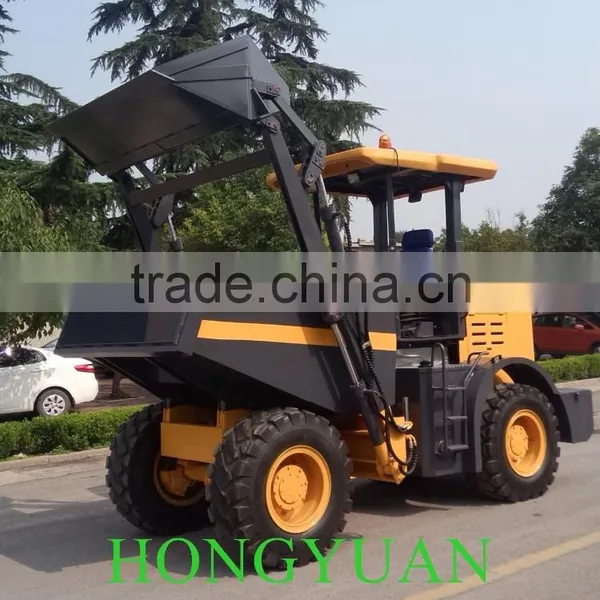

Site Dumper DP60 /Front Site Dumper

6 Ton Front Site Dumper 4WD China Manufacturer6 Ton Front Site Dumper 4WD China Manufacturer6 Ton Front Site Dumper 4WD China Manufacturer

Main performance parameters of DP60 Dumper

1

rated loading

6000kg

2

overall weight

5950kg

3

rated bucket capacity

4m3

4

maximum tractive force

≥55KN

5

maximum breakout force

≥46KN

6

maximum grade ability

300

7

overall dimension (L×W×H)

5000×2200×3100mm

8

minimum turning radius

5750mm

9

model

Dongfanghong 4108

10

type

Vertical in-line water cooled 4-stroke diesel engine

11

No. of cylinder-bore/stroke

4—108×120mm

12

rated power

60kw-2400r/min

13

maximum torque

270N.m

14

min fuel-consume ratio

≤243g/kw.h

15

torque converter

YJ—280A

16

gearbox mode

Counter shaft power-shift

17

gear shift

2 forward shift  2 reverse shift

18

maximum speed

24km/h

19

main reducing mode

Circular Arc Bevel gear, single stage

20

decelerating mode

Single stage planetary type

21

wheel base (mm)

2530mm

22

wheel tread

1600mm

23

ground clearance

310mm

24

system working pressure

16MPa

25

fuel tank capacity

80L

26

service brake

air assist disc brake on 4 wheels

27

parking brake

flexible shaft operated external drum

28

type specification

16/70—20

29

front tyre pressure

0.22Mpa

30

rear tyre pressure

0.18Mpa

6 Ton Front Site Dumper 4WD China Manufacturer
