Manufacturer :Qingzhou Hongyuan Vehicles Co.,Ltd.
Qingzhou,Shandong,China.

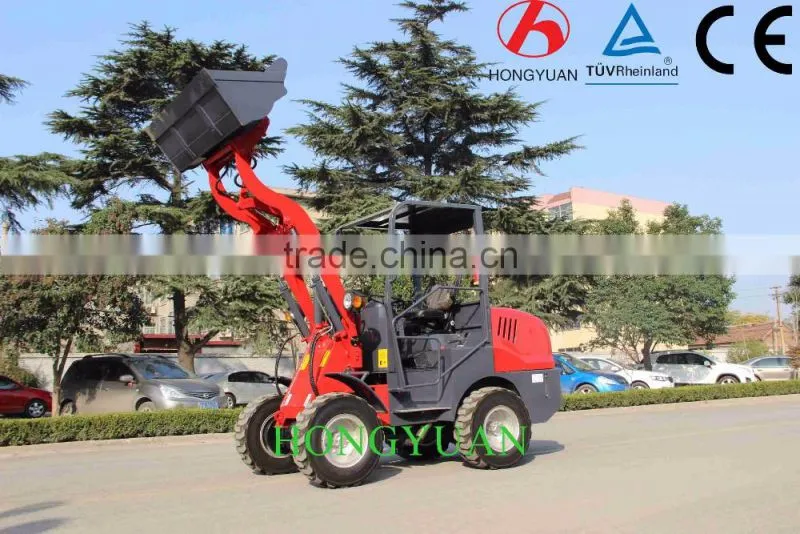

HY910 Wheel Loader with CE/Front Loader /Farm Loader
Standard:
Standard Bucket.
Quick Hitch.
Hydraulic Joystick.
CE/TUV Certificate.
220V Engine Preheater.
Luxury Cabin.
E-mark Seat.
Adjustable Steering Wheel.
Lock For Lifting And Steering Cylinder.
Easy-damaged Spare Parts.
Optional equipments:
Electric Joystick.E4 Lamp.
Extra Hydraulic Line.
Varta Anti-free Battery.
Floating Function.
PARAMETERS OF HY910
Model |
910 |
Overall Dimension(mm) |
4450/1430/2370(2000)mm |
Rated Loading(t) |
1.0 |
Operating Weight(kg) |
2690 |
Maximum Breakout Force(kN) |
36.8 |
Min.Ground Clearance(mm) |
230 |
Steering Angle(°) |
35 |
Min.Swerve Diameter(mm) |
3750 |
Forward I(km/h) |
0-7 |
Forward II(km/h) |
0-24 |
Backward I(km/h) |
0-7 |
Backward II(km/h) |
0-24 |
Engine Model |
Xinchai 490BPG(EURO III) |
Rated Power/Rated speeds(kw/r/nin) |
36.8/2400 |
Rated Bucket Capacity(m3) |
0.54. |
Total Time(S) |
9 |
Dump Height Fully Raised(mm) |
2420 |
Reach Fully Raised (mm) |
850 |
Tyre Type Specification |
12-16.5 |
Tyre Width (mm) |
270 |
Track Base (mm) |
1160 |
Wheel Base (mm) |
1710 |
Maximum Speed (km/h) |
20 |
