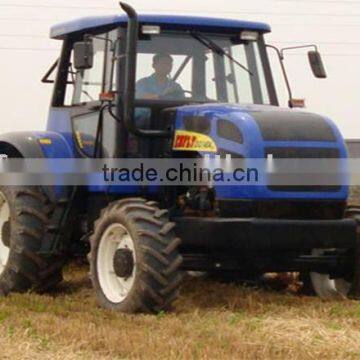

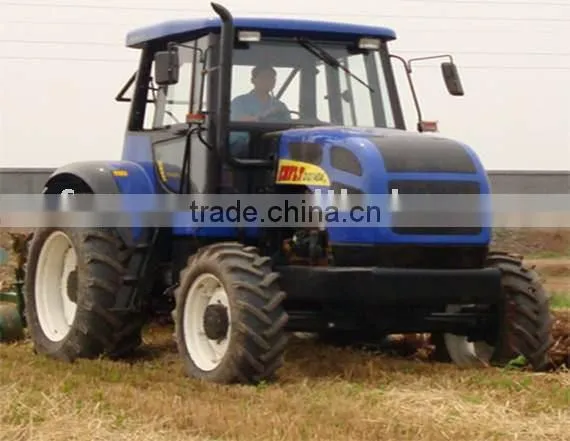

Help CenterDQ1404 Tractor
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Wheel Tractor
By wheel:
4WD
Usage:
Farm Tractor
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Type
Wheel Tractor
By wheel
4WD
Usage
Farm Tractor
Certificate
Other
Brand Name
Enfly
Model Number
DQ1404 tractor
Place of Origin
Shandong, China
Specifications
(SF GROUP)18HP to 160HP tractor, 2WD/4WD, EPA , front loader, backhoe, rotary tiller, wood chipper, snow blower, etc....| Tractor parameter | Model | DQ1404 |
| Drive type | 4WD | |
| Size(L×W×H) | 5350×2435×3230 | |
| Front trace(mm) | 1820 | |
| Rear trace(mm) | 1945 | |
| Whell base(mm) | 2700 | |
| Ground clearance(under rear axle) | 430 | |
| Rated traction force(KN) | 32340 | |
| Construction mass(Kg) | 6240 | |
| Min. turning radius(m) | 5.2±0.3 | |
| Theoretical speed(forward Km/h) | 1.78-30.1 | |
| Theoretical speed(Reverse Km/h) | 1.86-3.3 | |
| Engine specification | Model | D4114ZLGTB |
| Type | 4-cylinder,upright inline,4-strok cycle,turbocharge engine | |
| 12 hours rated power(hp) | 105 | |
| Rated fuel consumption)g/km/h) | ≤230 | |
| Rated rotary speed(rpm) | 2100 | |
| Bore ×stroke(mm) | 114×130 | |
| Total displacement(L) | 5.3 | |
| Drive system | Clutch | Dry independent clutch |
| Gear box | (7+1)×2 | |
| Main drive | Spiral bevel gears | |
| Differential | Obturation, four bevel grars | |
| Final transmissions | Planetary,reduction gear | |
| Travelling mechanism | Front tyre | 12.4-28 |
| Rear tyre | 18.4-38 | |
| Steering | Hydraulic steering | |
| Working device | Lifting capacity at 610mm behind lift point(kg) | 3100 |
| 3-point suspendion | Gategory: | |
| Rotary speed of PTO(rpm) | Gategory: | |
| Spline size | 8-Φ35 rectangular spline optional 21-Φ35 involute spline |
