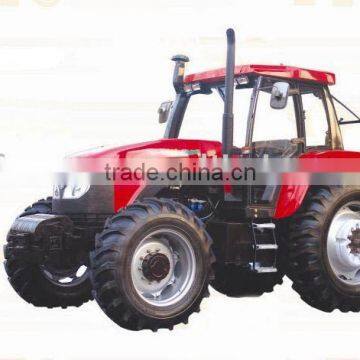

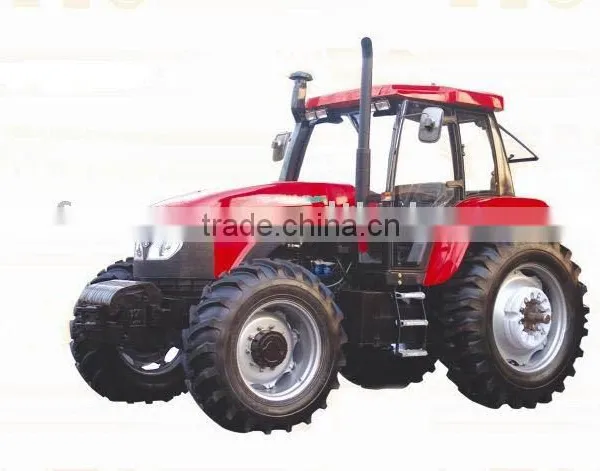

Help CenterDQ1604 Tractor
Negotiable
MOQ: 2 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Wheel Tractor
By wheel:
4WD
Usage:
Farm Tractor
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Type
Wheel Tractor
By wheel
4WD
Usage
Farm Tractor
Certificate
Other
Model Number
DQ1604 tractor
Place of Origin
Shandong, China
Specifications
(SF GROUP)18HP to 160HP tractor, 2WD/4WD, EPA , front loader, backhoe, rotary tiller, wood chipper, snow blower, etc....| Engine | |
| Model | LR6105ZWT1 |
| Type | Vertical, inter-cooled, turbo-charged, direct injection diesel engine |
| Rated power | 117.6kw |
| Rated rotation speed | 2200r/min |
| Transmission system | |
| Gears forward/Gears reverse | 12/4 |
| Speed range, forward | 2.4-30.69km/h |
| Speed range, reverse | 4.48-12.11km/h |
| Machine body | |
| Wheel base | 2848mm |
| Front wheel tread | 1704-2200mm |
| Rear wheel tread | 1620-2200mm |
| Min. ground clearance | 495mm |
| Min. turning radius | 5.4-6.2mm |
| Min. operating weight | 6500kg |
| Specific fuel consumption under rated conditions | ≤235g/kW.h |
| Tyres (front/rear) | 16.9-28/20.8-38 |
| Min. lifting capacity (at a place of 610mm behind the suspension point) | ≥35kN |
| PTO shaft rotation speed | 540/1000r/min |
| Depth control manner | Position control, floating control, draft control, and draft-position control |
| Rated tractive force | 39 kN |
| Overall dimensions | |
| L×W×H | 5200×2696×2970mm |
