F316,Trunnion Ball Valve 2" to 48" API 6D,ASME 16.34,API 608
USD $1 - $10,000
/ Piece
10 Pieces(Min.Order)
- 1000 Piece / Pieces per Month
- Shanghai
- T/T
You May Like
Product Details
Standard or Nonstandard: | Standard | Structure: | Ball | Pressure: | Medium Pressure |
Power: | Manual | Material: | Forged | Temperature of Media: | Medium Temperature |
Media: | Oil | Port Size: | 2"-48" | Place of Origin: | Jiangsu, China |
Model Number: | Ball Valve | Brand Name: | MSV | Application: | General |
Product Description
Product Description

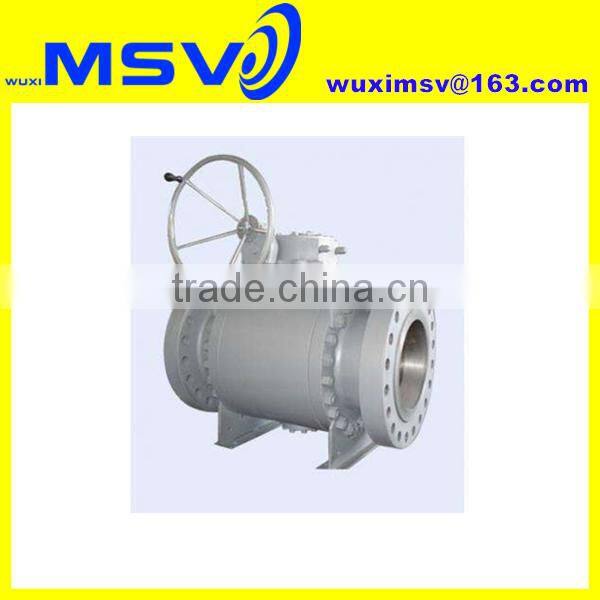

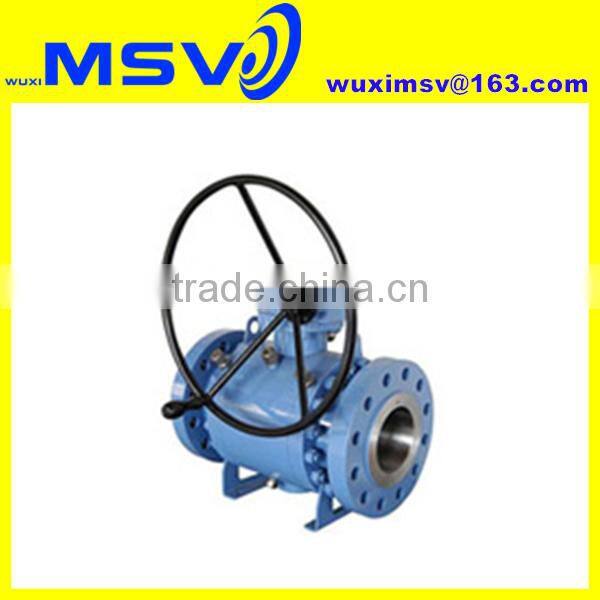

Product Name:Trunnion Ball Valve 2" to 48" API 6D,ASME 16.34,API 608
Design Standard:API 6D,ASME 16.34,API 608Body material:A105,LF2,F304,F316,F316L etc.
Ball material:13Cr,SS304,SS316,SS316L etc.
Seat material:PTFE,RPTFE,PEEK,NYLON
Class:150LB to 2500LB
Size:2" to 48"
Connection:Flanged,welded
Material:Carbon & Stainless Steel
Design Feature:
·Optional DBB design. Double block and bleed design.
·Fire safe and anti-static design. Metal to metal sealing shuts off valve flow when soft sealing materials are destroyed by fire.
·Optional stem extension . Extension stem can meet the customers' demand, to adapt to any condition.
·Secure line flow locking device. Valve is equipped with an integral locking device to secure line flow.
·Anti blow-out stem design. It has a taper on sealing surface, it can be replaced packing when the valve is open.
·Optional operation.Gear,electric or pneumatic actuator is available upon request.
·Optional DBB design. Double block and bleed design.
·Fire safe and anti-static design. Metal to metal sealing shuts off valve flow when soft sealing materials are destroyed by fire.
·Optional stem extension . Extension stem can meet the customers' demand, to adapt to any condition.
·Secure line flow locking device. Valve is equipped with an integral locking device to secure line flow.
·Anti blow-out stem design. It has a taper on sealing surface, it can be replaced packing when the valve is open.
·Optional operation.Gear,electric or pneumatic actuator is available upon request.

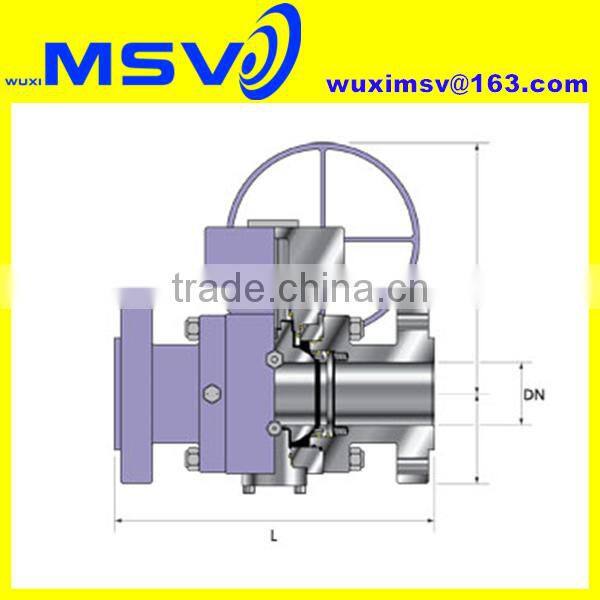

Size and Dimensions: | ||||||||||||||||||
Class | Dimensions(mm) | |||||||||||||||||
NPS(inch) | 2 | 2-1/2 | 3 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 24 | 28 | 32 | 40 | 48 | |
DN(mm) | 50 | 65 | 80 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 700 | 800 | 1000 | 1200 | |
150LB | L | 178 | 191 | 203 | 229 | 394 | 457 | 533 | 610 | 686 | 762 | 864 | 914 | 1067 | 1245 | 1372 | 1753 | 2134 |
H | 107 | 125 | 152 | 178 | 315 | 337 | 385 | 414 | 447 | 545 | 513 | 553 | 663 | 723 | 923 | 1061 | 1670 | |
W | 400 | 400 | 400 | 400 | 500 | 500 | 500 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 1400 | 1400 | |
300LB | L | 216 | 241 | 283 | 305 | 403 | 502 | 568 | 648 | 762 | 838 | 914 | 991 | 1143 | 1346 | 1524 | 1956 | 2388 |
H | 107 | 125 | 152 | 178 | 315 | 329 | 387 | 433 | 440 | 503 | 515 | 588 | 674 | 828 | 906 | 1063 | 1670 | |
W | 400 | 400 | 400 | 400 | 500 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 1400 | 1400 | 1400 | 1400 | |
600LB | L | 292 | 330 | 356 | 432 | 559 | 660 | 787 | 838 | 889 | 991 | 1092 | 1194 | 1397 | 1549 | 1778 | 2337 | 2540 |
H | 107 | 125 | 152 | 178 | 306 | 366 | 385 | 438 | 454 | 472 | 573 | 598 | 759 | 836 | 915 | 1212 | 1568 | |
W | 400 | 400 | 400 | 400 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 1400 | 1400 | 1400 | 1400 | 1400 | |
900LB | L | 368 | 419 | 381 | 457 | 610 | 737 | 838 | 965 | 1029 | 1130 | 1219 | 1321 | 1549 | 1753 | 2032 | 2410 | 2620 |
H | 123 | 136 | 185 | 225 | 325 | 355 | 450 | 520 | 450 | 549 | 590 | 710 | 795 | 880 | 1080 | 1361 | 1568 | |
W | 400 | 400 | 400 | 400 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 | |
1500LB | L | 368 | 419 | 470 | 546 | 705 | 832 | 991 | 1130 | 1257 | 1384 | 1537 | 1664 | 2043 | - | - | - | - |
H | 154 | 169 | 187 | 217 | 328 | 410 | 467 | 567 | 560 | 614 | 750 | 835 | 1029 | - | - | - | - | |
W | 400 | 400 | 600 | 600 | 700 | 700 | 700 | 700 | 700 | 700 | 1400 | 1400 | 1400 | - | - | - | - | |
2500LB | L | 451 | 508 | 578 | 673 | 914 | 1022 | 1270 | 1422 | 1540 | 1567 | 1825 | 1875 | 2257 | - | - | - | - |
H | 174 | 198 | 224 | 268 | 371 | 420 | 540 | 638 | 663 | 764 | 847 | 867 | 1060 | - | - | - | - | |
W | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 1400 | 1400 | 1400 | - | - | - | - | |
