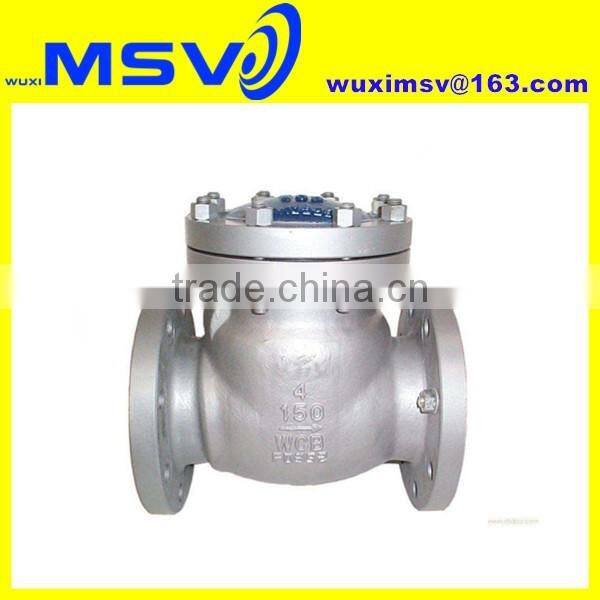

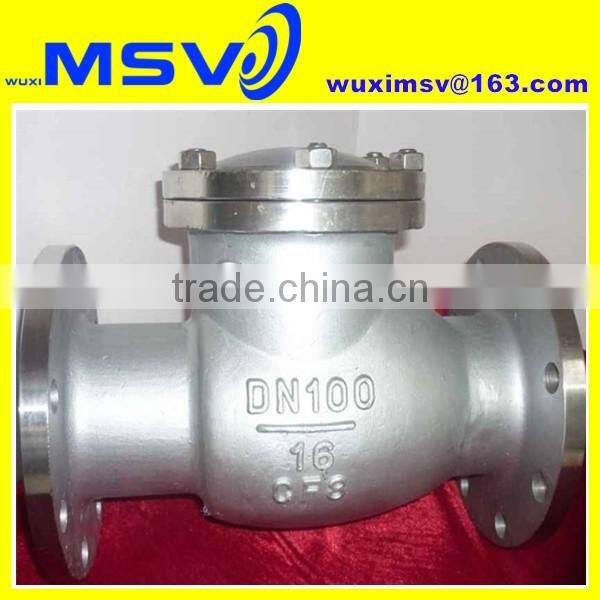

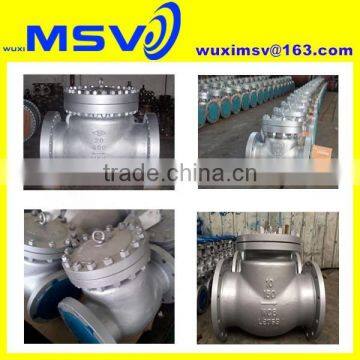

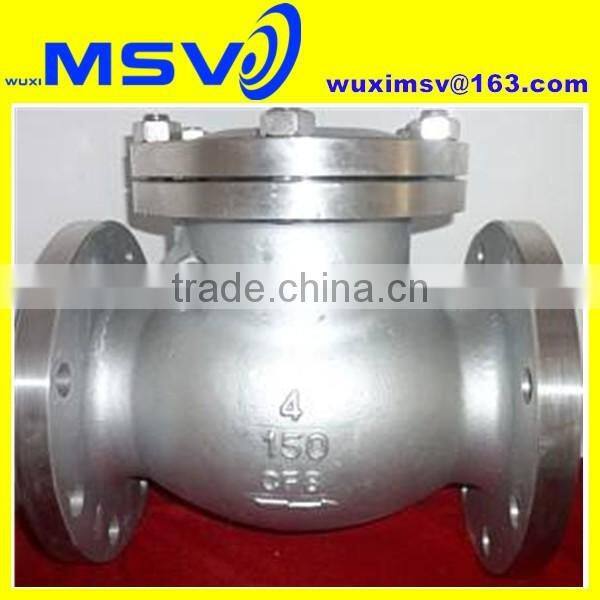

BS 1868,Check Valve 1/2" to 36" BS 1868,ASME B16.34 ,API 6D

BS 1868,Check Valve 1/2" to 36" BS 1868,ASME B16.34 ,API 6D thumbnail-1
BS 1868,Check Valve 1/2" to 36" BS 1868,ASME B16.34 ,API 6D thumbnail-2
BS 1868,Check Valve 1/2" to 36" BS 1868,ASME B16.34 ,API 6D thumbnail-3
BS 1868,Check Valve 1/2" to 36" BS 1868,ASME B16.34 ,API 6D thumbnail-4
BS 1868,Check Valve 1/2" to 36" BS 1868,ASME B16.34 ,API 6D thumbnail-5
BS 1868,Check Valve 1/2" to 36" BS 1868,ASME B16.34 ,API 6D thumbnail-6
BS 1868,Check Valve 1/2" to 36" BS 1868,ASME B16.34 ,API 6D photo-1
BS 1868,Check Valve 1/2" to 36" BS 1868,ASME B16.34 ,API 6D photo-2
BS 1868,Check Valve 1/2" to 36" BS 1868,ASME B16.34 ,API 6D photo-3
BS 1868,Check Valve 1/2" to 36" BS 1868,ASME B16.34 ,API 6D photo-4
BS 1868,Check Valve 1/2" to 36" BS 1868,ASME B16.34 ,API 6D photo-5
BS 1868,Check Valve 1/2" to 36" BS 1868,ASME B16.34 ,API 6D photo-6
US$ 1 - 10,000 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Check
Pressure:
Medium Pressure
Contact Supplier Request Quote Chat Now
Wuxi MSV Import And Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Standard or Nonstandard Standard
Structure Check
Pressure Medium Pressure
Power Hydraulic
Material Casting
Temperature of Media Medium Temperature
Media Oil
Port Size 1/2"-36"
Place of Origin Jiangsu, China
Model Number Check Valve
Brand Name MSV
Application Other, Oil and Gas,Chemical
Product Description
Product Name:Check Valve 1/2" to 36" BS 1868,ASME B16.34 ,API 6D
Design Standard:BS 1868,ASME B16.34 ,API 6D
Body material:WCB,LCB,CF8,CF8M,CF3M etc.
Sealing face type:13Cr/13Cr,13Cr/STL,STL/STL,304/304,316/316,316/STL etc.
Class:150LB to 2500LB
Size:1/2" to 48"
Connection:Flanged,welded
Material:Carbon & Stainless Stee
 BS 1868,Check Valve 1/2" to 36" BS 1868,ASME B16.34 ,API 6DBS 1868,Check Valve 1/2" to 36" BS 1868,ASME B16.34 ,API 6DBS 1868,Check Valve 1/2" to 36" BS 1868,ASME B16.34 ,API 6DBS 1868,Check Valve 1/2" to 36" BS 1868,ASME B16.34 ,API 6D


BS 1868,Check Valve 1/2" to 36" BS 1868,ASME B16.34 ,API 6D
BS 1868,Check Valve 1/2" to 36" BS 1868,ASME B16.34 ,API 6D

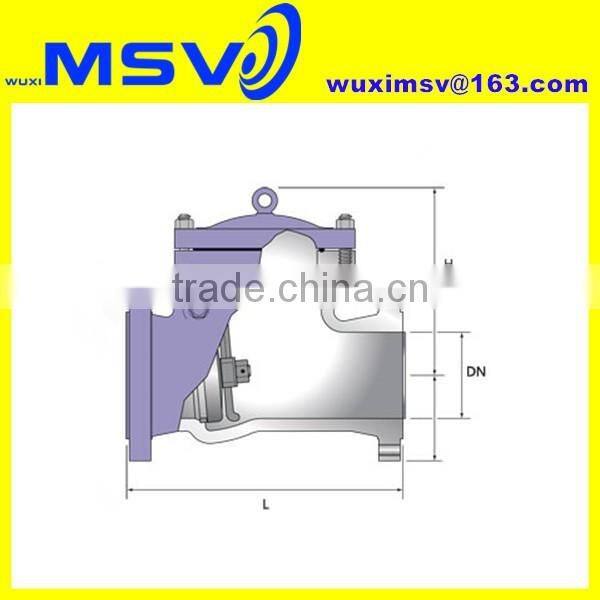

Size and Dimensions:
ClassDimensions(mm)
NPS(inch)22-1/23456810121416182024283236
DN(mm)5065801001251502002503003504004505006007008001000
150LBL2032162412923303564956226987878649789781295144817271955
H16517519021524026532036541546049555059065083810161092
300LBL26729231835640044453362271183886497810161346149917272083
H19020522024527029533042048053558561568578588910161143
600LBL2923303564325085596607878388899911092119413971600--
H2102302552953353654205055456006507358009651066--
900LBL368419381457559610737838965102911301219132115492032--
H22524025427936038153355860973676286393910661193--
1500LBL36841947054667370583299111301257138415371664----
H26524030334038043050060578583095010801145----
2500LBL451508578673794914102212701422--------
H285305350410490540620705855--------
