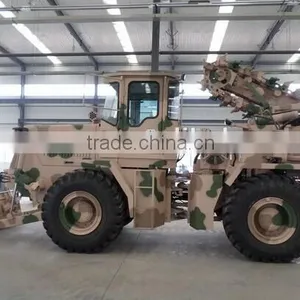

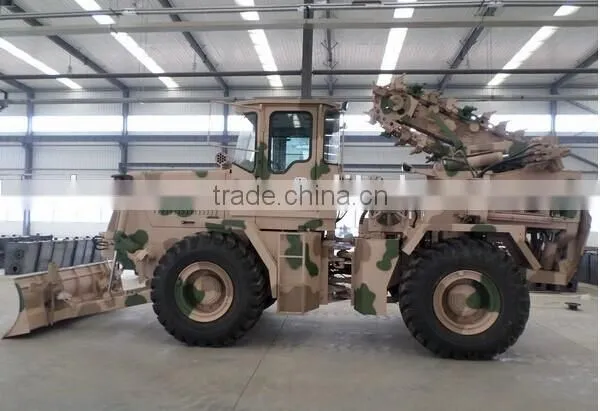

Mechanical Blasting Digging Trenches/Chain Plate Machine to Dig Trenches
US$ 280,000 - 500,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
QGMC
Model Number:
QGYT-400
Payment & Shipping
Payment Methods:
Port of Shipment:
TIANJIN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Shandong, China
Brand Name
QGMC
Model Number
QGYT-400
Specifications
military trencer machinebig power military trencher
Cummins 162KW diesel engine
Max.trenching depth 1200mm/2000mm
650mm width and 2000mm depth military trenching machine, big power military trencher
Quick Details
- Condition: New
- Brand Name: QGMC
- Model Number: Trencher
- Place of Origin: Shandong, China (Mainland)
- Type: Trencher
- Moving Type: Wheel Loader
- Dimension(Long * Breadth * High): 10800x2700x3200mm (LxWxH)
- Rated Load: 16.5 ton
- Certification: CE
- Warranty: 12 months
- After-sales Service Provided: Engineers available to service machinery overseas
- Color: customized
- MOQ: 1 unit
- Max. digging depth: 1200/2000mm
- Max. digging width: 900mm
- Engine: Cummins
- Warranty: 12 months
- Working condition: Cable assemble, highway planting
- Production time: 30 days
- Packing: RO/RO ship or Bulk ship
- Payment term: T/T or L/C
Features:
| 1) Apply to dig and ditch at range of littoral, campagna and hill, lay cable, water tube in city planning as well as construction of cropland water conservancy, dig pipeline of oil gas ect. |
| 2) Powerful, can directly dig frozen earth and efflorescent stone. |
| 3) According to the request of the customers, it could change different tools to accomplish different depth and width in the excavation. |
| 4) Work system with over power protection equipment, can adjust the distance and direction of throwing. |
Specification:
| Total operating weight | 16500kg |
| Max.grade ability | 25o |
| Total dimensions(LxWxH) | 10800x2700x3200mm |
| Engine | Cummins 6CT8.3-C215 |
| Type | Inline/water-cooling/DI/4-stroke |
| Max.torque | 872Nm/1500rpm |
| Rated power/speed | 162KW/2200rpm |
| Transmission | 6WG181 electrohydraulic controling gear |
| Gear shift | 6F/3R |
| Max.traveling speed | 60km/h |
| Tire | 20.5-25 |
| Steering system | Hinge and hydraulic steering |
| Turning angle | 30o±1 |
| Min.turning radius | 7020mm |
| Hydraulic pump | 90R075/90R100 |
| Motor | MRC1200/MRC1400 |
| Working pressure | 16MPa/20MPa |
| Service brake | Air-to-oil disc brake on 4 wheels |
| Parking/emergency brake | Drum-Type Shoe Brake,Spring Applied &Air Released |
| Max.trenching depth | 1200mm/2000mm |
| Max.trenching width | 900mm |
| Working speed | 180m/h/60-100m/h |
| Cross dimension of trench | Width=3.5m,depth=3m |
