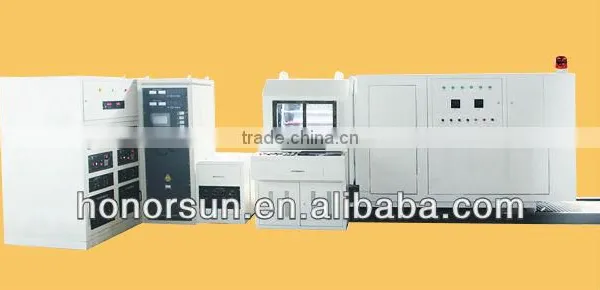

Help CenterCoating Machines/Metal Coating Machinery/Film Coating/SBD-CK High Vacuum Rolling Multifunctional Metalizer
Related Products
-
Coating Machines/Metal Coating Machinery/Film CoatingUS$ 100,000 - 300,000MOQ: 1 Set -
Coating MachinesUS$ 10,000 - 200,000MOQ: 1 Set
-
Winding Vacuum Metallizer SBDF1300US$ 180,000 - 300,000MOQ: 1 Set
-
Winding Vacuum Metallizer SBDF1800NegotiableMOQ: 1 Set
-
Rolling Vacuum Metallizer SBDF2400NegotiableMOQ: 1 Set
Specifications
Coating equipmentMetal coating machinery
Technology reliable aluminized film equipment
This series' equipment with the features of micron-tension control,running stably,anti-scratch,parallel filming of rewinder
and unwinder, film uniform, short delivery time, low consumption,easy to operate and reliable performance.
Use magnetron sputtering filming, could realize the sputtering filming on kinds of flexible substrates, as PEN,PET,OPP,PVC,
cotton textiles,chemical fabric,non-dust cloth,other flexible compound rolling material,electro conductive film,metal fabric.
The film could used as electronics films,ITO films, Auto films,building film electromagnetic shielding,static discharge
material,or the multifunctional film.Target material:gold,silver,copper,nickel,stannous,zinc,aluminum,chromium and all kinds
of metal, ITOTCOceramics and other kinds of oxide.
,Main Specification and Features
1.High vacuum molecular pumps vacuum systemUltimate Vacuum (empty,dry and clean) better than 3.0×10-4pa
2.recovery vacuum time: 10 minutes reach 4×10-1pa
3.Working vacuum :1X10-1pa~1X10-3pa
4.Max.Rolling Dia.300mm--450mm
5. the usual filming speed:1~5m/min
6. 3 sets of rectangle sputtering targets and magnetron electric power, high filming efficiency and good film uniformity.
7. Rolling system uses the high precision Servo control,with the features of stable,high speed,no scratch and end face in order.
8. Tension control adopts the digital tension control system with the features of tension and speed constant and fast action.
9. Adopts the auto/manual control system, easy to operate
10. High effective cooling metalizing drum to prevent the thermal damage of the film.
11. Gas charing uses the multiple mass flowmeter control,increasing the practicability of the machine.
12.The whole machine with the advantages of compact structure, high pumping speed,low consumption,large production, stale
running and easy to operate.
13.With rectangle ion source (according to customers' requirement )
14. Install the high performance moisture catcher system(working temperature —135°C)
15. Adopts the spectrometer and sheet resistance instrument online to control the uniformity of the film
Performance Index
1. The chamber uses the stainless steel, rewinder roll, unwinder roll, tension roll ,guide roll and filming roll;there are
motors for the rewinder roll, unwinder roll and cooling roll; there are 3 sets of windows in the vacuum chamber side so as
to easy for the detection; the chamber gate is installed on the trolley, and re-unwinder roll uses the expansion shaft to
load the material.
2.Three sets of rectangle magnetron sputtering targets,there is the water cooling type strong magnetron band,could metalize
at the same time, realize the fiber fully cover, with large power, high filming efficiency and good uniformity.
3.Vacuum system:two sets of high vacuum pumping system which molecular pumps as the main pump,and other valves,vacuum pipes
and pumps, could get the working vacuum degree(10-2~10-4Pa)
4. Gas circuit system : 4 circuits, gas multiple mass flowmeter control
5.Water cooling system: warm and cold exchange system is used for the cooling and warming to normal
temperature(temperature—20°C to +45°C ), the water pressure control and detection and alarm system.
6. Control system: manual and auto control systemMain control: vacuum unit, vacuum display, speed control, gas charging,water cooling alarm system
