Specifications
PVD Vacuum Coating Machine1,good price
2.enhance the beauty of workpieces
3,high quality
4,low consumption
Description:

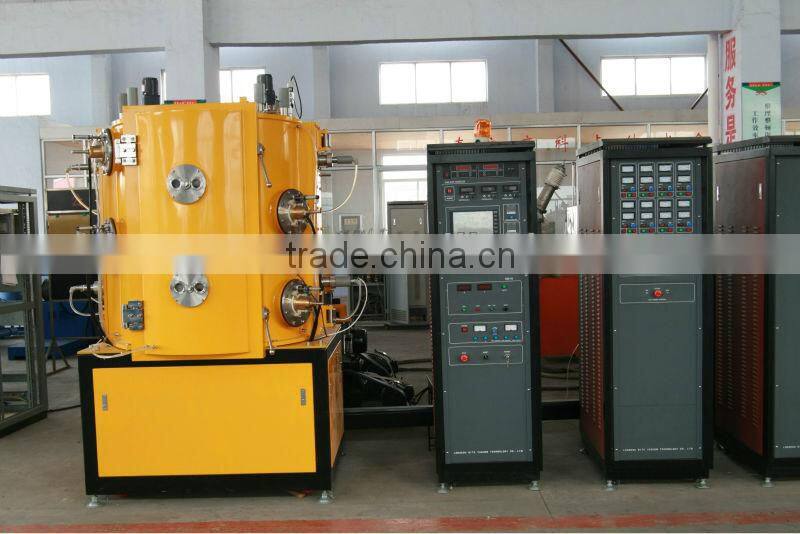

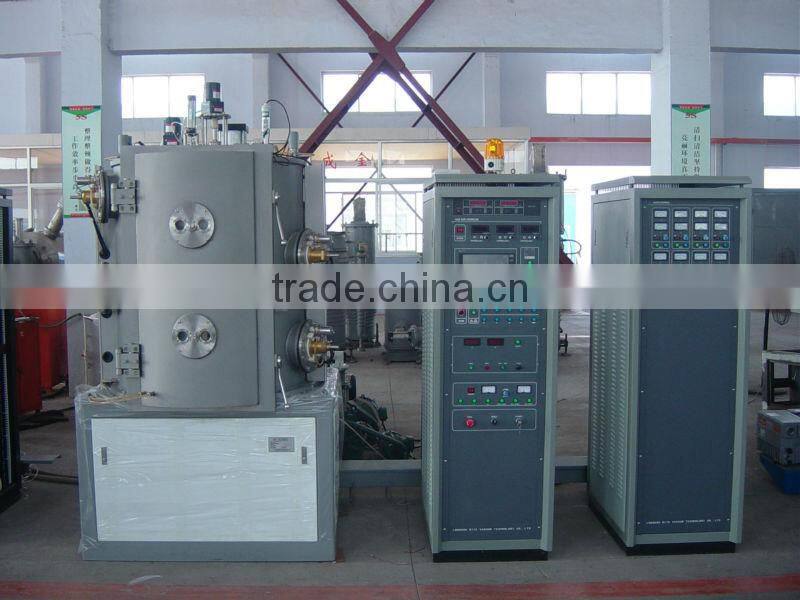

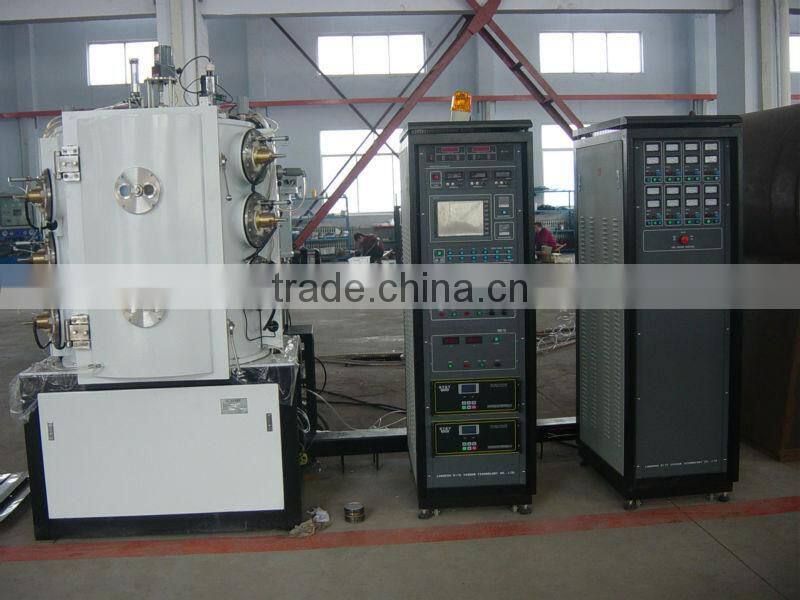

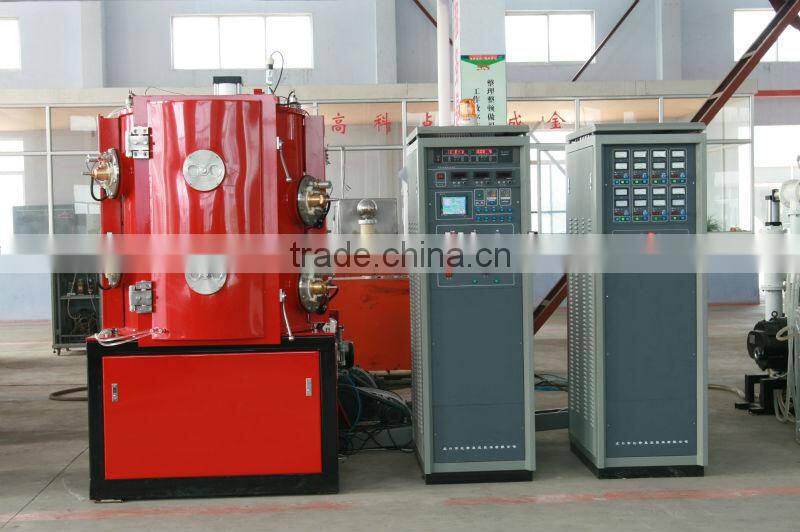

The equipment is equipment with Touch screen and PLC centralized control, a computerized automatic gear-shifting vacuum gauge, a three-flow controller, a set of contravariant arc power and four-circuit contravariant arc power, 4 side-installed heating tubes, and a PID temperature control device. It becomes a key equipment in the decoration industry widely used for plating various materials, such as TiN ,TiC ,ZrN ,CrN ,Ti ,Ni ,Cr ,Cu ,Au ,and Ag etc.
Used to process the surface of lock, watch part, hinge and hardware etc .
Ion coating gold equipment main model and parameters.
The system is equipment with a centralized control device PLC ,a computer automatic gear-shifting vacuum gauge, a three-flow controller, a PID temperature control device, four side-installed heating tube, a suit of bias power supply,15 set contra-variant arc power supply, it is special equipments for ceramic tiles industry(such as coating gold tiles, silvery tiles, imaginary color tiles) Tiles equipment main models and parameters
parameters type | 700 type | 800 type | 900 type | 1000 type |
dimension of vacuum chamber | 700×1000 | 800×1000 | 900×1000 | 1000×1000 |
pumping speed | 1×105Pa~3×10-3Pa≤20min | |||
limit vacuum | ≤1×10-3Pa | |||
system form a complete set | KT-400/2X-70 | KT-400/2X-70 | KT-500/2X-70 | KT-500/2X-70 |
workpiece system | Rotation of the planet forms(8 rotating shaft, since the amount) | |||
heating methods | Edge installation of stainless steel heating tube | |||
ion bombardment | direct current 1000V or contravariant impulse 1000V high voltage bombardment | |||
vent system | Mass flow controller control input gas | |||
Filament device | Device equipped with filament assisted deposition | |||
magnetron target amount | 2 | 2 | 2,4 | 2,4 |
Sputtering power | one intermediate frequency power supply | one or two intermediate frequency power supply | ||
working methods | plc semi-auto control or pc+plc auto control | |||
working gas | Ar N2 O2C2H2 | |||
total power | 30KW | 35KW | 45KW | 50KW |
compress air | 0.4~0.8MPa | |||
water-cooling system | hydraulic pressure/water temperature::≤25°C/≥0.25MPa(user provide for himself) | |||
