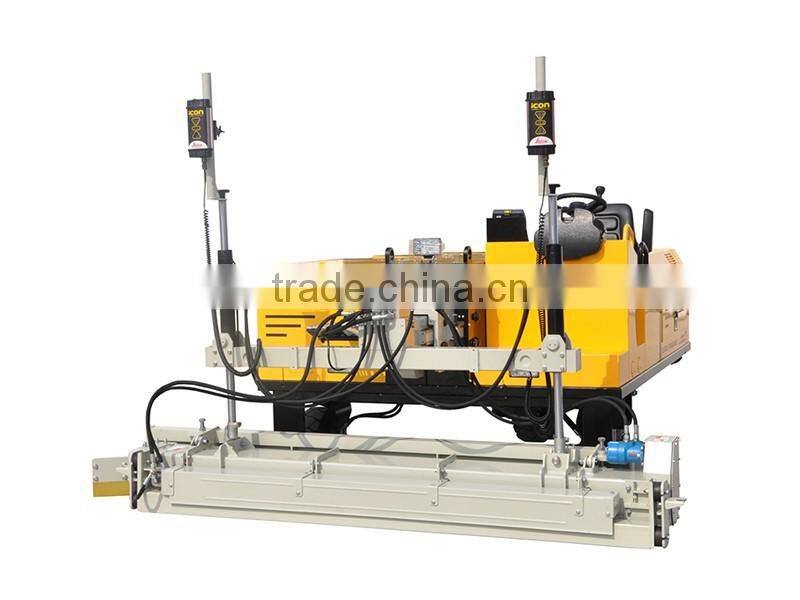

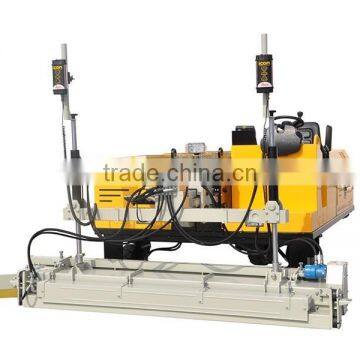

Arm type laser leveling machine
Arm type laser leveling machine is suitable for modern industrial plants, warehouses, large shopping malls and other large area concrete ground. It can improve the quality of the ground strength, flatness and levelness. It is compact in size and lightweight, smart and innovative design, so that it can not only in the complex work site more quickly and effectively, and can be used on the floor and single, double layer steel web. Can achieve a large area of the whole shop concrete floor, floor, save templates, improve efficiency.
1.Machine features

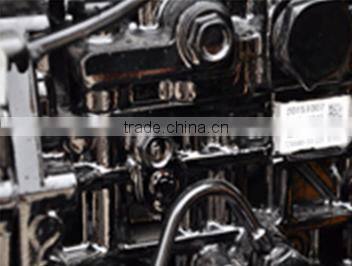

1.International famous brand, YANMAR turbocharged diesel engine, strong power, low fuel consumption

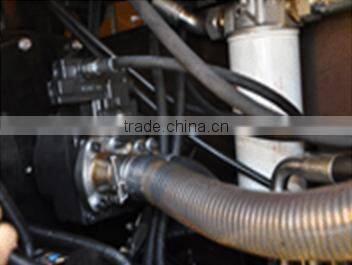

2.International famous brand, DANFOSS intelligent variable pump, can accurately drive the implementation of various actions, energy saving, high efficiency
3.German LEICA laser system, laser transmitter dual slope, and remote control. The laser is far away and stable.
4.Multifunctional operating handle, easy to use

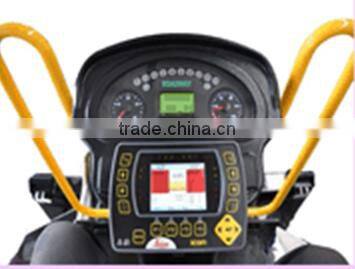

5.Large screen smart display, powerful, easy to operate

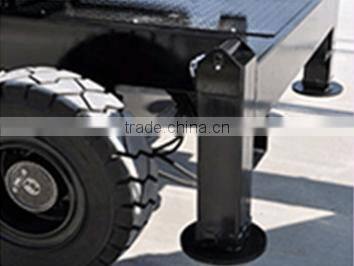

6.Hydraulic support, one button automatic balance

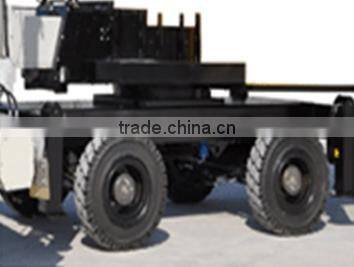

7.There are three steering modes to adapt to a variety of complex road conditions
8.Intelligent instrument for 24 hours uninterrupted monitoring of engine and hydraulic pressure
9.The leveling mechanism is automatically controlled by computer, can achieve a soft landing, to ensure the accuracy of plane
10.Bearing full closed design, avoid mixing concrete
11.The fuselage is rotated 360 degrees, and the design of soft start and soft stop function, to ensure the stability of leveling machine

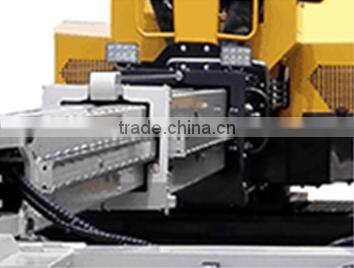

12.The finishing telescopic arm has been patented, high strength, smooth, no sway
13.High precision balance correction
14.Blade made of wear-resistant alloy steel, durable

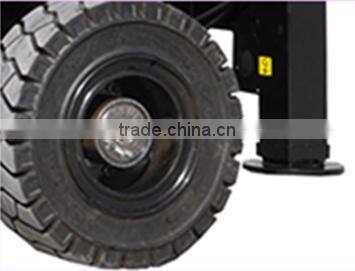

15.Solid tyre, anti piercing, long life
2.Product advantage
1.the quality of work outstanding efficiency doubled
2.laser on the point of high precision ,low error
3.better flatness and integrity
4.small size and flexible
Technical parameter
| Engine | Input maximum water pressure | 0.5pa | |
| Model | Yanmer | The whole flat | |
| Type | Diesel engine, double cylinder | Spreading way | Self leveling |
| Power | 20hp | Width | 2500mm |
| Tank volume | 60L | Spreading way | Paving |
| Lubricating oil quantity | 2.2L | power | Hydraulic motor |
| Fuel consumption | 281g/kwh | Exciting force | 500N |
| Walk | Vibration frequency | 50Hz | |
| drive | Hydraulic three drive | The whole flat height | 500mm |
| Steering mode | Rear wheel steering, three wheels can be rotated 90 degrees in situ | control accuracy | ±1.5mm |
| wheel | Non slip tire | Operation mode | |
| Leg | Three leg support | Seat position | Pre-roll |
| Travel speed | 0-5km/h | ||
| Laser control system | Forward and backward | Handle control, stepless speed change | |
| control mode | Microcomputer laser scanning | To turn to | Steering wheel controll |
| control effect | Plane, slope or double slope | Telescopic arm | Handle control, stepless speed change |
| Size and weight | Cleaning system | ||
| Max working dimensions | 3800*2800*1700mm | power | Hydraulic motor |
| Weight | 2200kg | ||
