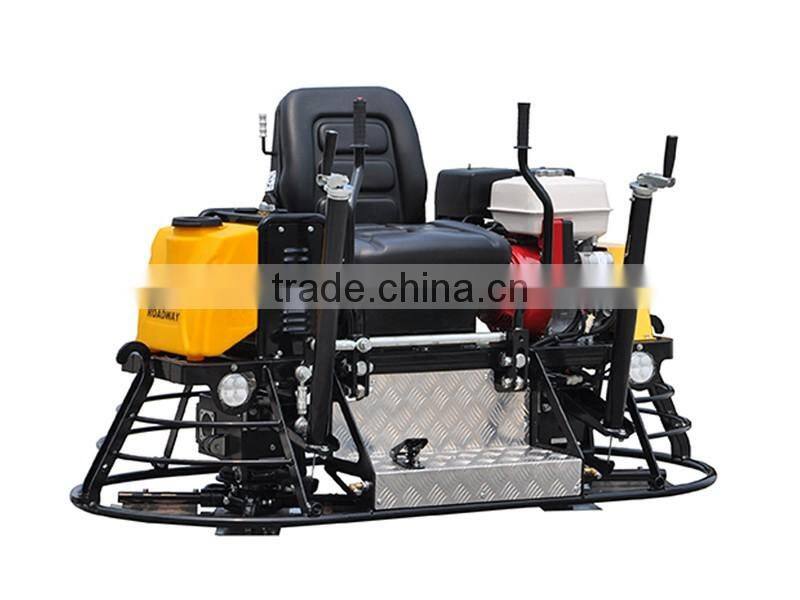

Driving Type Concrete Finishing Machine

Driving Type Concrete Finishing Machine photo-1
US$ 2,000 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
HONORSUN
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Shandong, China
Brand Name HONORSUN
Model Number HSMG230
Power Source Gasoline
Power(W) 13hp
Weight 296kg
Dimension(L*W*H) 1820*940*1100mm
Certification ISO CE
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

Driving type concrete finishing machine

Product Description

 It is used to extract slurry, compact, smooth and polish the concrete surface.

Honda engine, excellent performance, easy to start-up

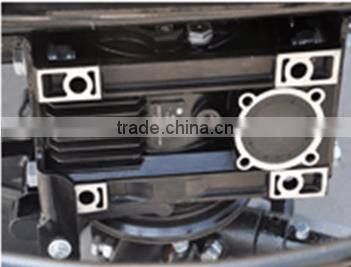

The transmission is with big modulus and al-alloy case, free from maintenance
Trowel supporting arm is made of heat-treated steel with super diameter carbon structure
Scientific designed centrifugal clutch gear unit with large torque and long life

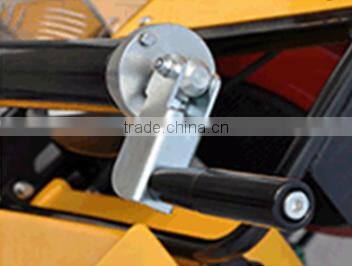

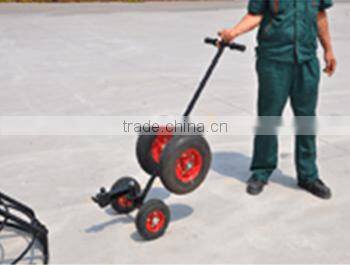

Adjusting height mechanism of handrail, storage erectly, easy to transport
Plastic treated, anti-rust, anti-corrosion and beautiful.



Driving type concrete finishing machine

Details

 Driving type concrete finishing machineDriving type concrete finishing machineDriving type concrete finishing machineDriving type concrete finishing machineDriving type concrete finishing machineDriving type concrete finishing machine

Technical parameter



work   Power  13hp/3600rpm
Operation mode Driving style Tank volume 6.5L
Working width  60in. Lubricating oil amount  1.1L
Working speed  80-130rpm Fuel consumption  313g/kWh
Spatula   Size specification
The number of spatula 8 Total length  1750mm
The size of the spatula 270×150mm Total width  870mm
Fixed hole spacing 4.75 in Total height  940mm
engine   Packing size  1820 x 940 x 1100mm
Model    weight
type Gasoline engine, air-cooled 4 stroke, single cylinder OHV. Working weight  296kg

Driving type concrete finishing machineDriving type concrete finishing machineDriving type concrete finishing machine
