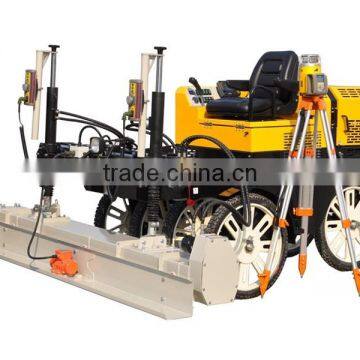

concrete laser leveling machine
Driving type laser leveling machineis suitable for modern industrial plants, warehouses, large shopping malls and other large area concrete ground. It can improve the quality of the ground strength, flatness and levelness. It is compact in size and lightweight, smart and innovative design, so that it can not only in the complex work site more quickly and effectively, and can be used on the floor and single, double layer steel web. Can achieve a large area of the whole shop concrete floor, floor, save templates, improve efficiency.
Machine features

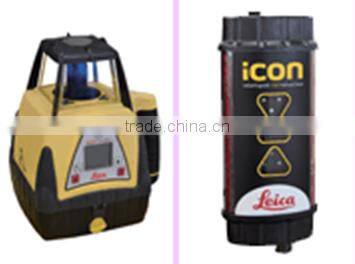

1.Switzerland LEICA Laser transmitter and receiver
2.International famous brand POCLAIN hydraulic variable displacement pump

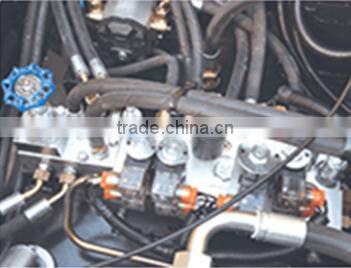

3.American SUN hydraulic control valve

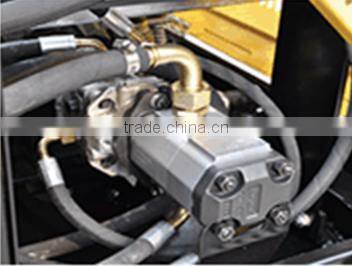

4.The United States EATON liquid motor, torque, stable performance, easy to start

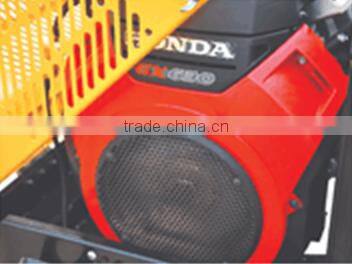

5.HONDA engine
6.High front driving, at any time to detect the height, observe the flatness, avoid construction problems
Technical parameter
| Engine | leveling system | ||
| Model | perkins | width | 2500mm |
| Type | Diesel engine, water cooled 4 stroke, three cylinder | Spreading way | Paving |
| Power | 25HP/2800rpm | Power | high torque cycloid hydraulic moto |
| Tank volume | 3L | Exciting force | 500N |
| Lubricating oil amount | 3.8L | Vibration frequency | 50Hz |
| Fuel consumption | 281g/kWh | Suspension | Left and right slip type |
| Walking system | Flat plate height | 350mm | |
|
drive |
Cycloid hydraulic motor |
Operation mode | |
|
wheel |
Solid tyre |

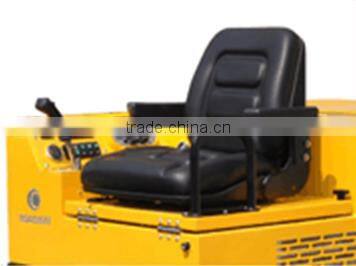

Seat position |
Pre-roll |
| Speed | 0-35m/min |
Forward and backward |
Handle control, Stepless speed change |
|
Laser control system |
To turn to |
hydraulic control | |
| control mode |
Microcomputer laser scanning |
Cleaning system | |
|
control effect |
Plane, slope or double slope (3D) |
power |
Hydraulic motor |
| Size and weight | Theoretical flow | 20L/min | |
| Dimensions | 2717×2760×2380mm | Rated pressure | 7MPa |
| Weight | 1300KG |
