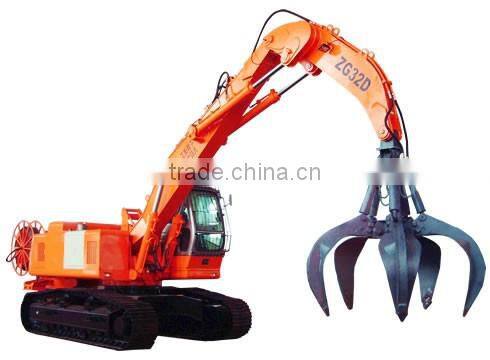

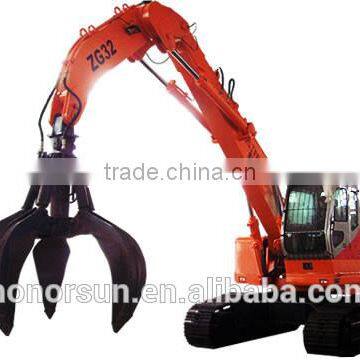

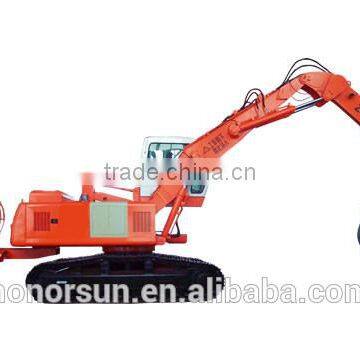

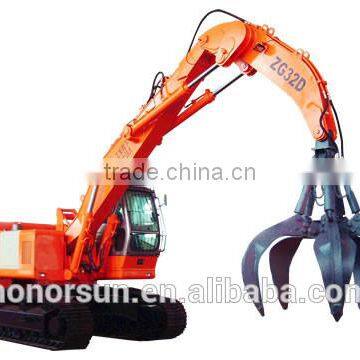

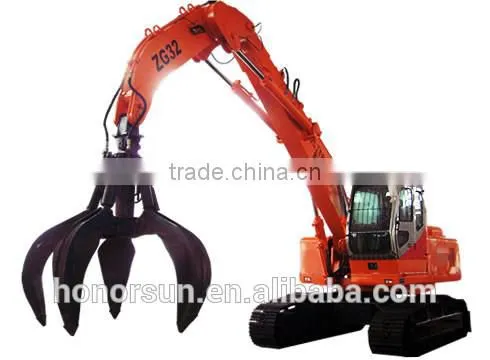

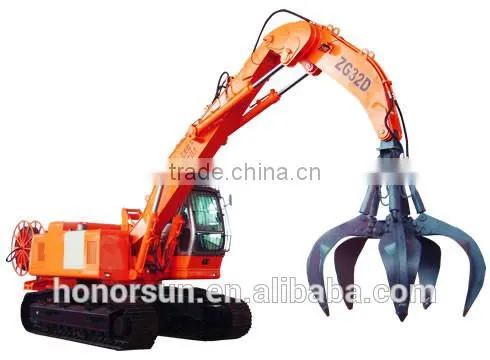

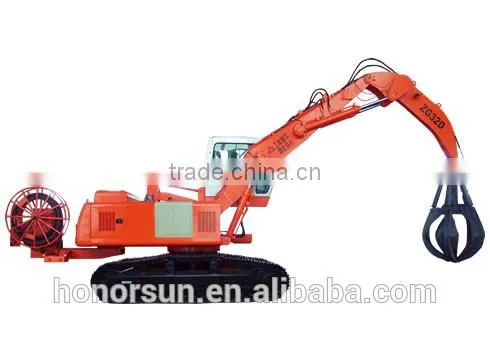

steel grab machine
- 100 Set / Sets per Month
- QINGDAO
- T/T
- Perkins T433072 - PISTON ASSEMBLY Genuine Engine Spare parts
- Auto Balancing Turnover Spreader Beam for Car Frame/Chassis/Trailer/Flatbed Turning
- SHANTUI JANEOO Sand making building ZSG120-5T
- Main technical parameters of 30m concrete pump truck
- 207 Engine Hydraulic Filter HF6710 AT58368 86542664
- 1 Ton Garden Excavator For Sale
Product Details
Place of Origin: | Shandong, China | Brand Name: | honorsun | Model Number: | ZG32D |
After-sales Service Provided: | Overseas service center available |
Product Description
Grab steel (material) machine widely used in metallurgy, mines, ports, garages and other workplaces.it can be loaded and unloaded scrap steel, ore, coal, sand and loose material. Thel machine, which is composed of a crawler walking device, a rotating platform, a working device, etc..
Project | unit | parameter | |
dynamic system | Engine type | 6CTA5.9 - C178 | |
Rated power | kW | 132kw / 2200r | |
Maximum torque | Nm | 750Nm / 1300r | |
Hydraulic system | Max flow | L.min-1 | 2 * 220 |
Maximum working pressure | MPa | 28.5 | |
performance parameter | Max rotation speed | RP | 8 |
Operating cycle time | s | 22 - 16 | |
The weight of the whole machine | t | 32 | |
Operating parameters | Maximum operating radius | mm | 12000 |
Max grab weight | T | 5 / 3.5m | |
Maximum operating height | mm | 10500 | |
Maximum operating depth | mm | 6100 | |
Walking mechanism | Track width | mm | 600 |
Get off width | mm | 3200 | |
Walking speed | km/h | 3.2 / 5 | |
Ground specific pressure | Mpa | 0.055 | |
Climbing ability | 40% | ||
Driver line of sight height | Fixed cab | mm | 3800 |
Lift cab | mm | 3020 - 4820 |
Main Features
1.Economical and reliable
Single pump constant power, double pump cross power control, engine output stability
Negative flow pump control mode, good economy
Hydraulic oil radiator and engine water cooler plug-in arrangement, compact and high efficiency
Hydraulic hose and seal parts imported products, high reliability
2.reasonable design
The movable arm and the bucket rod are all hydraulic locking and have good impact resistance, and the utility model realizes the integration of the two pumps, the regeneration of the bucket rod, the combination of multiple operations, and stable operation
Walking speed of two files to achieve two speed, to meet different conditions
The upper arm type brake of the walking and rotating mechanism, the hydraulic pressure is opened, and the safety is good
According to the different needs of users, flexible configuration
Power system, hydraulic system and working device can be freely and flexibly configured according to the needs of users
The equipment uses the "straight arm, bending the bucket rod structure, equipped with electric sucker, elevating cab
3.High efficiency and environmental protection
Simple operation, easy maintenance and safe performance
Environmental protection, energy saving, low noise, long service life
Far infrared remote control system can realize long-distance operation; crawler type walking device, the ground pressure is small, smooth, flexible steering
