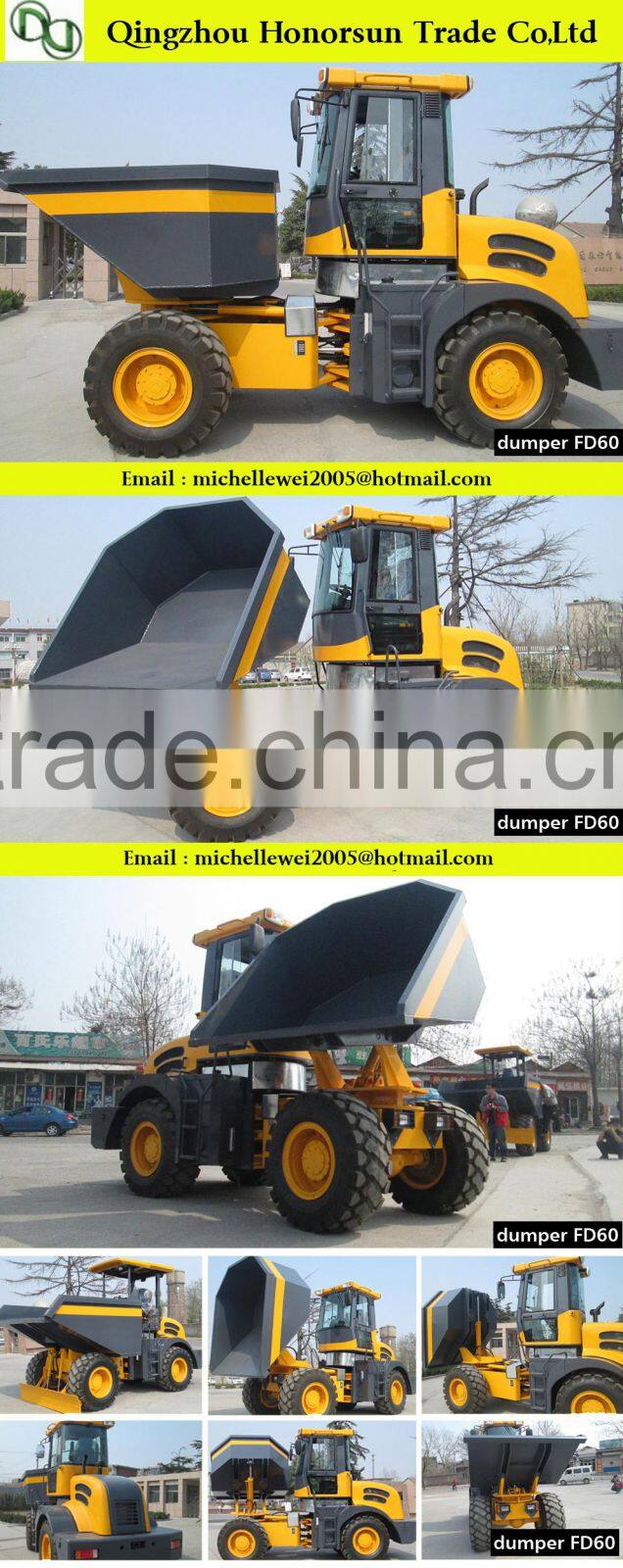

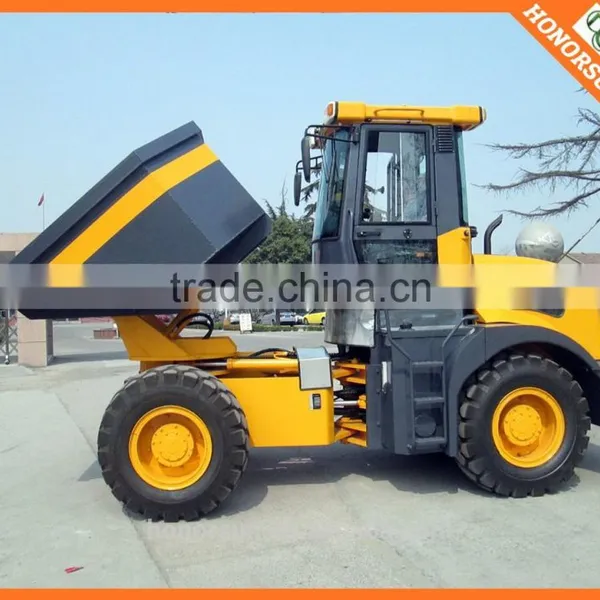

Specifications of FD60 wheel loader
1.0 Engine Details
(1) Model: Luotuo4108
(2) Engine type: In-line arrangement, water-cooled, four-cycle diesel Engine
(3) Rated Power: 60KW
(4) Rated Speed: 2200 r/min (rpm)
2.0 Transmission System
(1) Type: Fixed-spindle Power shift (CVT shift)with Hydraulic torque convertor
(2) Shift gear control oil pressure: 1.2~1.5MPa
(3) Rated input speed: 2500 (rpm)
(4) speed: F1:4.4km/h
F2:24km/h
R1:4.4km/h
R2:24km/h
3.0 Bucket
(1) Bucket Capacity: 2.5 m3 180 (rotated)/3.0m3(without bucket rotated)
(2) Bucket width: 2200mm
(3) Bucket type: Heavy-duty with single or dual cylinders
(4) Max. dumping Force: 6000kg
(5) Rated Load: 6000kg
(6) Operating Weight(machine weight): 5700kg
(7) Max Dumping degree:50
4.0 Overall Dimensions
(1) Overall Length: 5100mm
(2) Overall Height
(a) Ground to ROPS Top: 2900mm
(b) Ground to the top of cabin:3050mm
(3) Overall Width: 2200mm
(4) Wheel base:2350mm
(5)Mini clearance:350mm
5.0 Operating Specifications
(1) Steering System: Articulated Frame with hydraulic power steering
(2) Min Turning Radius: 4600mm
(3) Driving System: Hydraulic converter
6.0 Brake System
(1) Service Brake: 4 wheel hydraulic-Air disc brake
(2) Parking Brake: Hand operated
7.0 Tyre
(1) Model:16/70-20
