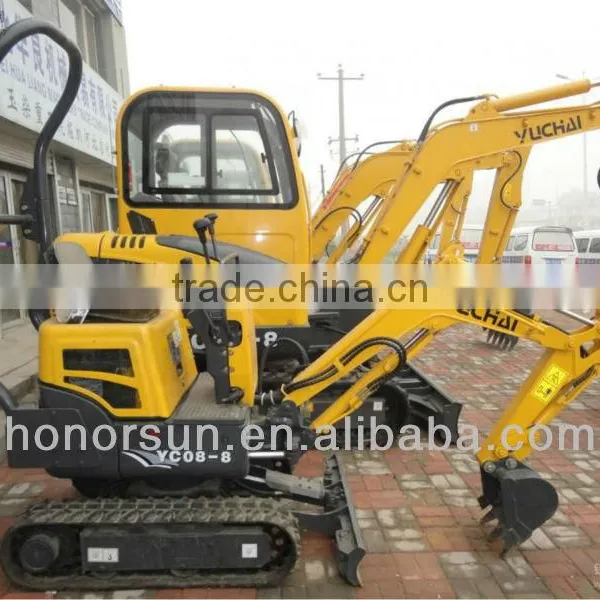

mini hydraulic rubber track crawler excavator 0.8 ton

Model

 YANMAR

Power

7.3KW/2200rpm(10.05hp/2400rpm)

Operation Hydraulic Pressure

16Mpa(2320PSI)

Maximum Digging Force

≥8KN  (1799lbs)

Maximum Gradeadility

≥58%(30°)

Travelling Speed

1.6~2.6km/h(1.6~1.7mph)

Maximum traction

7.6KN  (1709lbs)

Swing Speed of Platform

9rpm

Variable displacement pump capacity

Fixed displacement pump capacity

4.5+4.5ml/r(0.001+0.001gallon/r)

Swing Angularity of the Digging Arm(left/right)

75°/50°

A Maximum Digging Height

2373mm(8'12''in)

B Maximum Dumping Height

1951mm(6'5''in)

C Maximum Digging Depth

1415mm(4'8''in)

D Maximum Digging Radius

2831mm(9'3''in)

D1 Maximum Digging Dist.of Ground

2726mm(8'11''in)

E Maximum Height Digging Radius

1527mm(5'in)

F Maximum Platform Tail Turning Radius

1248mm(4'1''in)

G Maximum Depth for Bulldozing

267mm(0.9'in)

H Maximum Height for Bulldozing

231mm(0.8'in)

   Maximum Digging Force

9.3KN

C08-8 Excavator

weight:1030kg (2094lbs)

rated power:7.5KW/2200rpm(10.05hp/2400rpm)

standard bucket capacity:0.02m³(0.88cu.ft.)

standard bucket wide:400mm(1'4''in)
