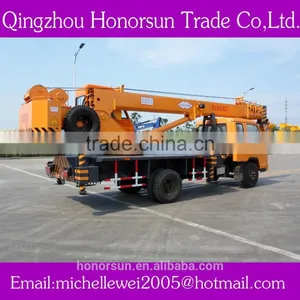

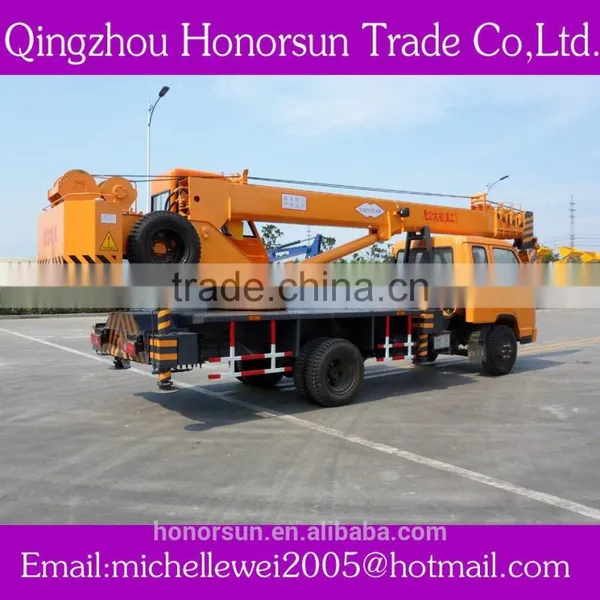

Telescopic Crane for Sale

Name: Telescopic Crane for Sale
Brand: HONORSUN
SKU: 141307652
Availability: InStock

US$ 29,200 - 29,400 MOQ: 1 Unit

Key Specifications

Condition:

New

Rated Loading Capacity:

8915 KG

Max. Lifting Load:

8 T

Qingzhou Honorsun Heavy Industry Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QING DAO PORT

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Rated Loading Capacity 8915 KG

Max. Lifting Load 8 T

Max. Lifting Height 26 M

Place of Origin Shandong, China

Brand Name HONORSUN

Model Number HSQY8H

Certification CE certification

Warranty 3 years

After-sales Service Provided Engineers available to service machinery overseas

Product model	HSQY8H
Total mass kg	8915
Overall dimension mm	851021903100
Rated elevating capacity kg	8000
Max. Lifting Height m	26
Main hook single load kg	1350
Main hook single elevating speed m/min	50
Auxiliary hook single load kg	500
Auxiliary hook single elevating speed m/min	100
Engine model	SD4100
Derailleur model	MW525 With high and low speed auxiliary box
Tires	8.25-16 with spare tires
Braking form	Pneumatic brake
Steering form	The steering wheel circulation ball type
Crane jib structure	Category five hexagon box-type, hydrocylinder telescopic boom
Main Lifting Mechanism	Category one planet wheel with a brake inside
Auxiliary Lifting Mechanism	Category one gear brake motor
Swing Bearing	GB Φ1000 Tooth, material 50Mn intermediate frequency
Vertical hydraulicleg	Double-acting engineering oil cylinder
Horizontal hydraulicleg	Double-acting engineering oil cylinder
Platform	Anti-skidding and big
Protective Screening	Two-way
Night light	3 lamps control
Dynamic Motor	GB 11KW-6 pole
Crane Cab	Tailor-made
The central axially symmetrical	Four oil ways
Crane Start	Tailor-made
Throttle	Hydraulic
Warning Horn	Mono snail
Pressure gage and switch	Shockproof component
Power Takeoff	Driving indoor operation zip type
Hydraulic Oil Tank	Turntable rearmounted, counter weight combined type, special four-layer filters
