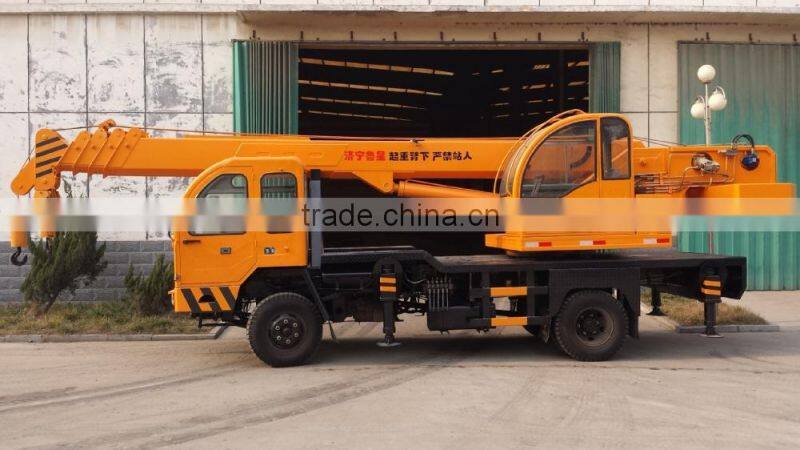

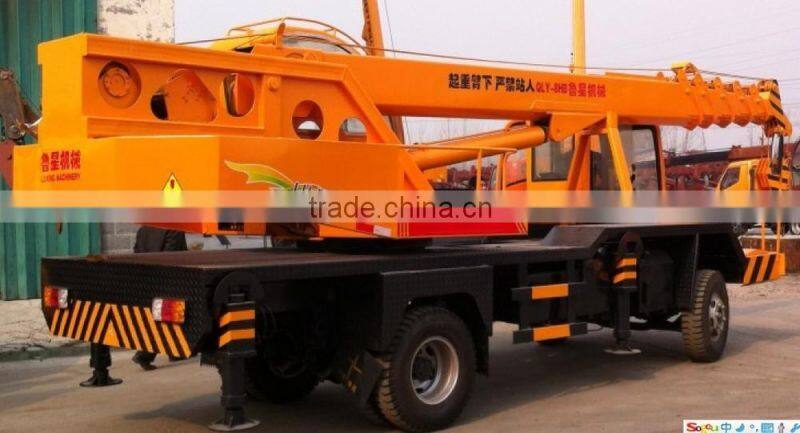

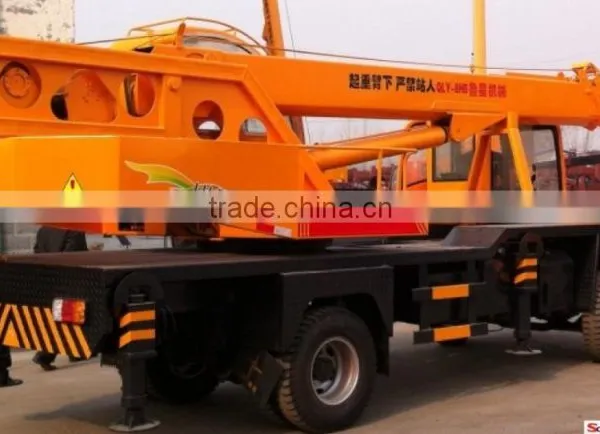

Help Center8 Ton Mini/small Mobile Truck
Related Products
-
Good/top Quality! Honorsun 4 Scetion Boom and 15ton Hydraulic Mobile Crane(QY16G)US$ 64,000 - 85,000MOQ: 1 Unit -
4wd Mobile Crane (Overall Dimension :7350*2015*2710) for SaleNegotiableMOQ: 1 Unit
-
Brand New Condition Truck Crane With Reliable Quality and 6 Ton CraneNegotiableMOQ: 1 Unit
-
Brand New Mobile Crane/truck Crane/lorry-mounted CraneNegotiableMOQ: 1 Unit
-
Half Cab Truck Crane/truck Crane With Grab/mounted CraneNegotiableMOQ: 1 Unit
Dimension |
Total length |
8200mm |
Overall width |
2150mm |
|
Total height |
2700mm |
|
Leg span |
transverse |
4285mm |
longitudinal |
3700mm |
|
Turntable tail radius of gyration |
2470mm |
|
parameters |
total mass |
7120Kg |
Basic arm length |
7500mm |
|
Full stretch main arm length |
28500mm |
|
Basic arm maximum lifting height |
9050mm |
|
Full boom maximum lifting height |
30700mm |
|
Main arm range Angle |
0°—77° |
|
Fuel types |
diesel |
|
Chassis type |
TYPE 2 |
|
Engine type |
ZH4102Y |
|
Engine rated power |
46Kw |
|
Highest driving speed |
90km
|
|

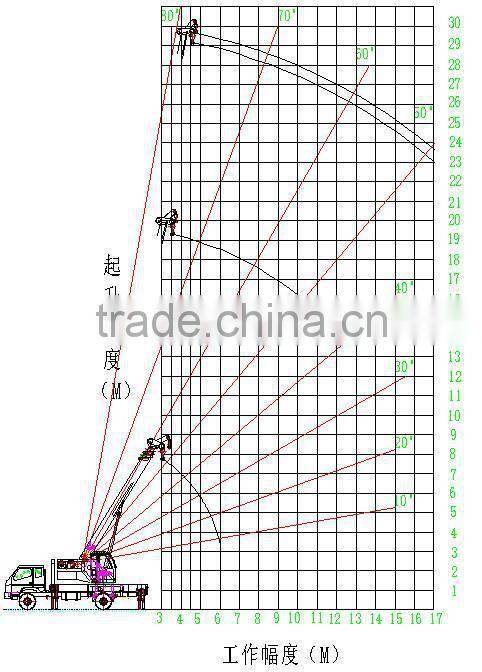

WorkingRange(m) |
Arm frame length(m) |
|||||
7.7 |
18 |
28 |
||||
Lifting Weight(Kg) |
Lift Height(m) |
Lifting Weight(Kg) |
Lift Height(m) |
Lifting Weight(Kg) |
Lift Height(m) |
|
3 |
8000 |
7.71 |
|
|
|
|
3.5 |
7000 |
7.4 |
4500 |
19.34 |
|
|
4 |
5800 |
6.99 |
4000 |
19.21 |
|
|
4.5 |
4200 |
6.4 |
3600 |
19.05 |
2400 |
29.14 |
5 |
3200 |
5.75 |
3300 |
18.89 |
2185 |
29.08 |
6 |
2550 |
3.4 |
2950 |
18.54 |
2100 |
28.85 |
7 |
|
|
2500 |
18.1 |
1900 |
28.55 |
8 |
|
|
1800 |
17.56 |
1580 |
28.22 |
9 |
|
|
1350 |
16.9 |
1380 |
27.85 |
10 |
|
|
1000 |
16.18 |
1100 |
27.44 |
11 |
|
|
800 |
15.34 |
900 |
26.98 |
12 |
|
|
550 |
14.37 |
700 |
26.47 |
13 |
|
|
|
|
580 |
25.91 |
14 |
|
|
|
|
450 |
25.29 |
15 |
|
|
|
|
320 |
24.62 |
16 |
|
|
|
|
240 |
23.87 |
17 |
|
|
|
|
180 |
23.06 |
magnification |
6 |
4 |
2 |
|||
main hook load:80Kg | ||||||
