Working Condition
Altitude: 0-4500m
Temperature: -25°C--+45°C
Allowed working condition: solid, stable land, the vehicle should be horizontal
Wind force: ≤6 degree
Working Range

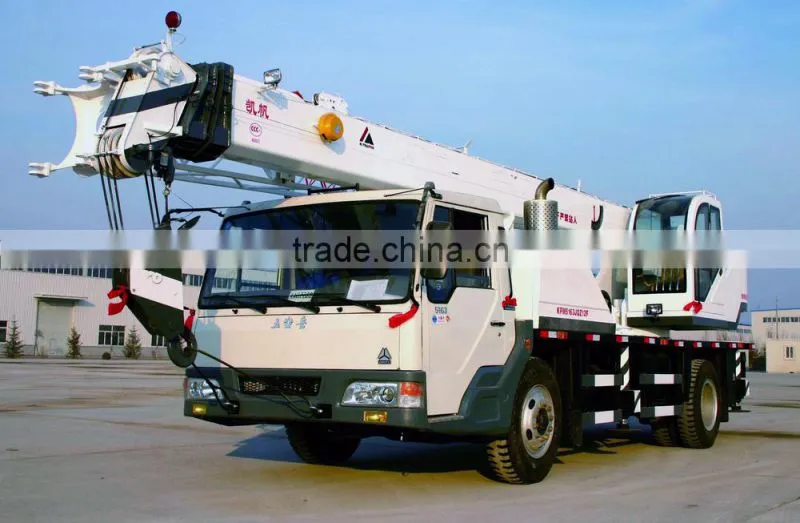

(QY12G)Crane is fully hydraulic telescopic crane, the maximum rated lifting capacity is 12t. It can be applied in various conditions for lifting and installation work, such as industrial and mining establishments, building site, station, sea port, warehouse and so on.
Main Parameters
Items |
Unit |
Value |
|
Working Performance Parameters |
Max. Rated lifting weight |
kg |
12000 |
Max. Lifting force of the basic boom |
kn.m |
450 |
|
Max. Lifting force of the longest boom |
kn.m |
240 |
|
Max. Height of the basic boom |
m |
10.5 |
|
Max. Height of the main boom |
m |
29.2 |
|
Max. Height of the jib |
m |
35.6 |
|
Working Speed |
Turning speed |
r/min |
0~2 |
Extension time of the full boom |
s |
75~60 |
|
Lifting time of the lift boom |
s |
50~37 |
|
Extension time of horizontal tank outrigger |
s |
28~40 |
|
Extension time of vertical tank outrigger |
s |
27~40 |
|
Traveling Parameters |
Max. Traveling speed |
km/h |
75 |
Max. Grade ability |
% |
25 |
|
Min. Turning diameter |
m |
22 |
|
Min. Ground clearance |
mm |
255 |
|
Approaching angle |
° |
17 |
|
Departure angle |
° |
10.5 |
|
Weight Parameters |
The whole weight of full load |
kg |
19300 |
Load of the front axle |
kg |
5400 |
|
Load of the middle-rear axle |
kg |
13900 |
|
The whole weight |
kg |
19170 |
|
Dimension Parameters |
External dimension(length×width×height) |
mm |
12060×2494×3160 |
Vertical span of outrigger |
mm |
4750 |
|
Horizontal span of outrigger |
mm |
4990 |
|
Length of main boom |
m |
28.16 |
|
Elevation of main boom |
° |
-2~80 |
|
Length of vice boom |
m |
6.8 |
|
Chassis |
Model |
— |
TAZ5193J |
Engine model |
— |
WP6.210 |
|
Rated power/speed |
kw/(r/min) |
155/2300 |
|
Max. Torque/rotate speed |
n.m/(r/min) |
750/1400~1600 |
|
Standard Equipments
(TAZ5193J) TAZ5193J
- 1. Main boom assembly
- 2. Vice boom assembly
- 3. Hanging hook assembly
- 4. Windlass assembly
- 5. Slewing system
- 6. Electric system
- 7. Hydraulic system
- 8. Outrigger
- 9. Superstructure control system
- 10. Chassis control system
- 11. Tool box
