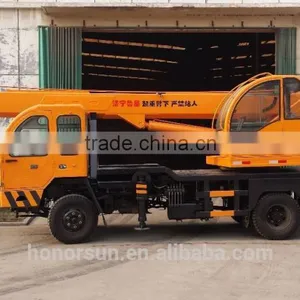

HSY10B MINI TRUCK CRANE
1,MAIN STRUCTURE
HSY10B Crane is a mini model crane with self-made chassis, suitable for working in factories, ports, garages, construction sites and other places of lifting operations and lifting equipment installation works etc...
This Crane is mainly composed with chassis, boom system, hydraulic system, electrical system and lifting mechanism and other components.
1-Cantilever system is compose with crane boom,telescopic part and cantilever part
2-Trolleying stystem is compose with cylinders,balance valve etc…
3-Electric system is composed with cantilever electric part and driving electric part
4-upper part hydraulic system including multi-way control valve,motor,balance valv,Hydraulic oil tan,cylinders,Hydraulic hose and hose connectors.
5-Lifting crane system compose with winch reducer,crane hook,steel wires etc…
6-chassis including driving system,transmission system,moving system,brake syste,steering system,electric system
7-under part hydraulic system is composed with radiator,telescopic cylinders,hydraulic hose and hose connectors
8- rotary system is composed with rotary reducer,rotary connectors and slew bearing
9-under chassis is composed with cross beam,level box(for hydraulic outrigger),engine suppor,and clew bearing system
Specification
Overall dimention |
length |
9500mm |
width |
2245mm |
|
height |
3100mm |
|
outrigger span |
horizental |
5000mm |
Lengthways |
4500mm |
|
Turntable end Rotary semi-diemeter |
2300mm |
|
weight |
10500Kg |
|
Contraction Length for main boom |
8500mm |
|
Outspread for main boom |
24000mm |
|
Max lifting height for basic boom |
8200mm |
|
Max lifting height for outspread boom |
24500mm |
|
Lifting boom changing angle |
0°—76° |
|
fuel |
diesel |
|
chassis |
Self-made |
|
Engine model |
YZ4DAI-40 |
|
Engine power |
78Kw |
|
Max speed |
60km |
|
|
Working range (m) |
Length of main boom(m) |
|||
7.5m |
13m |
18.5m |
24m |
|
3.0 |
10000 |
5500 |
|
|
3.5 |
8500 |
5350 |
|
|
4.0 |
8000 |
5000 |
4500 |
|
4.5 |
7500 |
4500 |
4000 |
|
5.0 |
6800 |
4100 |
3600 |
|
5.5 |
6100 |
3700 |
3300 |
2250 |
6.0 |
5000 |
3300 |
2950 |
2170 |
7.0 |
|
2900 |
2500 |
1950 |
8.0 |
|
2450 |
1800 |
1600 |
9.0 |
|
1700 |
1350 |
1350 |
10.0 |
|
|
1000 |
1050 |
12.0 |
|
|
800 |
850 |
14.0 |
|
|
|
600 |
16.0 |
|
|
|
450 |
18.0 |
|
|
|
200 |
