Low Noise and low price 3-5T/hour Cassava flour equipment
- 20 Set / Sets per Month
- Qingdao/Tianjin
- T/T
-
2024 Full Automatic 380V Mini Plant 5 Tonnes Maize Flour Milling Machine Wheat Flour Mill Corn Grinder Machine Rolling Machines Grinding Maize Mill Price
-
Automatic Maize Flour Mill Wheat Corn Flour Milling Machine Maize Mill
-
Automatic 20tpd Wheat Maize Corn Semolina Rice Roller Flour Griding Machine Wheat Flour Mill Milling Machine
-
Wheat Rice Grain Grinder Flour Mill Milling Machine For Home Use
-
Widely Used Wheat Rice Grain Grinder Flour Mill Milling Machine
-
Small Scale Corn Grinder Mill Machine Grain Crusher Mill Making Machine
Product Details
Condition: | New | Place of Origin: | Henan, China | Brand Name: | Sida |
Model Number: | SD-009 | Production Capacity: | 1-2T/hour | Voltage: | 220V/380V |
Power(W): | 40KW | Weight: | 4800KGS | Dimension(L*W*H): | 5400*2810*2810 |
Certification: | ISO9001: 2008 | Warranty: | Three Years | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Low Noise and low price 3-5T/hour Cassava flour equipment
We have whole equipment for processing cassava, Cassva starch processing machine, Cassava flour equipment, Garri processing machine and Yam flour processing machine.
First process is transportation and cleaning
Collect the fresh cassava from stock ground, and transported by the conveyor belt to peeling machine for peeling and stone removing. After firstly remove the impurities on the surface, the cassava is transported into washing process. After washing twice by trough conveyor and roller, the sediment and impurities on the surface of cassava have been basically removed; and peeling rate can achieve 80%. After cleaning process, the cassava will be transported into the crushing process.
Second process is crushing
Clean cassava will be broke into pieces by flying hammer type grinding machine in order to break the organizational structure of cassava. So that small starch granules can be disintegrated from the cassava root. Water plays the medium here. After twice crushing, cassava becomes slurry. The starch slurry after the first crushing can pass through 6 ~ 8mm puree sieve. The starch slurry after twice crushing can pass through 1.2-1.4mm puree sieve. The starch is basically free and becomes a mixture of pulp residue, then pumps it into the sieve for separation.
Third process is filtering
Residue slurry mixture passes through four vertical separators to be separated. Cassava waste will be transported to the residue field. And the starch extraction can already meet the standards of products only with protein, sediment and other organic and inorganic impurities to be proceeded in next process.
Fourth process is separating and concentrating
Starch will be pumped through the sediment remover to remove inorganic impurities. And then into the first disc separator, and then into the second disc separator. The main function of first disc separator is to remove protein, and the main function of second disc separator is to concentrate to be dehydrated. After the above treatment process, starch basically reached the requirements of the finished product. Following processes are dehydration, drying sections.
Fifth process is dehydrating
Concentration of starch out of disc separator is generally 18 ~ 20 º B
¦. After centrifuge treatment, the water content of starch decreased from 60% to 38 ~ 40%; dehydration of water (containing about 1 to 5% starch) continues to be concentrated in the disc separator. The wet starch will be transported to the air dryer treatment through the screw conveyor,
Sixth process is drying and filtering

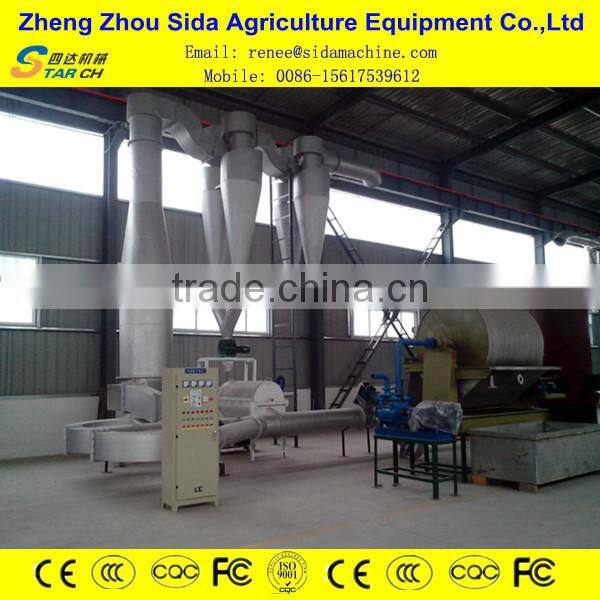

Air drier is a saturated steam which heats air through the heat sink. The starch will be heated by the hot air drying to achieve the dry purpose. Negative pressure, no dust and energy saving is throughout the system. After air drying, the starch water content is between 12 to 14% of the finished product standards. To ensure the fineness of the finished product can meet the standard, we also need to check the screen to prevent the starch after finished the process of agglomeration in the drying, so as to ensure that the final product can meet the standard.

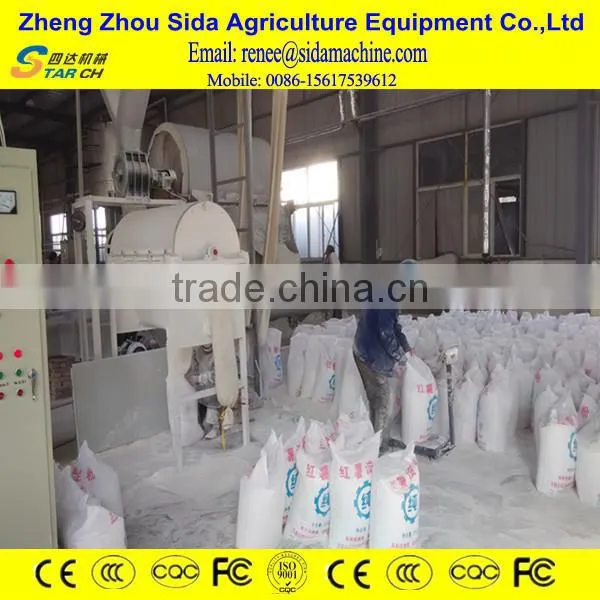

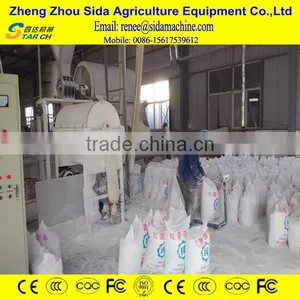

Seventh process is packing
