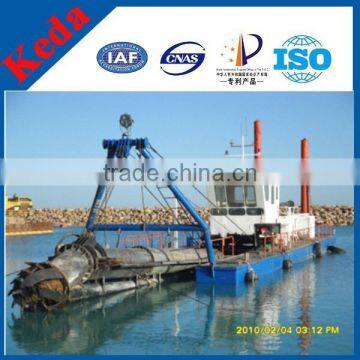

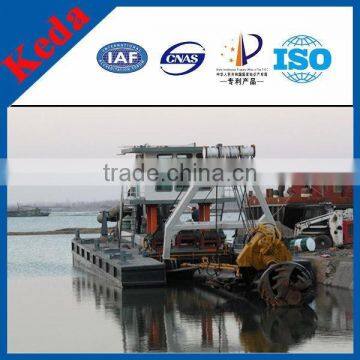

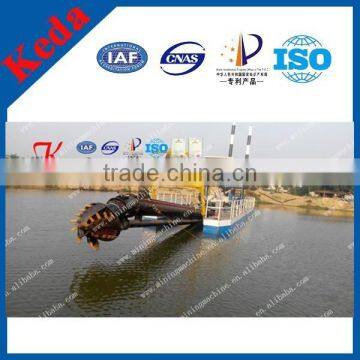

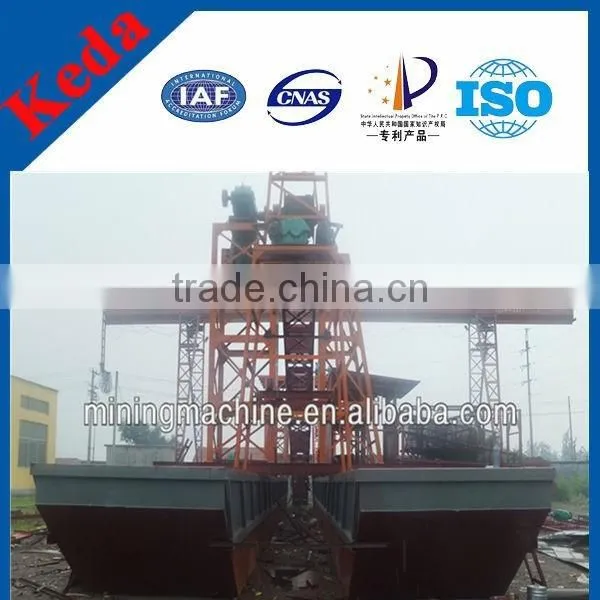

Sand Backhoe Dredger
Feature:
1.CCS, ISO9001:2008 Certificate
2.Completely assembled and fully tested before delivery
3.Simple, rapid assembly and dismantling
4.Ready for operation on arrival at site
5.Standard design and spare parts available from stock
6.Reliable hydraulic system
7.Fresh water engine cooling system
Basic Parameter:
| Sand Dredger Parameter | |||||||
| Model | KDCSD200 | KDCSD260 | KDCSD300 | KDCSD350 | KDCSD400 | KDCSD450 | KDCSD500 |
| Dredger Body | |||||||
| Dimensions(L*W*H) | 12.5*4.6*1.4 | 12.5*5.8*1.6 | 14.5*5.8*1.8 | 14.5*5.8*1.8 | 22*6.4*2 | 26*7*2 | 26*7.1*2.2 |
| Engine room(m) | 7.5*2.25*1.4 | 8*2.8*1.6 | 9*3.2*1.8 | 9.5*3.2*1.8 | 12*3.4*2 | 14*3.4*2 | 14*3.5*2.2 |
| Dredging data | |||||||
| Dredging depth | 6-7m | 6-8m | 8-10m | 10-12m | 12-14m | 12-14m | 12-14m |
| Pump model | 8/6” | 10/8” | 12/10” | 12/10” | 14/12” | 14/12” | 450WN |
| Water flow | 450m3/h | 800m3/h | 1100m3/h | 1500m3/h | 1900m3/h | 2500m3/h | 3200m3/h |
Suction pipeline diameter (mm/inch) | 260 | 300 | 350 | 350 | 400 | 450 | 500 |
Discharge pipeline diameter (mm/inch) | 200 | 260 | 300 | 350 | 400 | 450 | 500 |
| Devices | |||||||
| Total power KW | 176kw | 258kw | 353kw | 480kw | 640kw | 930kw | 1200kw |
| Generator set(kw) | 24 | 24 | 24 | 24 | 24 | 36 | 36 |
| Winch (Hydraulic) | |||||||
| Ladder winches | JC-3000 | JC-4000 | JC-4000 | JC-6000 | JC-6000 | JC-10000 | JC-12000 |
| Swing winch | JC-3000 | JC-4000 | JC-4000 | JC-6000 | JC-6000 | JC-8000 | JC-10000 |
| Spuds | |||||||
| Quantity | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
Spuds length*diameter (mm) | 8600*273 | 11000*300 | 13000*350 | 15000*377 | 17000*450 | 17000*550 | 17000*600 |
| Spuds weight/pic | 900kg | 1500kg | 2000kg | 2500kg | 3900kg | 4500kg | 5000kg |
Detail Images:

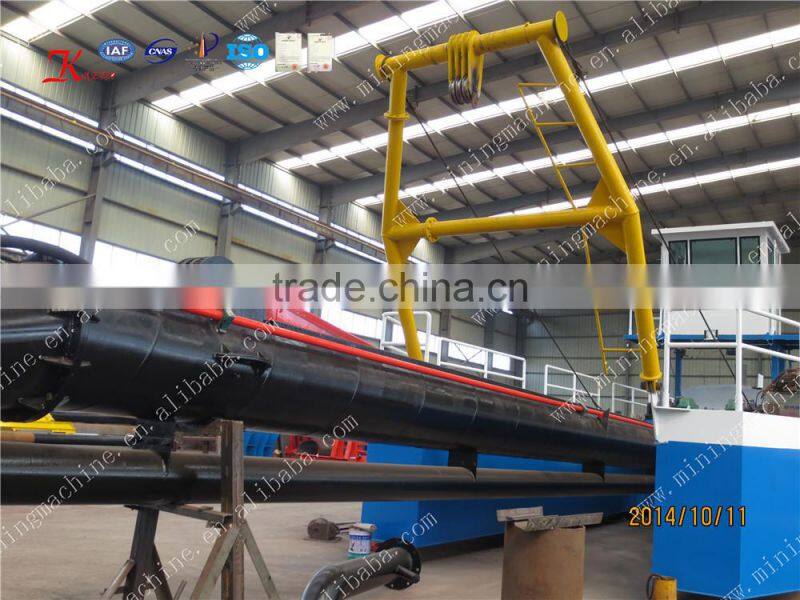

"Cutter Head"
"Pump"

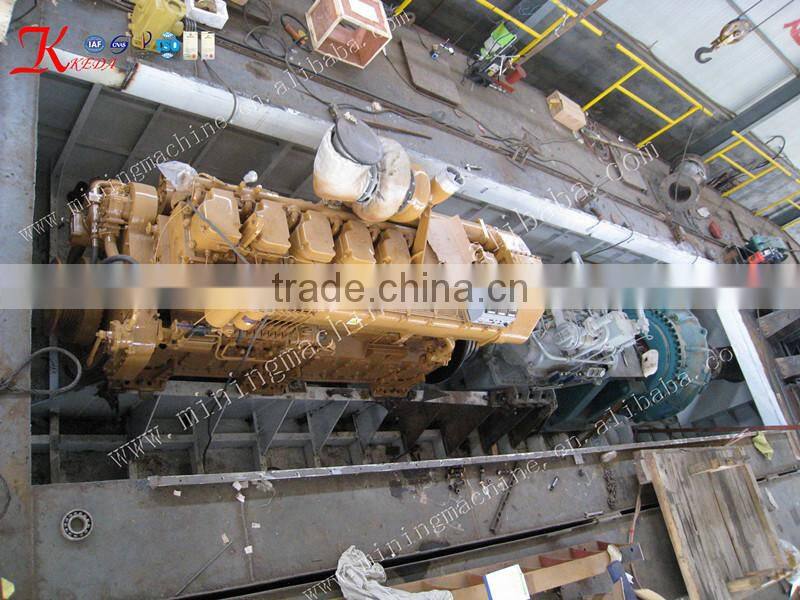

"Engine"
"Winch"

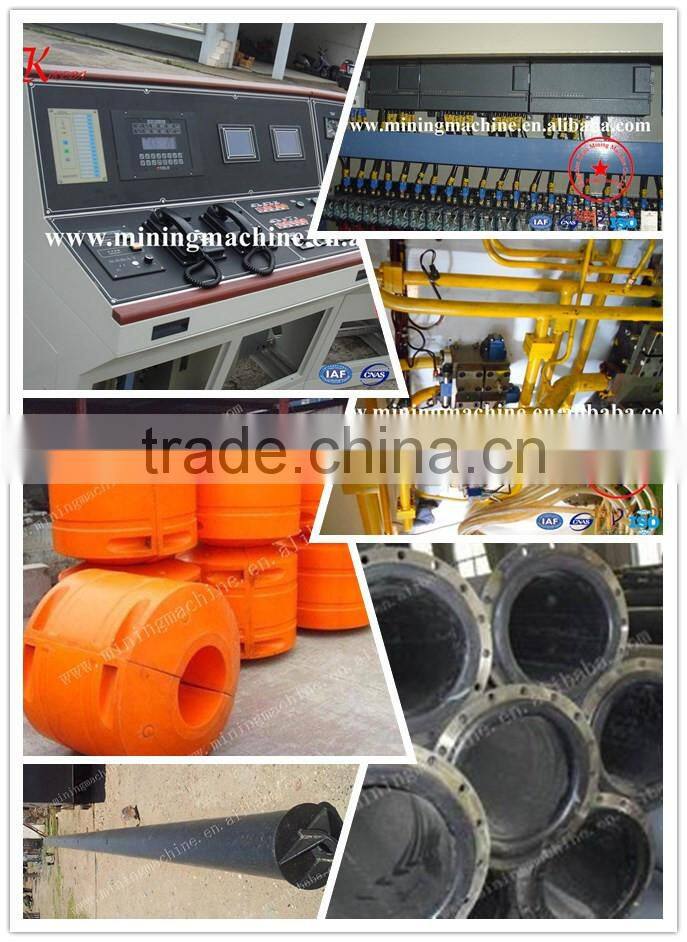

"The other parts"
Dredger Application:
Company Brief Introduction:
1) We are equipped with more than 10,000m2 area , workshop and advanced facilities to build dredgers.
2) We attach the development of scientific research, and form strategic partnership with the major research institutions.
3) Have CAD Aided Design R & D center and physical mineral processing laboratory,can work out reasonable and practical solution according to customer's technical requirements and work site,also had established and improve the equipment file and service system, concentrating on customer feedback to make the products constantly improved to meet the customers' different needs.
Company Certification:
Clients visit our factory:
Website:www.miningmachine.en.china.cn
