river sand pump dredger with low price
1.Detailed paragraph of river sand pump dredger with low price :

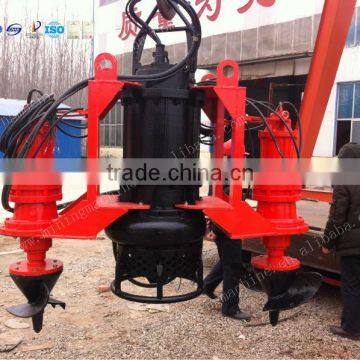

Pump:
2.Feature of river sand pump dredger with low price
The dredger can be used to excavate and transport cohesive sediment. In the
course of technical designing, we have considered special requirements for tropical
climate conditions of Senegal such as meteorological and waters distributing state etc.
It is to be easy to dismantle or mount for transportation by road, rail or water,and is to
be easy to reassemble at project site.
3.Technical Parameters of river sand pump dredger with low price
Model |
KDQSB200-5 |
Dredger Body |
|
Dimention (m) L*W*H |
12*4.7*1.2 |
Float |
|
Pontoon |
|
Side pontoons 2sets |
11*1.25*1.2 |
Main pontoon 1set |
8*2.25*1.2 |
Material |
CCSA |
Total weight T |
20 |
Pump model |
ZJQ300-20-37 |
Rotation speed(r/m) |
980 |
Dredging data |
|
Standard dredging depth |
5m |
Standard discharge distance |
50m |
Max.dredging depth(m) (optional) |
8m |
Max.discharge distance (m) ( medium and fine sand<0.235mm when min.flows) |
70m |
Max.standard dredging capacity m3/h |
50-70m3/h |
Min.clean water flows(standard dredging depth and Max.discharge distance) |
300m3/h |
Suction pipe diameter(mm) |
200mm |
Discharge pipe diameter(mm/inch) |
200mm |
1)The seller must deliver the goods and spare parts with manuals written in English.
2.The seller will provide 12-months warranty for the quality of the diesel engine/generator,
motor water pump (impeller is 6months), storage battery, but not responsible for rust.
3) If need seller’s installation help, the seller will send one (1) qualified experienced
engineer and one translator to Africa to conduct installation and train 3 workers to
operate the machine, the buyer shall arrange at least 5-6 workers to help the engineer.
1)Qingzhou Keda Mining Machine Co., Ltd.mainly produces iron selecting equipment,
kinds of drederes, dredging equipment, sand washing and sand making equipment,
gold panning equipment, magnetic separating, crusher and so on,
2)Products can produce according to the customers requirement and geographical condition.
3)It is a modern large-scale mineral processing equipment manufacturer for research and development,engineering design, producing installation, commissioning and after sale service.
4)Honesty and credit is our bussiness value , customer first.First-class quality and first-class
service is the business life.
EMAIL ME OR JUST CALL ME IF YOU HAVE ANY NEED .
