High Quanlity Submersible Sand Dredge Pump Boat
- 15 Set / Sets per Month
- Qingdao China
- T/T PayPal
- 2021 Hot newest small 350 1000m3 Cutter Suction Dredger
- Hot Newest Sand Suction Dredging Boat Dredger for Sale Engineers Available to Service Machinery Overseas Customized Provided MAP
- Sand Dredging Machine 2021 Hot Newest Small 12 Inch Cutter Suction Dredger Engineers Available to Service Machinery Overseas MAP
- 2018 Hot newest small 1000m3 Sand Cutter Suction Boat
- Customized small 12 Inch cutter suction river dredging equipment
- 2022 Hot Newest Small 1200m3 Cutter Suction Dredger Manufacturer Sand Pump Suction Dredger Sand Dredging High Gold Recovery Rate
Product Details
Condition: | New | Type: | Other, sinking pumpdredger | Power Type: | Electric |
Dredging Depth: | 15 m | Draught: | 200 cm | Place of Origin: | Shandong, China |
Brand Name: | KEDA | Model Number: | kdcsd | Dimension(L*W*H): | 26*7.1*2.2m |
Weight: | 80T | Certification: | ISO9001 | Warranty: | 12month |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
High Quanlity Submersible Sand Dredge Pump Boat
1.The parameter:
Model | KDSX200-10 | KDQSB200-5 |
Dredger Body | ||
Dimention (m) L*W*H | 14*4.2*1.4m | 12*4.7*1.2 |
Float | ||
Pontoon | ||
Side pontoons 2sets | 11.5*1.0*1.4m | 11*1.25*1.2 |
Material | CCSA | CCSA |
Total weight T | 30 | 20 |
Pump model | 6/4”D-G | ZJQ300-20-37 |
Rotation speed(r/m) | 1150 | 980 |
Dredging data | ||
Standard dredging depth | 8-10m | 5m |
Standard discharge distance | 500m | 50m |
Max.dredging depth(m) (optional) | 10m | 8m |
Max.discharge distance (m) ( medium and fine sand<0.235mm when min.flows) | 600m | 70m |
Max.standard dredging capacity m3/h | 50m3/h | 50-70m3/h |
Min.clean water flows (standard dredging depth and Max. discharge distance) | 250m3/h | 300m3/h |
2.Feature:
1).Economic and high dredging efficiency;
2).Easy to operate with reliable quality;
3).Standard gearboxes and hydraulic components;
4).Easy to operate, only need one man;
5).Have a spacious and low noise operating cabin;
6).The dashboard layout reasonable.

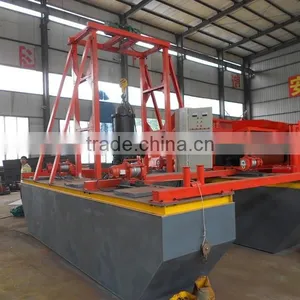

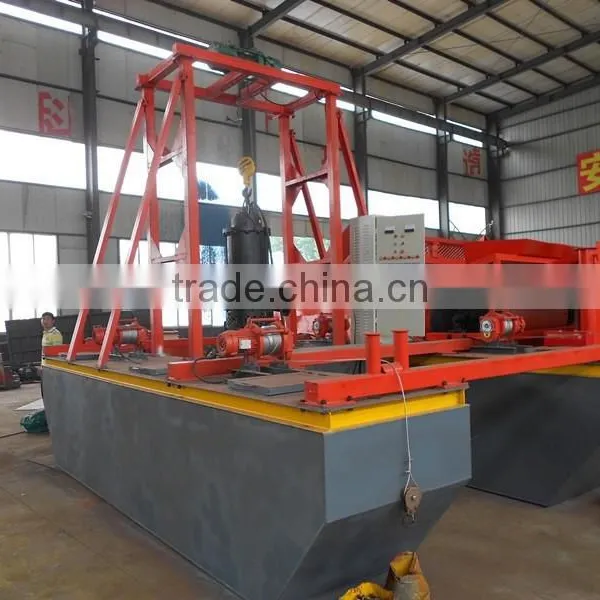

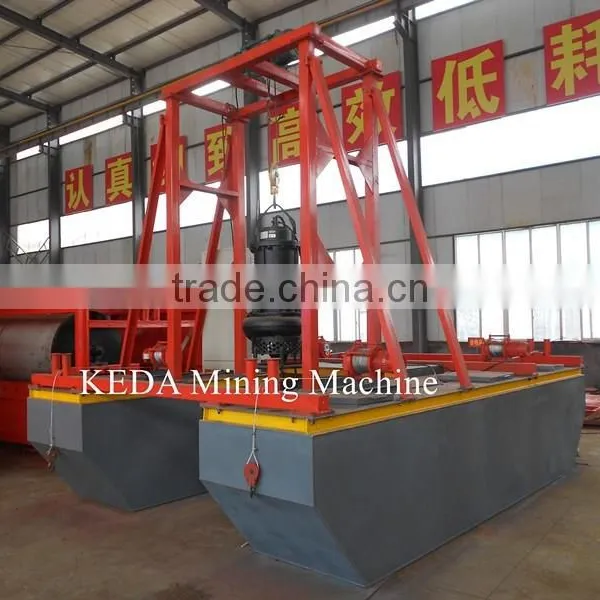

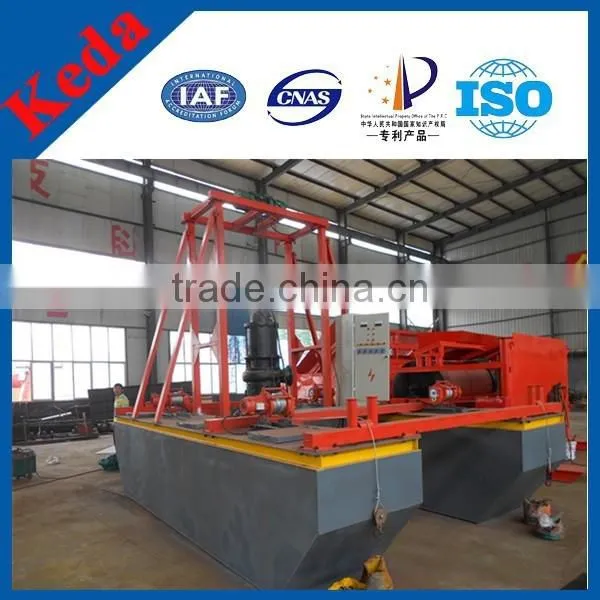

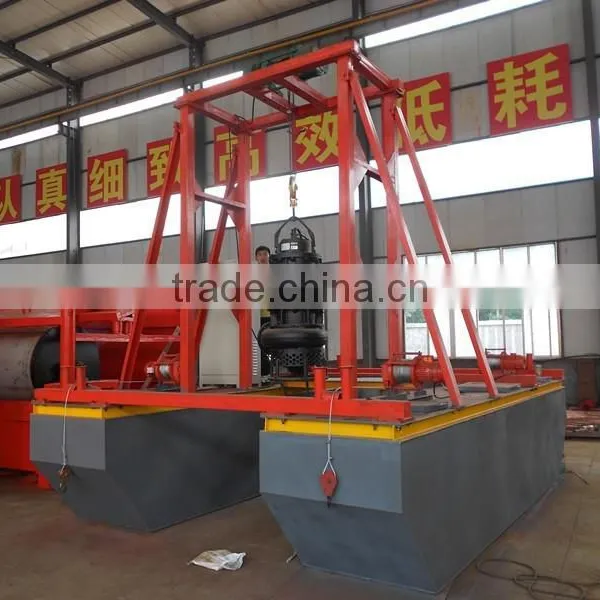

3.Image:
4. The machine is the worksite:
Shipped in the container:
We are equipped with more than 10,000m2 area , workshop and advanced facilities.
Our company have CAD Aided Design R & D center and physical mineral processing laboratory,can work out reasonable and practical solution according to customer's technical requirements and work site,also had established and improve the equipment file and service system, concentrating on customer feedback to make the products constantly improved to meet the customers' different needs.
And for the certificates, please see below:
After sales technical support,machine installation,spare part service anticipated training for our customers are provided by our specialist engineers and technicians.Our technical service department is ready to serve and reslove your questions via online support,phone calls or on-sit support.We reckon service insight to increase the levels of challenge with our specialized technical staff.Genial customer relations,technical facilities for intact spare parts deliverised with spare part labor warranty,affordable spare parts and on site service are just a few examples of our professinal customer approach.
