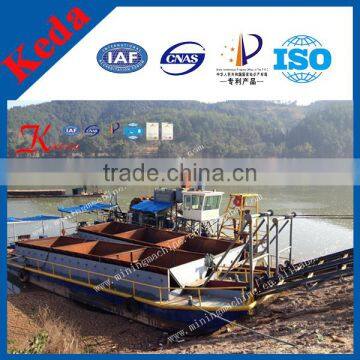

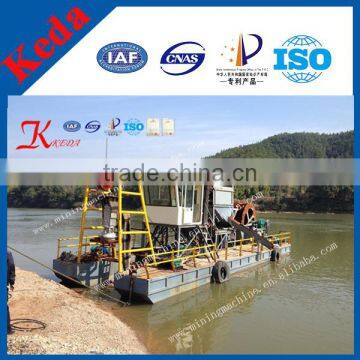

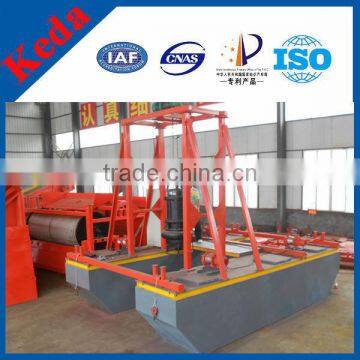

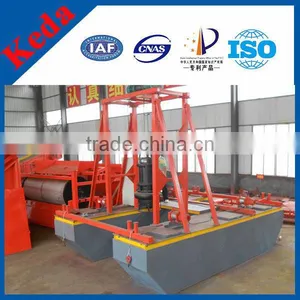

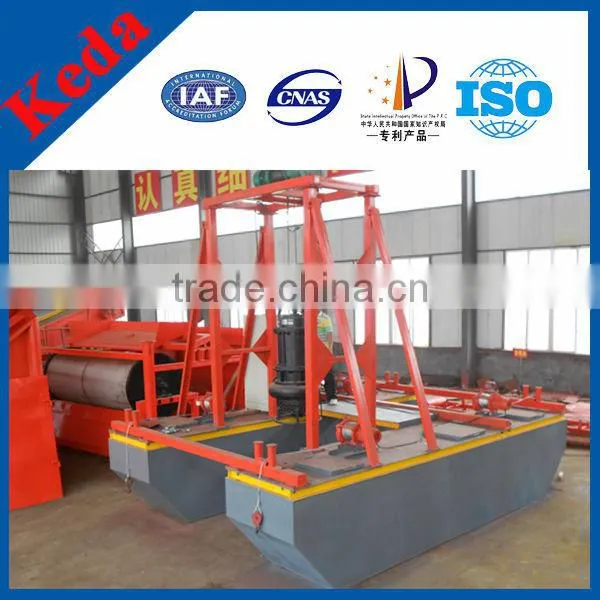

5-12 inches submersible well pump Dredger For Sales
1.Feature
1).It's easy to move.
2).It's easy to operate and control.
3).Economic and high sand dredging efficiency.
4).1 year warranty of important parts.
5).Controls and instruments mounted in ergonomic dash board .
2.Basic Parameter
Model | KDSX200-10 | KDQSB200-5 |
Dredger Body |
|
|
Dimention (m) L*W*H | 14*4.2*1.4m | 12*4.7*1.2 |
Float |
|
|
Pontoon |
|
|
Side pontoons 2sets | 11.5*1.0*1.4m | 11*1.25*1.2 |
Main pontoon 1set | 8.5*2.25*1.4m | 8*2.25*1.2 |
Material | CCSA | CCSA |
Total weight T | 30 | 20 |
Pump model | 6/4”D-G | ZJQ300-20-37 |
Rotation speed(r/m) | 1150 | 980 |
Dredging data |
|
|
Standard dredging depth | 8-10m | 5m |
Standard discharge distance | 500m | 50m |
Max.dredging depth(m) (optional) | 10m | 8m |
Max.discharge distance (m) ( medium and fine sand<0.235mm when min.flows) | 600m | 70m |
Max.standard dredging capacity m3/h | 50m3/h | 50-70m3/h |
Min.clean water flows(standard dredging depth and Max.discharge distance) | 250m3/h | 300m3/h |
Suction pipe diameter(mm) | 200 |
|
Discharge pipe diameter(mm/inch) | 200 | 200mm |
3.Detailed Introduction
Submersible pump dredger is applied to river bait-casting, collecting sand, electric hydraulic control, easy to use, is one of the most advanced engineering dredger.

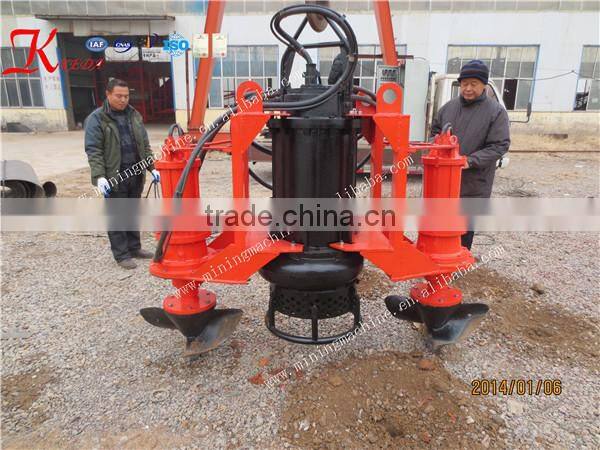

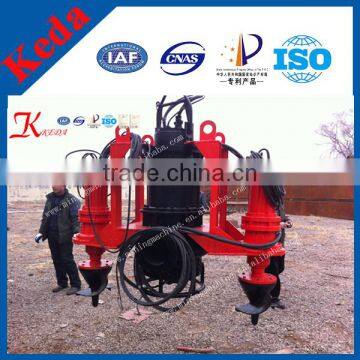

Pump
We take the warman technology, the pump body is consist of A26 iron, which has the feature of the high hardness and abrasion resistant.
Qingzhou Keda Ore Machinery Co.,LTD. is a professional ore machine manufacturer,which is professional to produce mining equipment with ISO9001:2008. Professional production equipment, sand-excavating pumping iron chosen sand equipment, bait-casting equipment, washing sand gold sand equipment, equipment manufacturing, magnetic separators, crushing machine, etc, and a hundres dozens of products. Our products had been exported to more than 15 countries, such as Ghana, Philippines, Vienam, Russia, North Korea, Indonesia, Gabon, America and so on.
Successful cases
In order to provide you with efficient & suitable quotation and assistance for you, could you kindly tell me the following information:
1) Output capacity(m3/h)
2) Max.dredging depth(m)
3) Discharge distance(m)
If you have any question about our products or company, please let us know, we will try our best to make you satisfied.
Fergie Wu
Qingzhou Keda Mining Machine Co,.Ltd.
E-mail:sales08(at)
Skype:kedamachinery08
Tel/Fax:0086-536-2105419
Mob:0086-18353690657
Thanks for your browse!
