Specifications
hopper dredger for sale dredging equipment1.Cummins engine
2.PLC Control
3.Good aftersale service
4.Few people need
4
hopper dredger for sale dredging equipment
1.About our products:
1)KD Hopper Dredger manufacturer
- Our company is a professional manufacturer of dredgers and some related products, such as processing gold ship, sand sucking ship, rusher and so on..
- Our products are not only popular in our country, but largely exported to south africa, western africa, philippine, nigeria, Russia, Vietnam, and so on.
- The technical options of the dredgers are customized and flexible-- totally according to the customer's requirement and the working environment.
2) Hopper Dredger Feature:
- Completely assemlbed and fully tested afloat before delivery
- Simple,rapid asseblely and dismantling
- Reliable hydraulic system
- Standard spare parts available from stock
- Fresh water engine cooling system
- Reliable hydraulic system
- One man operation
- Reliable hydraulic system
- Efficient fuel consumption
3) Basic Parameter:
Produce customized,it is for reference.
| Model | KACSD200 | KDCSD260 |
| Dredger Body | ||
| Dimensions(L*W*H)m | 12.5*4.6*1.3 | 12.5*5.8*1.6 |
| Engine room(m) | 7.5*2.25*1.4 | 8*2.8*1.6 |
| Dredging data | ||
| Standard dredging depth | 6-7m | 6-8m |
| Pump model | 8/6” | 10/8” |
| Water flow | 450m3/h | 800m3/h |
| Suction pipeline diameter(mm/inch) | 260 | 300 |
| Discharge pipeline diameter(mm/inch) | 200 | 260 |
| Devices | ||
| Total power KW | 176kw | 258kw |
| Generator set(kw) | 24 | 24 |
| Cutter head | ||
| Diameter (mm) | 850-30 | 950-40 |
| Winch(hydraulic) | ||
| Ladder winches | JC-3000 | JC-4000 |
| Swing winch | JC-3000 | JC-4000 |
| Spuds | ||
| Quantity | 2 | 2 |
| Spuds length*diameter(mm) | 8600*273 | 11000*300 |
| Spuds weight/pic | 900kg | 1500kg |
4)Test
- Before one day of the testing, engineers from different equipments of suppliers will be in the factory to assist the testing, for example, engineers from Cummins engine Chonging; engineers from dredging pump company,; engineers from generator company.
- Usually, before 5 days for the testing, the seller will inform the buyer for supervising the testing process before dismantle the dredger.
- For the testing, totally is 5 days. The 1st day is testing the sealing and anti-corrosion painting of the 3 pontoons; the 2nd day is hydraulic system testing; the 3rd day is main engine and auxiliary engine testing when dredger in the condition of working; the 4th day is hydraulic cutter driven system in the operating room, and the 5th day is dredging pump testing in different pressures of water flow.
- After testing, dredger will be tug out from the testing center for dismantle and shipping. After the dredger dismantle, 3 pontoons will be repainting, because in the testing process, there will be oil on the deck and pontoons.
2.Products and workshop
The dredgers in the producing:
Clients come to visit our factory:
In order to decrease the deliver time, we will make some ready or semi-product in our workshop.Welcome all of you to our factory and check the products first.
Dredger in testing center
After testing,dredger will be tug out from the testing center for dismantle and shipping ,after the dredger dismantle,3 pontoons will be repainting,because in the testing process,there will be oil on the deck and pontoons
For shipping:
Once we confirmed all functions of the dredger are ok, we will disassamble the dredger and transporting it to the port at the clients' side
Cutter head:

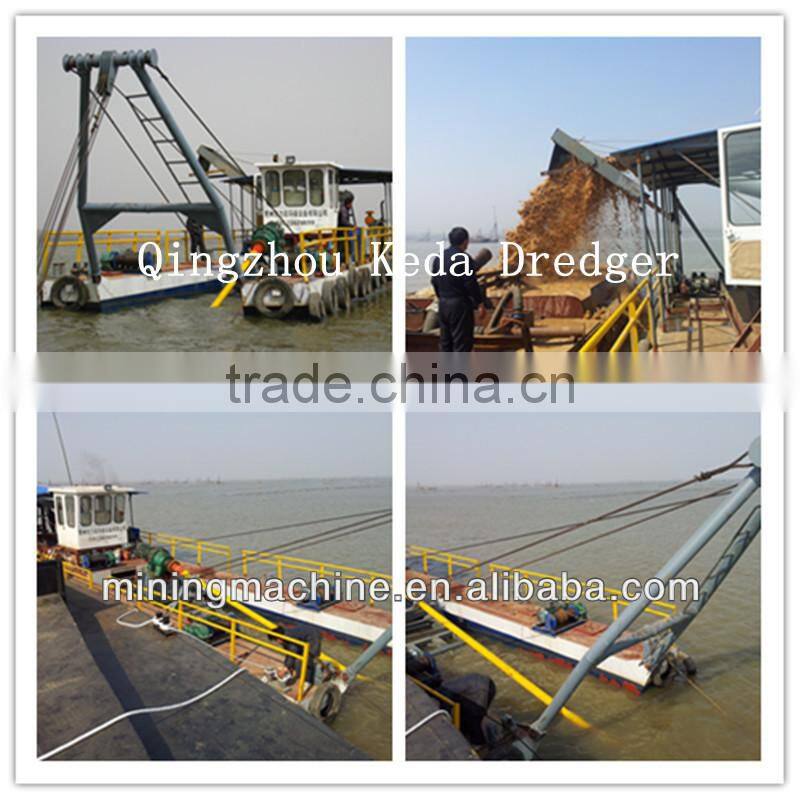

the cutter suction dredgre working in the project site

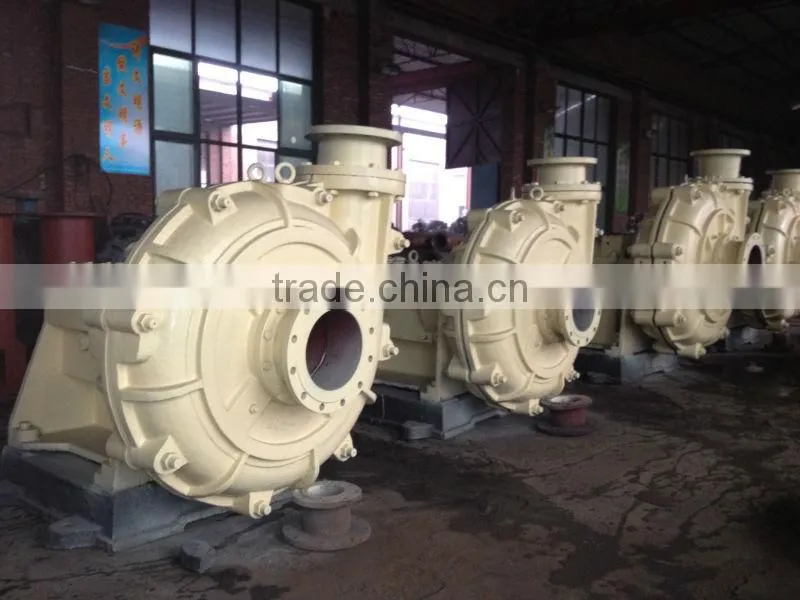

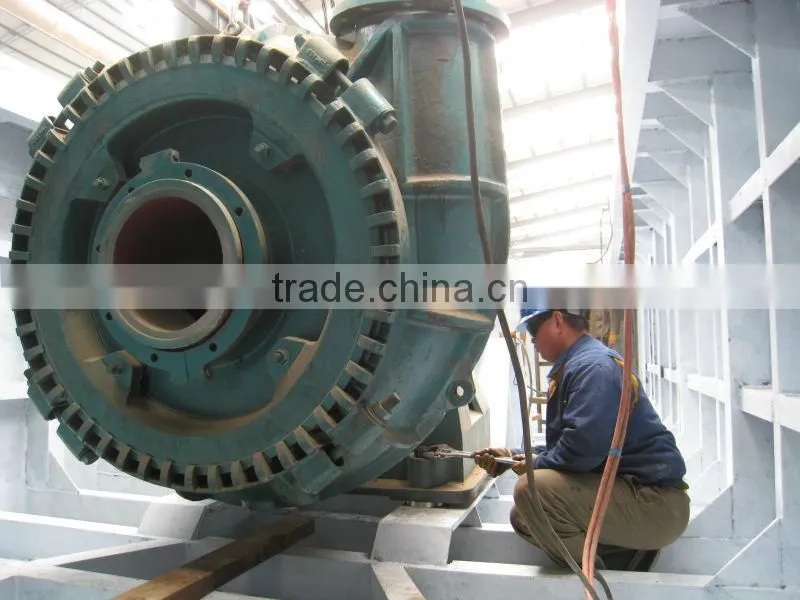

Cummins power and pump
The dredgers are equipped with world famous powerful Cummins engine, which are famous for its durability, lower oil consumption, standardized accessories and easy maintenance.
I need to know more about your local working condition in order to offer a best solution for your project. I would appreciate if you could provide information like the required productivity, dredging depth, discharge distance and so on. That would help to judge what kind of dredger works most efficiently in your environment.
If you want to know this machine's detailed description please get in touch with us.
We'll reply you as soon as your answers arrive
