Specifications
River small gold mining dredge1.Easy to Transportation
2.ISO9001,CCS
3.Low price high profits
4.Low invest quick return

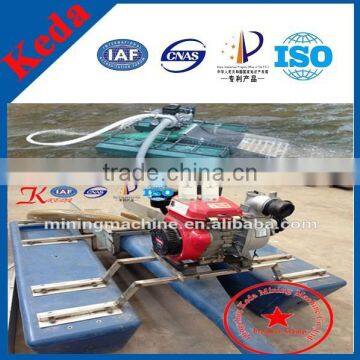

New condition small gold mining dredge for sale
1.Feature
1. It is widely used for working of gold mining in mini river channel.
2. Mini gold dredger with a gold chute for high recovery rate, powered by a famous engine with pump, float is made up of high strength and light weight plastic.
3. The equipment is small, light weight, easy to assemble, easy to transport.
2.Basic parameter
Our company can supply kinds of type dredger according to customer’s requires. Flowing is the detail parameters:
Small Gold Dredger | |||
Model | QFT3-2 | QFT4-3 | QFT5-3 |
Dimension | 2300*1500*1000mm | 2500*1500*1000mm | 2500*1500*1000mm |
Diesel | |||
Model | RZ170F | RZ178F | RZ186FA |
Power | 5hp | 7hp | 12hp |
Rotate speed | 3600rpm | 3600rpm | 3600rpm |
Fuel consumption | ≤284g/Kw·h | ≤283g/Kw·h | ≤280g/Kw·h |
Fuel capacity | 2.65L | 3.3L | 5.5L |
Pump | |||
Dimension(L*W*H) | 550*450*450mm | 550*470*450mm | 550*500*480mm |
Pump diameter | 50mm(2inch) | 80mm(3inch) | 100mm(4inch) |
Water flow | 33m³/h | 60m³/h | 80m³/h |
Head | 30m | 30m | 25m |
Dredging depth | 8m | 8m | 8m |
Work capacity | 6m³/h | 10m³/h | 15m³/h |
Gold chute | |||
Dimension(L*W) | 400*1500mm | 500*1700mm | 500*1700mm |
With gold felt | With gold felt | With gold felt | |
Float | |||
Dimension(L*W*H) | 1600*395*370 | 1600*395*370 | 1600*395*370 |
Suction pipe | 3inch | 4inch | 5inch |
3.Detail Introduce
The small gold dredger is the new portable gold mining equipment according to customer’s require.The unmatched performance of this new dredge system is designed for those who operate in extremely remote and challenging locations. It is popular for new and old customers.
Float

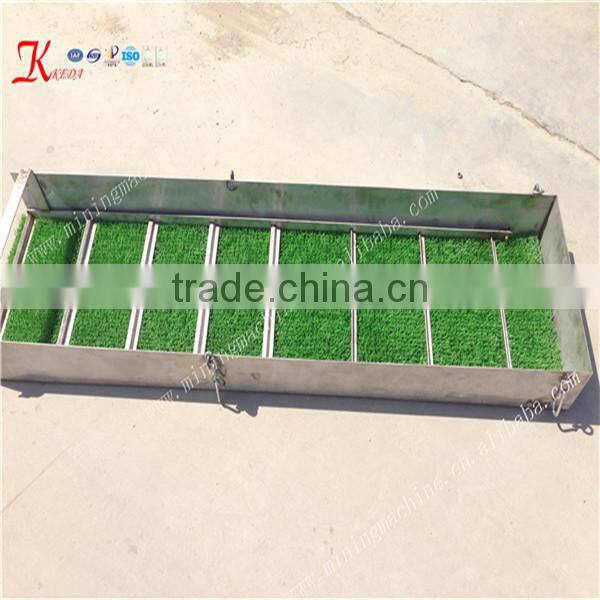

Gold chute with carpet
2.Within warranty period,we provide free repair if quality problems emerge.
3.Engerneers are avaliable to service oversea to assemble and test the machine according to the contract.
4.Free training of the first batch of operater proved, any question or problem about the products can be answered via online support, phone calls or on-sit support 24 hours.
Qingzhou Keda ore machinery Co.,LTD. is a modern and formal ore machine manufacturer,which is professional at producing all kinds of mining equipment with ISO9001:2008. The gold wash plant has obtained PATENT both in utility and design. We are the ONLY manufacturer has this patent in China.
The company is established in 2002 primitively, covers an area of more about 20,000 square meters and equipped with modern type workshops and office . Nice product comes from excellent teamwork. Currently there are 120 stafves, including 2 senior engineers, 5 engineers, 15 technicians and 60 technical workers. Our company are more normative in management, our engineers are more professional in design and manufacture, our service are more comprehensive and thoughtful, and our price are more competitive with the best quality.
The main products of our company :
There are so many customers from all over the world has visited our company and left with their ideal products. You are strongly invited to be here too, so you can learn more about our company and the product you need by your own sight.
In order to provide you with efficient & suitable quotation and assistance for you, could you kindly tell me the following information:
1) Output capacity(m3/h)
2) Max.dredging depth(m)
If you have any question about our products or company, please let us know, we will try our best to make you satisfied.
