Specifications
New condition Small machine gold digger1.Portable
2.Reliable structure,ISO9001
3.1 year warranty
4.Low invest quick return

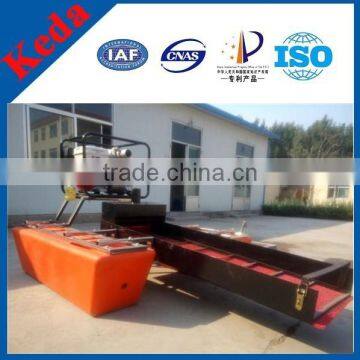

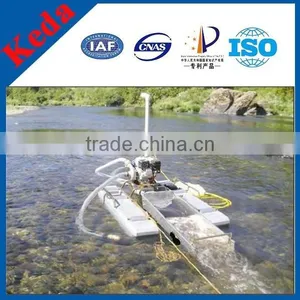

New condition Small machine gold digger for sale
1.Feature

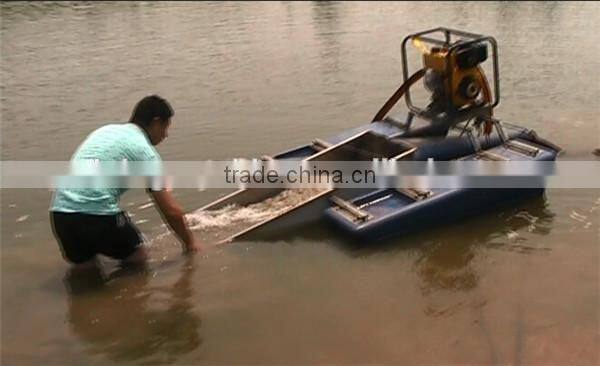

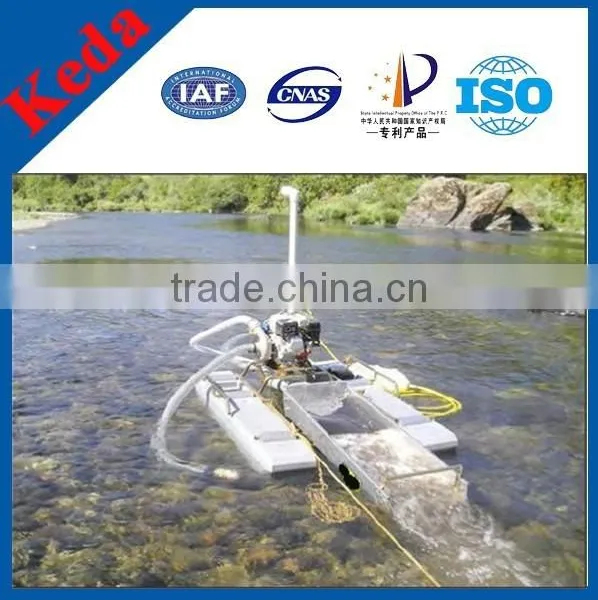

1. It is widely used for working of gold mining in mini river channel.

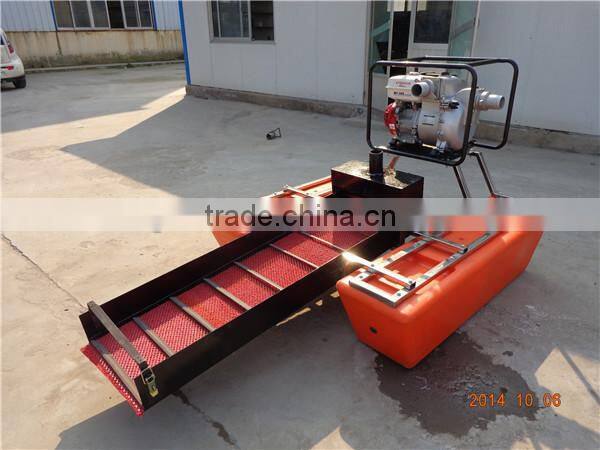

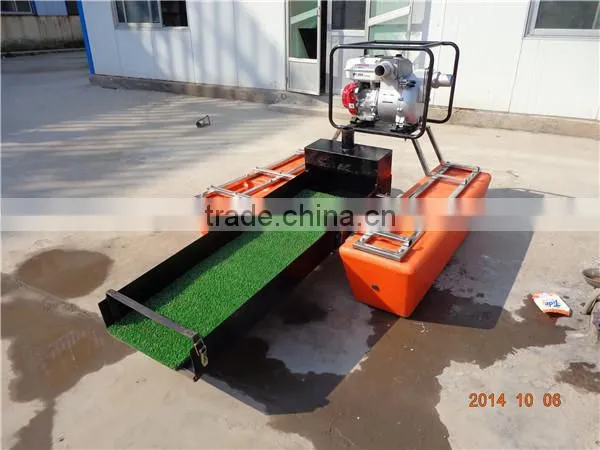

2. Mini gold dredger with a gold chute for high recovery rate, powered by a famous engine with pump, float is made up of high strength and light weight plastic.
3. The equipment is small, light weight, easy to assemble, easy to transport.
2.Basic parameter
Our company can supply kinds of type dredger according to customer’s requires. Flowing is the detail parameters:
Small Gold Dredger | |||
Model | QFT3-2 | QFT4-3 | QFT5-3 |
Dimension | 2300*1500*1000mm | 2500*1500*1000mm | 2500*1500*1000mm |
Diesel | |||
Model | RZ170F | RZ178F | RZ186FA |
Power | 5hp | 7hp | 12hp |
Rotate speed | 3600rpm | 3600rpm | 3600rpm |
Fuel consumption | ≤284g/Kw·h | ≤283g/Kw·h | ≤280g/Kw·h |
Fuel capacity | 2.65L | 3.3L | 5.5L |
Pump | |||
Dimension(L*W*H) | 550*450*450mm | 550*470*450mm | 550*500*480mm |
Pump diameter | 50mm(2inch) | 80mm(3inch) | 100mm(4inch) |
Water flow | 33m³/h | 60m³/h | 80m³/h |
Head | 30m | 30m | 25m |
Dredging depth | 8m | 8m | 8m |
Work capacity | 6m³/h | 10m³/h | 15m³/h |

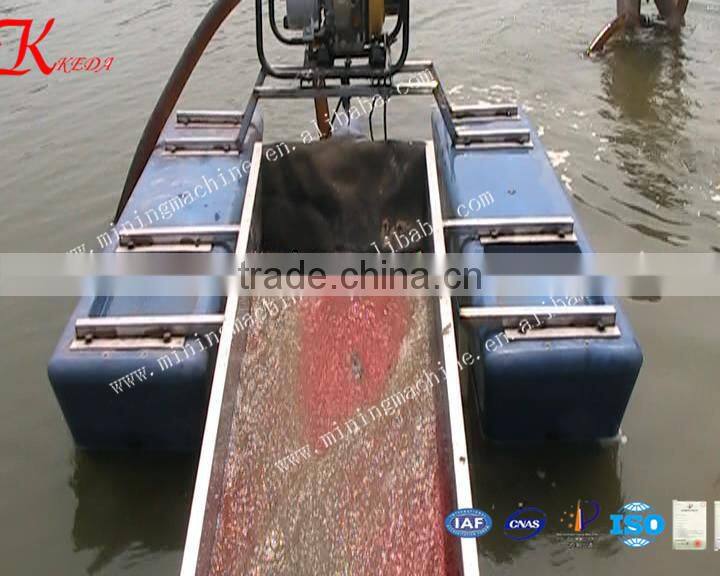

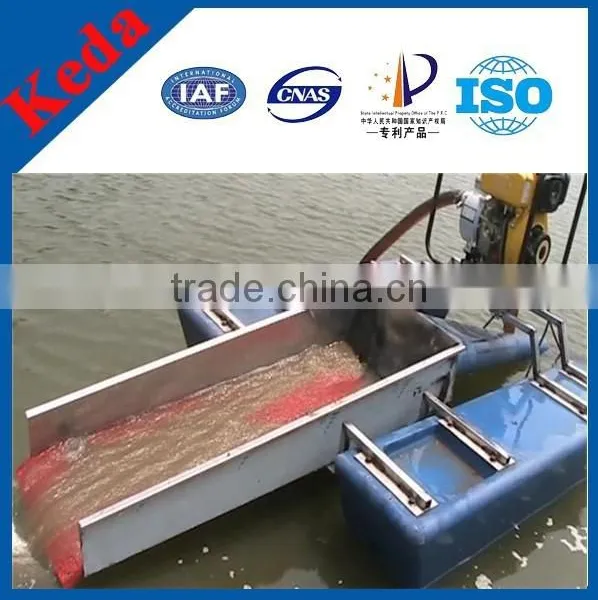

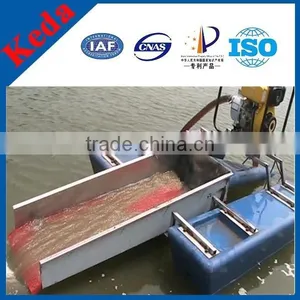

Gold chute | |||
Dimension(L*W) | 400*1500mm | 500*1700mm | 500*1700mm |
With gold felt | With gold felt | With gold felt | |
Float | |||
Dimension(L*W*H) | 1600*395*370 | 1600*395*370 | 1600*395*370 |
Suction pipe | 3inch | 4inch | 5inch |
3.Detail Introduce

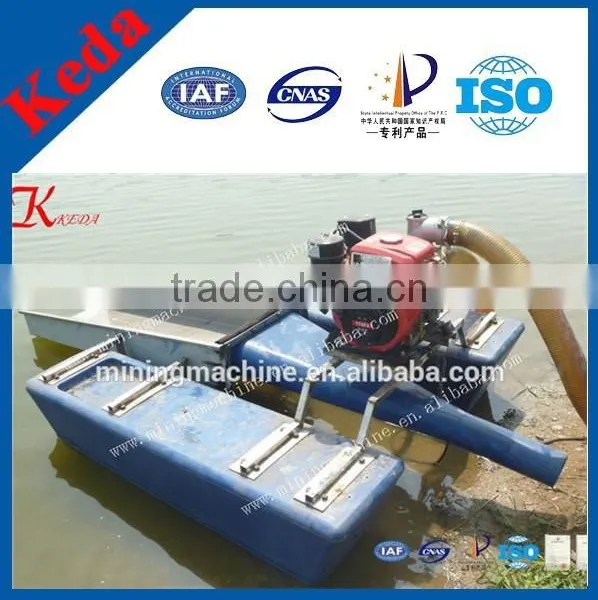

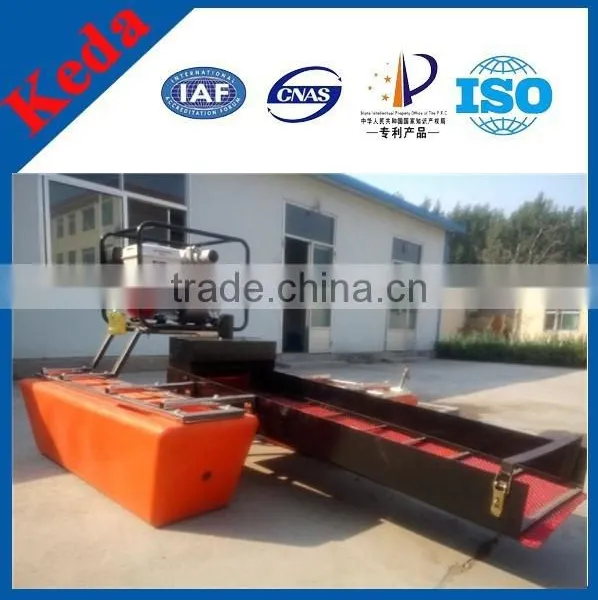

The small gold dredger is the new portable gold mining equipment according to customer’s require.The unmatched performance of this new dredge system is designed for those who operate in extremely remote and challenging locations. It is popular for new and old customers.

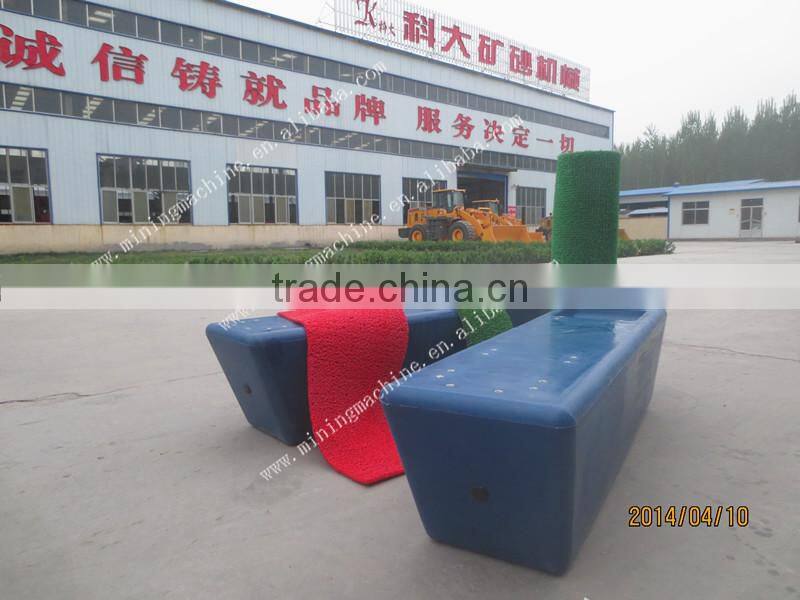

Float
2.Within warranty period,we provide free repair if quality problems emerge.
3.Engerneers are avaliable to service oversea to assemble and test the machine according to the contract.
4.Free training of the first batch of operater proved, any question or problem about the products can be answered via online support, phone calls or on-sit support 24 hours.
Qingzhou Keda ore machinery Co.,LTD. is a modern and formal ore machine manufacturer,which is professional at producing all kinds of mining equipment with ISO9001:2008. The gold wash plant has obtained PATENT both in utility and design. We are the ONLY manufacturer has this patent in China.
The company is established in 2002 primitively, covers an area of more about 20,000 square meters and equipped with modern type workshops and office . Nice product comes from excellent teamwork. Currently there are 120 stafves, including 2 senior engineers, 5 engineers, 15 technicians and 60 technical workers. Our company are more normative in management, our engineers are more professional in design and manufacture, our service are more comprehensive and thoughtful, and our price are more competitive with the best quality.
The main products of our company :
1 Gold wash plants series: the working capacity ranges from 5tons/h to 500tons/h, including wet gold wash plant used in place with water and dry gold washer used in place without water like in the desert. The gold wash plant has obtained PATENT both in utility and design. We are the ONLY manufacturer has this patent in China.
2 Dredgers series: dredgers for mining, sand production, reclamation construction, desilting, land reclamation and so on, including cutter suction dredger, jet suction dredger, bucket type dredger, aquatic weed harvester dredger, all kinds of gold dredgers.
3 Crusher series: including hammer crusher, impact crusher, Jaw crusher
7.Thank you for your interest
Could you tell me your situation and requires,such as:
1).The working capacity you want to get?
2).What's is the type that you have a interest.
It is appreciate that you can discuss it with me,hope i can assist you
8.Contact to me
June Ma
Qingzhou Keda Mining Machine Co,.Ltd.
E-mail:sales08(at)
Skype:kedamachinery08
Mob:0086-18353690657
If you want to know more,welcome to our company and contact to me,we will give you the best service.
Thanks for your browse!
