Beneficiation Small Gold Dredger Equipment
1.Feature
1. It is widely used for gold mining in mini river channel.
2.The gold chute is of high recovery rate, the gold dredger is powered by famous engine and pump, float is made up of high strength but light weight plastic.
3. The equipment is small, light weight, easy to assemble, easy to transport.
2.Introduction
The small gold dredger ship is a new type of portable gold mining equipment .The unmatched performance make it bacome the most suitable design for those who operate the dredger in extremely remote and challenging locations. It is popular for new and old customers.
3.Basic parameter
Our company can supply different models according to customer’s requirments. Flowing is the detail parameters:
Small Gold Dredger Ship | |||
Model | QFT3-2 | QFT4-3 | QFT5-3 |
Dimension | 2300*1500*1000mm | 2500*1500*1000mm | 2500*1500*1000mm |
Diesel | |||
Model | RZ170F | RZ178F | RZ186FA |
Power | 5hp | 7hp | 12hp |
Rotate speed | 3600rpm | 3600rpm | 3600rpm |
Fuel consumption | ≤284g/Kw·h | ≤283g/Kw·h | ≤280g/Kw·h |
Fuel capacity | 2.65L | 3.3L | 5.5L |
Pump | |||
Dimension(L*W*H) | 550*450*450mm | 550*470*450mm | 550*500*480mm |
Pump diameter | 50mm(2inch) | 80mm(3inch) | 100mm(4inch) |
Water flow | 33m³/h | 60m³/h | 80m³/h |
Head | 30m | 30m | 25m |
Dredging depth | 8m | 8m | 8m |
Work capacity | 6m³/h | 10m³/h | 15m³/h |
Gold chute | |||
Dimension(L*W) | 400*1500mm | 500*1700mm | 500*1700mm |
With gold felt | With gold felt | With gold felt | |
Float | |||
Dimension(L*W*H) | 1600*395*370 | 1600*395*370 | 1600*395*370 |
Suction pipe | 3inch | 4inch | 5inch |

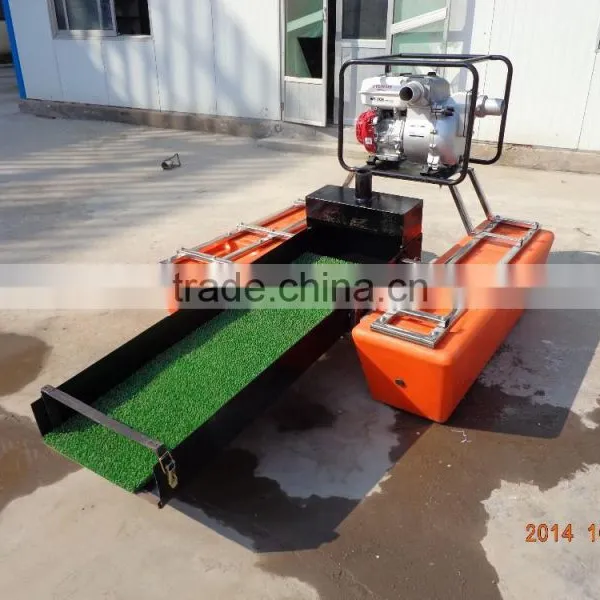

4.Small Gold Dredger Ship
1.Mining project consulting.
2.Testing sample in laboratory.
3.Providing whole production line equipments.
4.Dispatching engineer overseas guidance for equipments installation and testing.
5.Training your local first batch workers.
6.Help you to solve the problems during the equipment operation.
7.Spare parts provided.
1.We are a modern large-scale mineral processing equipment manufacturer devoting ourselves to engineering design, producing installation, commissioning and providing high quality after-sales service.
2.All our products have been certified by ISO9001 and many of our products have been exported to fifteen countries such as Ghana, Bangladesh, Sultan, Korea, USA, Russia and so on.
Recent Successfull Cases
1.Are you a manufacturer ?
Yes, we have our own factory.
2.what kind of dredger should I choose?
It depends on your working environment , the dredger will be designed according to your need.
3.Can you use an imported engine?
Yes, but the delievery time is much longer.
4.Can I visit your factory?
Yes, of course. We sincerely welcome you come and visit our factory if your time permits.
