Hydraulic spiral cutter head for cutter suction dredger
- 20 Set / Sets per Month
- Qingdao
- Credit Card PayPal
- 2021 Hot newest small 350 1000m3 Cutter Suction Dredger
- Hot Newest Sand Suction Dredging Boat Dredger for Sale Engineers Available to Service Machinery Overseas Customized Provided MAP
- Sand Dredging Machine 2021 Hot Newest Small 12 Inch Cutter Suction Dredger Engineers Available to Service Machinery Overseas MAP
- 2018 Hot newest small 1000m3 Sand Cutter Suction Boat
- Customized small 12 Inch cutter suction river dredging equipment
- 2022 Hot Newest Small 1200m3 Cutter Suction Dredger Manufacturer Sand Pump Suction Dredger Sand Dredging High Gold Recovery Rate
Product Details
Condition: | New | Type: | Cutter Suction Dredger | Power Type: | Diesel |
Dredging Depth: | 10 m | Draught: | 100 cm | Place of Origin: | Shandong, China |
Brand Name: | KeDa | Model Number: | KDJD | Dimension(L*W*H): | 650mm(inter dia) |
Weight: | 1t | Certification: | ISO 9001 CE SGS | Warranty: | 1 year warranty |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

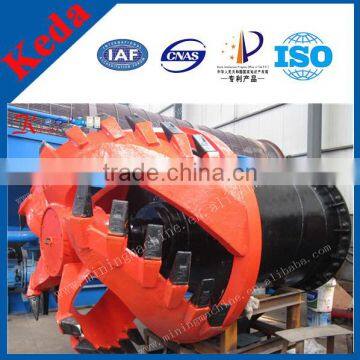

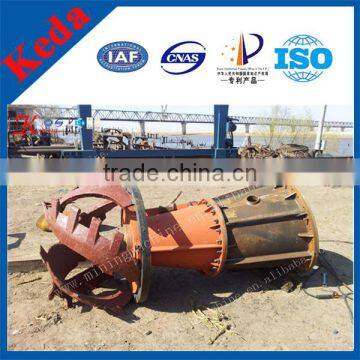

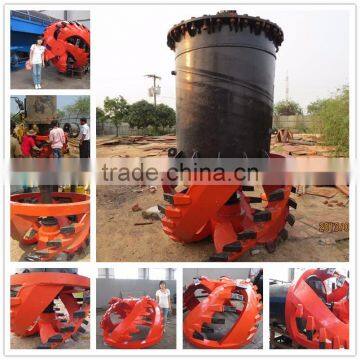

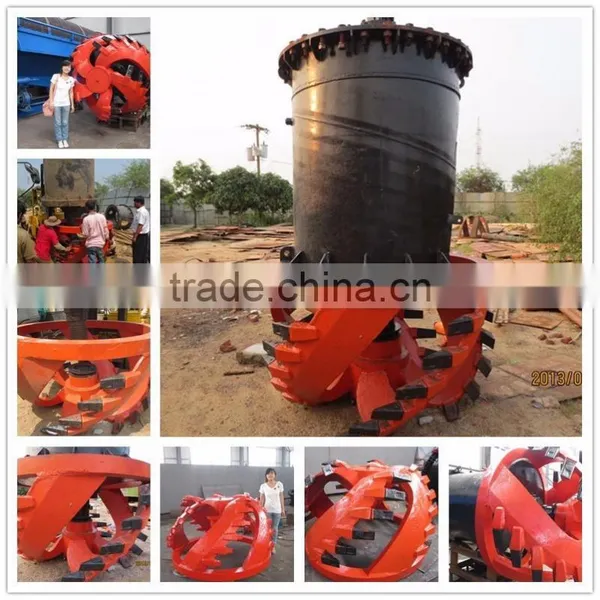

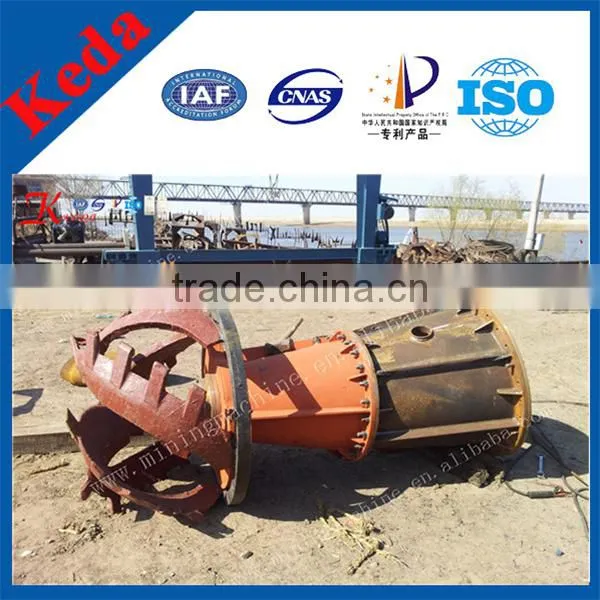

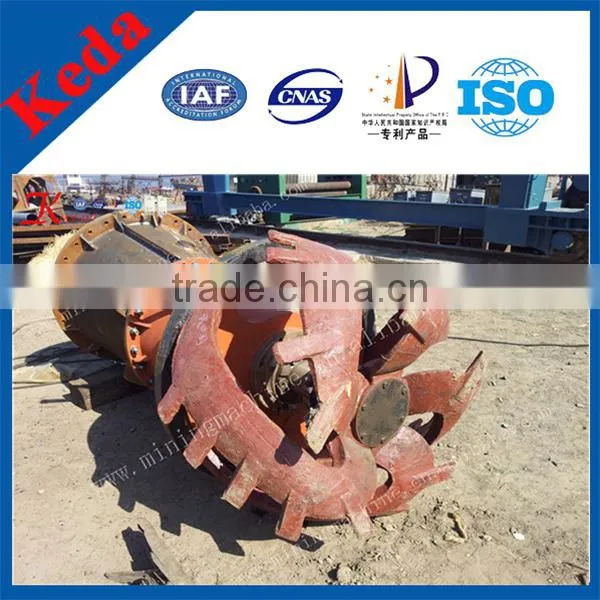

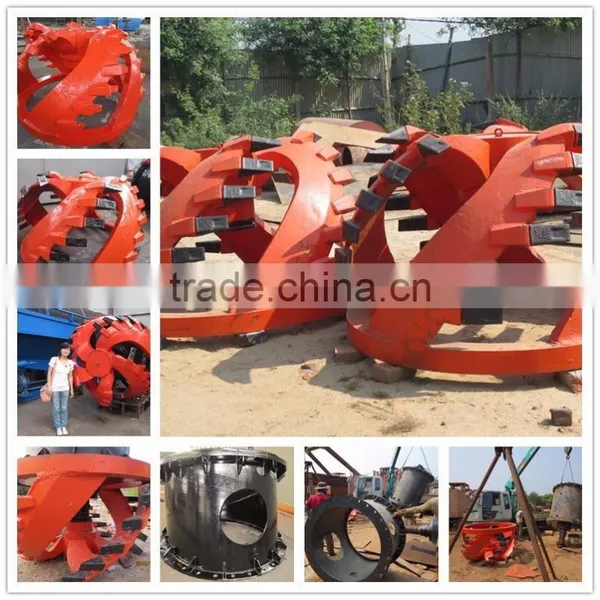

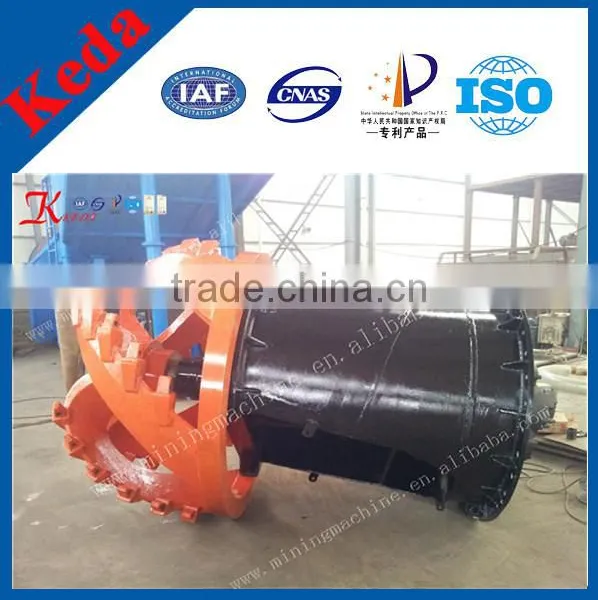

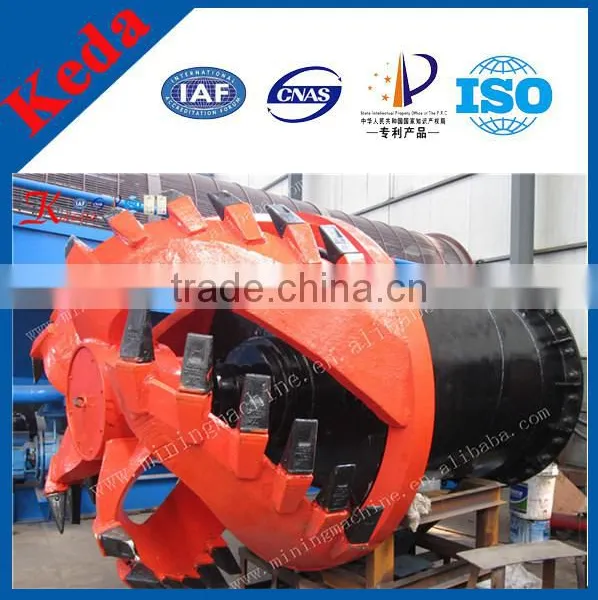

Hydraulic spiral cutter head for cutter suction dredger
1.Feature of Hydraulic spiral cutter head for cutter suction dredger
The cutter head is integrated within vessels to deliver high productivity and minimal downtime thanks to the profile, spacing and size of the arms, as well as the location, orientation and form of the teeth. In loose compacted soil, it makes better use of the available power, resulting in a higher output of dredged material thanks to its cylindrical shape and availability of more arms.
Special benefit include:
1.widely varying dimensions.
2.refined tooth and cutting edge design.
3.exceptional wear resistance.
petitive maintenance cost.
5.rapid delivery.
6.low cost per ton production.
7.simplified maintenance.
2.Basic parameters of Hydraulic spiral cutter head for cutter suction dredger
Cutter head | |||||||||
Basic Parameter | |||||||||
Model | Inner dia.mm | Blade | Speed(r/min) | Max.shaft power(KW) | Suction pipe dia.(mm) | Working capacity(m3/h) | Matchde pump water flow(m3/h) | ||
KDJD-65 | 650 | 5 | 0-34 | 15 | 150 | 80 | 360-450 | ||
KDJD-83 | 830 | 5 | 0-34 | 35 | 250-300 | 150 | 750-800 | ||
KDJD-96 | 955 | 5 | 0-35 | 62 | 350-400 | 350 | 1200-1400 | ||
KDJD-110 | 1100 | 5 | 0-30 | 80 | 400 | 400 | 1500-2000 | ||
KDJD-133 | 1330 | 5 | 0-30 | 101 | 400-450 | 650 | 2000-2500 | ||
KDJD-155 | 1550 | 5 | 0-30 | 130 | 500-550 | 900 | 3000-3500 | ||
KDJD-175A | 1750 | 5 | 0-32 | 251 | 660-650 | 1200 | 4000-4500 | ||
KDJD-175A | 1830 | 5 | 0-30 | 375 | 660-650 | 1600 | 5000-6000 |
3. Hydraulic spiral cutter head for cutter suction dredger
Winch
It can control the cutter head
Hydraulic Winch | ||||||||
Series | Model | First layer | Total Displacement (ml/r) | Difference of working pressures(Mpa) | Steel wire diameter (mm) | Drum Capacity (mm) | Weight (kg) | |
Pull Force(KN ) | Rope Speed(m/min) | |||||||
KDJC3 | KDJ3-30-65-15 | 30 | 0-35 | 2455 | 14.5 | 15 | 65 | 300 |
KDJ3-40-60-16 | 40 | 0-35 | 3267 | 14.5 | 16 | 60 | 300 | |
KDJC4 | KDJ4-50-87-20 | 50 | 0-40 | 4961 | 13.6 | 20 | 87 | 680 |
KDJ4-60-68-21.5 | 60 | 0-40 | 6138 | 14.2 | 21.5 | 68 | 680 | |
KDJC5 | KDJ5-80-100-24 | 80 | 0-40 | 9983 | 14.5 | 24 | 100 | 1200 |
KDJ5-100-90-28 | 100 | 0-40 | 12468 | 14.5 | 28 | 90 | 1200 | |
KDJC6 | KDJ6-120-170-30H | 120 | 0-30 | 16714 | 17 | 30 | 170 | 2300 |
KDJ6-150-153-34H | 150 | 0-30 | 19041 | 18 | 34 | 153 | 2300 | |
KDJ6-180-140-38H | 180 | 0-30 | 22852 | 18 | 38 | 140 | 2300 |
Pump and engine
It can offer the power for cutter head
Qingzhou Keda ore machinery Co.,LTD. is a modern and formal ore machine manufacturer,which is professional at producing all kinds of mining equipment with ISO9001:2008.
The company is established in 2002 primitively, covers an area of more about 20,000 square meters and equipped with modern type workshops and office . Nice product comes from excellent teamwork. Currently there are 120 stafves, including 2 senior engineers, 5 engineers, 15 technicians and 60 technical workers. Our company are more normative in management, our engineers are more professional in design and manufacture, our service are more comprehensive and thoughtful, and our price are more competitive with the best quality.
Way of Packing
* FLC&LCL Export standard container 20/40 GP.
* Steel support & iron sheet sea- worthy package.
* Load: export software scientific loading work
Transportation
* By sea freight.
* MSK/MSC/APL/EMC/WANHAI/KLINE
* Air delivery services
* We will remind you before boat arrives.
Payment Terms
* Usually,less than USD10000,T/T100% to reduce bank charge before producing.
* More than USD10000,T/T50%as deposit, T/T50% before shipping.
* We take pictures of the finished products and send them to the clients before delivery.
There are so many customers from all over the world has visited our company and left with their ideal products. You are strongly invited to be here too, so you can learn more about our company and the product you need by your own sight.
If you have any quuestion about our company or our Dredge cutter head, please feel free to contact with me, and i will try my best to make you satisfied.
Fergie Wu
Qingzhou Keda Mining Machine Co,.Ltd.
E-mail:sales08(at)
Skype:kedamachinery08
Tel/Fax:0086-536-2105419
Mob:0086-18353690657
Thanks for your browse!
