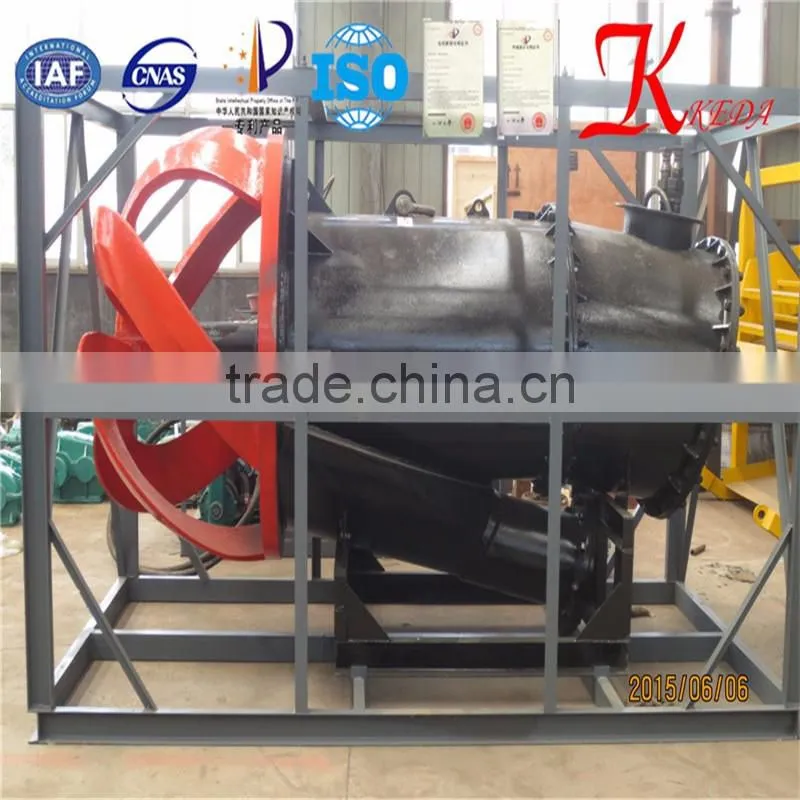

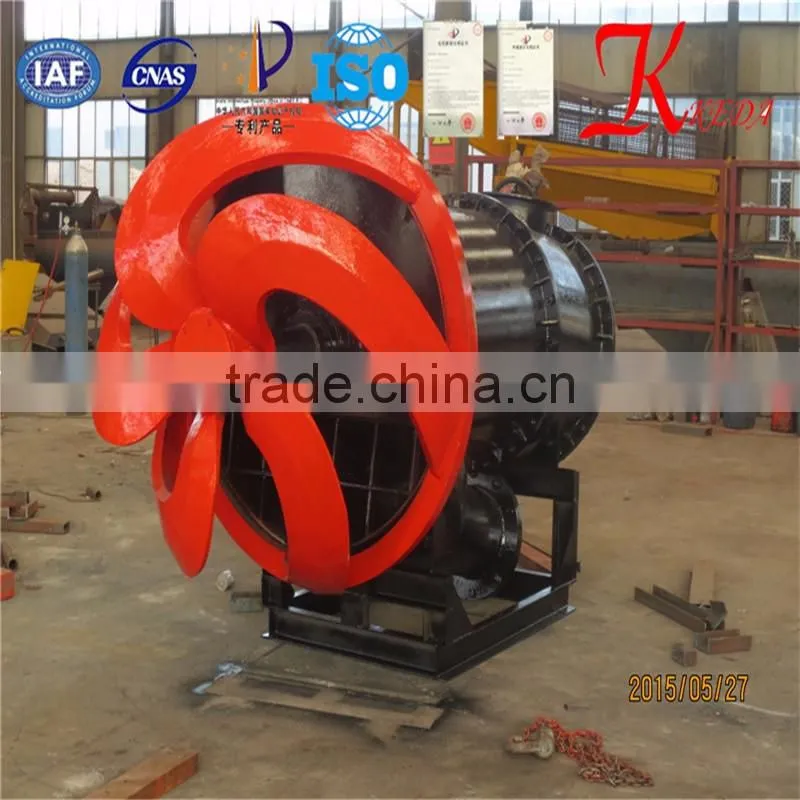

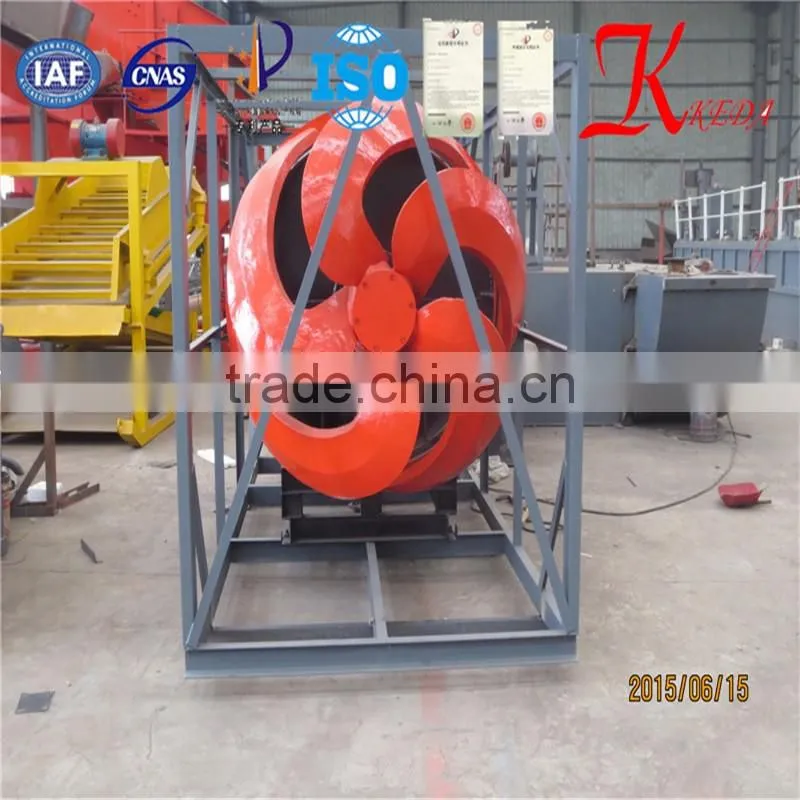

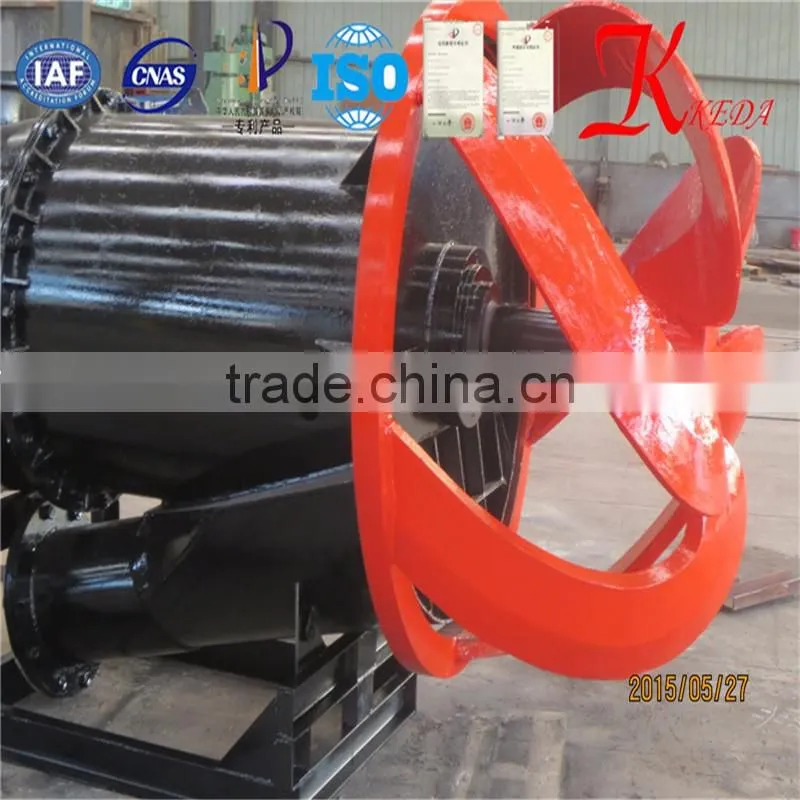

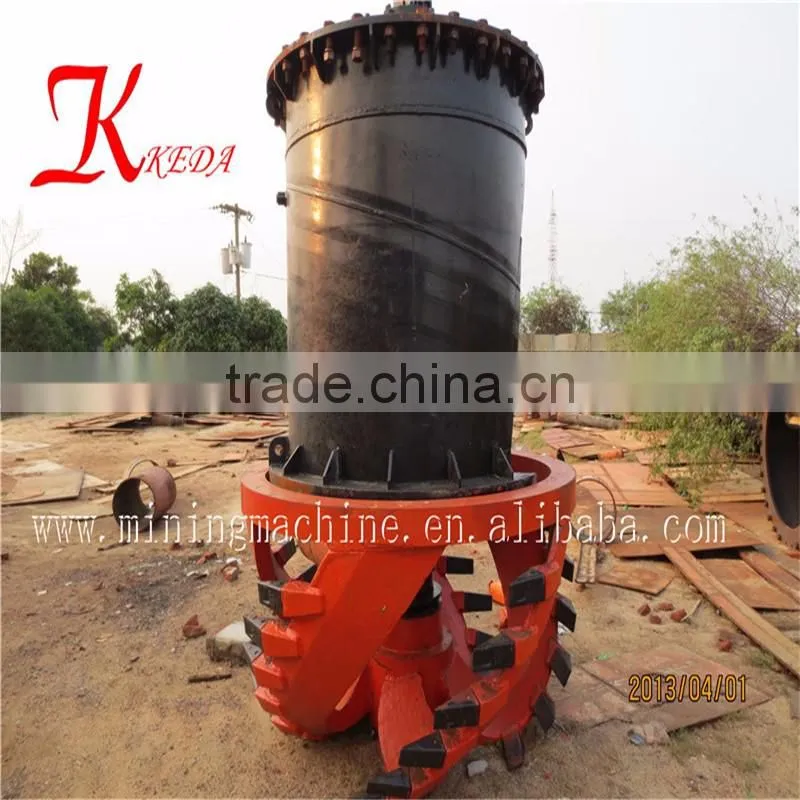

Cutter Suction Sand Dredger Cutter Head
Feature:
1). Dredge Max.15m deep
2). Water flow:800-8000m3/h
3). O.D 650-1800mm
4). Famous driven hydraulic motor
5). Exported to many countries including Australia, Morrocco, Iran, Segenal, Bangladesh,Romania etc
Specification:
Model | Inner diameter (mm) | Blades number | Rotating speed (r/min) | Output torque (KN-m) | Max axis power(Kw) | Suction pipe diameter(mm) | Mud cutting capacity(m3/h) | Sand pump mixture output(m3/h) |
KDJD-83 | 830 | 5 | 0-34 | 9.7 | 35 | 250-300 | 200 | 800 |
KDJD-96A | 955 | 5 | 0-35 | 17 | 62 | 350-400 | 350 | 1200-1400 |
KDJD-96B | 955 | 5 | 0-30 | 21 | 66 | 350-400 | 350 | 1200-1400 |
KDJD-133 | 1330 | 5 | 0-30 | 32 | 101 | 400-450 | 650 | 2000-2500 |
KDJD-155 | 1550 | 5 | 0-30 | 56 | 176 | 500-550 | 900 | 3000-3500 |
KDJD-175A | 1750 | 5 | 0-32 | 75 | 251 | 600-650 | 1200 | 4000-4500 |
KDJD-175B | 1750 | 5 | 0-30 | 84 | 264 | 600-650 | 1200 | 4500-5000 |
KDJD-175C | 1750 | 5 | 0-24 | 90 | 226 | 600-650 | 1200 | 4500-5000 |
KDJD-183 | 1830 | 5 | 0-30 | 119 | 375 | 600-650 | 1600 | 5000-6000 |
KDJD-200 | 2000 | 5 | 0-30 | 175 | 550 | 650-700 | 1800 | 6000-6500 |
KDJD-215 | 2150 | 6 | 0-30 | 180 | 750 | 700-750 | 2000 | 6500-8000 |
KDJD-226 | 2260 | 6 | 0-30 | 286 | 900 | 800-850 | 3000 | 8500-11000 |
KDJD-233 | 2330 | 6 | 0-30 | 350 | 1100 | 850-900 | 4000 | 12000-15000 |
KDJD-240 | 2400 | 6 | 0-30 | 446 | 1400 | 900-950 | 4500 | 14000-16000 |
FAQ:
1.—What is the outer diameter of the cutter head?
2.--Do you need hydraulic motor along with the cutter head or only the bare cutter head please?
3.--Is your cutter frame round or square?
4.--What is the suction pipe diameter ?
5.—Will dredge sand or mud ?
1.--The shipyard will provide 12-months for the quality of the diesel engines, generators, gear boxes, hydraulic system, control system for free.
-- Longlife warranty with charging.
--Wearing parts are not included.
2.---24hours after sales service.
3.---Engineer is available to go aboard to conduct the installation and train operators
4.---We have experienced and qualified technicists and engineers who can design rational and feasible solutions according to clients’ requirements and the working condition.
---Qingzhou Keda Mining Machine Co. Ltd. is a professional machinery manufacturer.
---Our main fields are cutter suction dredger, water plant harvester, gold dredger, gold wash trommel, sand equipment of pumping, separating, washing and making.
---We, Qingzhou Keda Machinery, devote ourselves to the production and sale of a dozen of series products and their spare parts.
---Exported to more than 50 countries and area.such as the America, Argentina, Suriname, Guinea, Ghana, Sierra Leone, Sudan, Ecuador, Philippines, Indonesia, Burma, Thailand, India, Russia etc. more than 50 countries.
---Our company attaches great importance to the development of scientific research. We have firstly passed the ISO9001 quality system certification, the enterprise qualification certification of dredger building and kinds of national patents
------Target: To be honest and adhering client-first is our service concept. To make first-class quality and service is our brand goal. To take clients as the center, strive for survival by quality and seek development by innovation is our enterprise tenet. We provide high quality products and faultless service. We would like to invite you to create a bright future together.
Our Product Video WEBSITE
1. https://youtu.be/uIuRcg6Syxs
2. /watch?v=WVE4MMfvnIQ
--Cutter suction dredger working video
3. /watch?v=i1F_iauA6Q4
--Portable gold dredger working video
Contact Information:
| Qingzhou Keda Mining Machine Co.,Ltd. | ||
| Add: Mihe Industry Park, Qingzhou City, Shandong Province, PRC. | ||
| Contact Person | Lily Su | |
| MP/whatsapp | +86 13793620699 | |
| Tel/Fax | +86 536 2105419 | |
| sales01(at) | ||
| Skype | kedamachinery01 | |
| +86 13793620699 | ||
