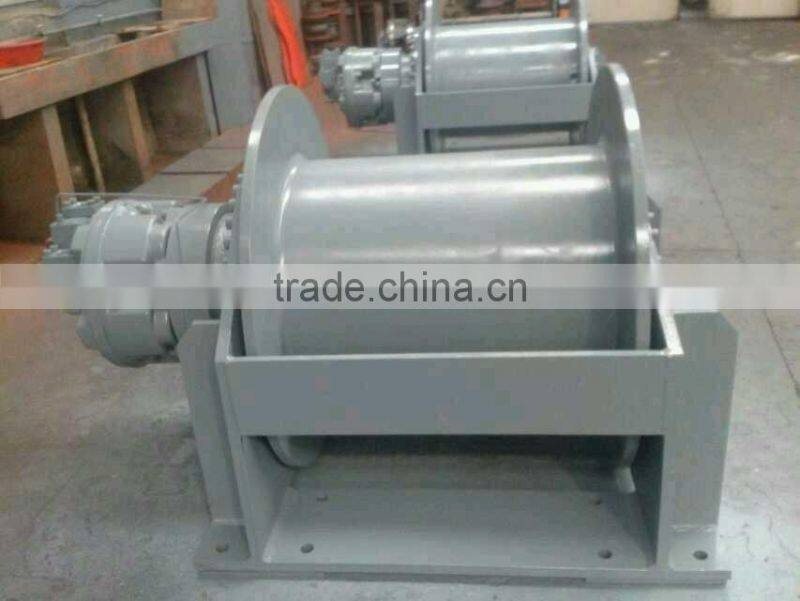

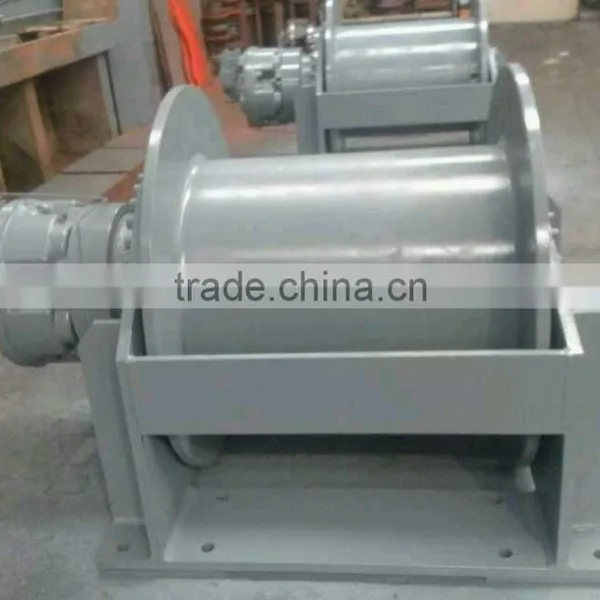

Hydraulic Cutter Suction Dredger Winch For Sale

US$ 5,000 - 10,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Other, Cutter Suction Dredger Winch

Power Type:

Diesel

Qingzhou Keda Mining Machine Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Other, Cutter Suction Dredger Winch

Power Type Diesel

Place of Origin Shandong, China

Brand Name KD

Model Number KDJC

Weight 40t,300 kg

Certification ISO9001

Warranty 1 year warranty

After-sales Service Provided Engineers available to service machinery overseas

Specifications

Winch
1.Pressure:14Mpa-16MPa
2.Pull:2tons-15tons
3.Rope speed:0-40m/min
4.ISO9001

Hydraulic Cutter Suction Dredger

Winch For Sale

1.Feature

1)Self-lock device to ensure the safety

2)Easily operation with little efforts

3)Handle adjustment is quick and simple

4)One year guarantee

2.Parameter

Hydraulic Winch
Series	Model	First layer		Total Displacement (ml/r)	Difference of working pressures(Mpa)	Steel wire diameter (mm)	Drum Capacity (mm)	Weight (kg)
Series	Model	Pull Force(KN )	Rope Speed(m/min)	Total Displacement (ml/r)	Difference of working pressures(Mpa)	Steel wire diameter (mm)	Drum Capacity (mm)	Weight (kg)
KDJC3	KDJ3-30-65-15	30	0-35	2455	14.5	15	65	300
KDJC3	KDJ3-40-60-16	40	0-35	3267	14.5	16	60	300
KDJC4	KDJ4-50-87-20	50	0-40	4961	13.6	20	87	680
KDJC4	KDJ4-60-68-21.5	60	0-40	6138	14.2	21.5	68	680
KDJC5	KDJ5-80-100-24	80	0-40	9983	14.5	24	100	1200
KDJC5	KDJ5-100-90-28	100	0-40	12468	14.5	28	90	1200
KDJC6	KDJ6-120-170-30H	120	0-30	16714	17	30	170	2300
	KDJ6-150-153-34H	150	0-30	19041	18	34	153	2300
	KDJ6-180-140-38H	180	0-30	22852	18	38	140	2300
